Wall Drilling And Bracket Fixing

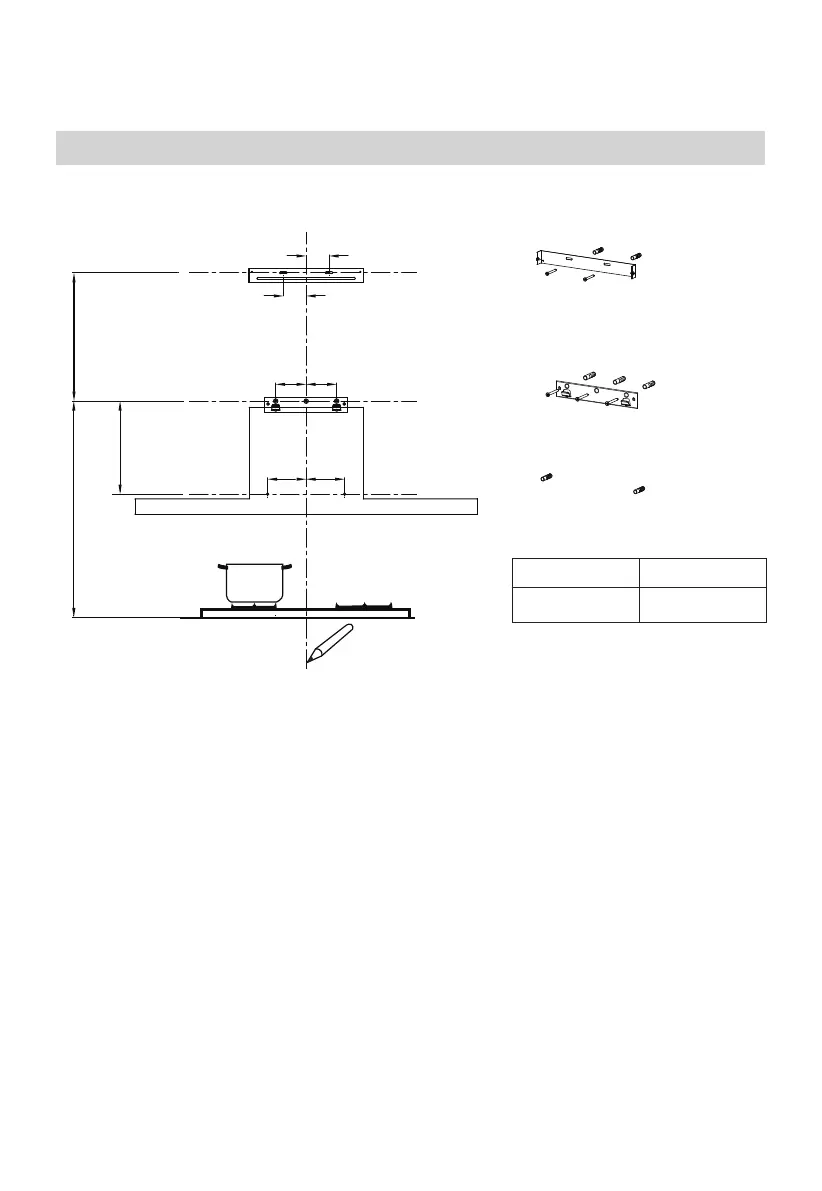

As a first step, proceed with the following drawings:
●
●
●
●
A vertical line up to the ceiling or up to the upper limit, at the center of the area in
which the hood is to be fitted.
A horizontal line A at 38.19" – 42.13" above the cooker top.
A horizontal line B at a X above the horizontal line A.
A horizontal line C at a 9.57" below the horizontal line A .
11
PRODUCT INSTALLATION
3.94" 3.94"
(3)
Vertical reference line
38.19" - 42.13" X
B
2.36"
2.36"
3.15" 3.15"
（1）
A
C
9.57"
Chimney
X
6.3"-19.69"15.75"+15.35"
unit：inch
