Using a wire crimper, crimp u-lugs on
the ends.
d.
NOTE: When connecting the wires, strictly
follow the wiring diagram found inside the
electrical box cover.

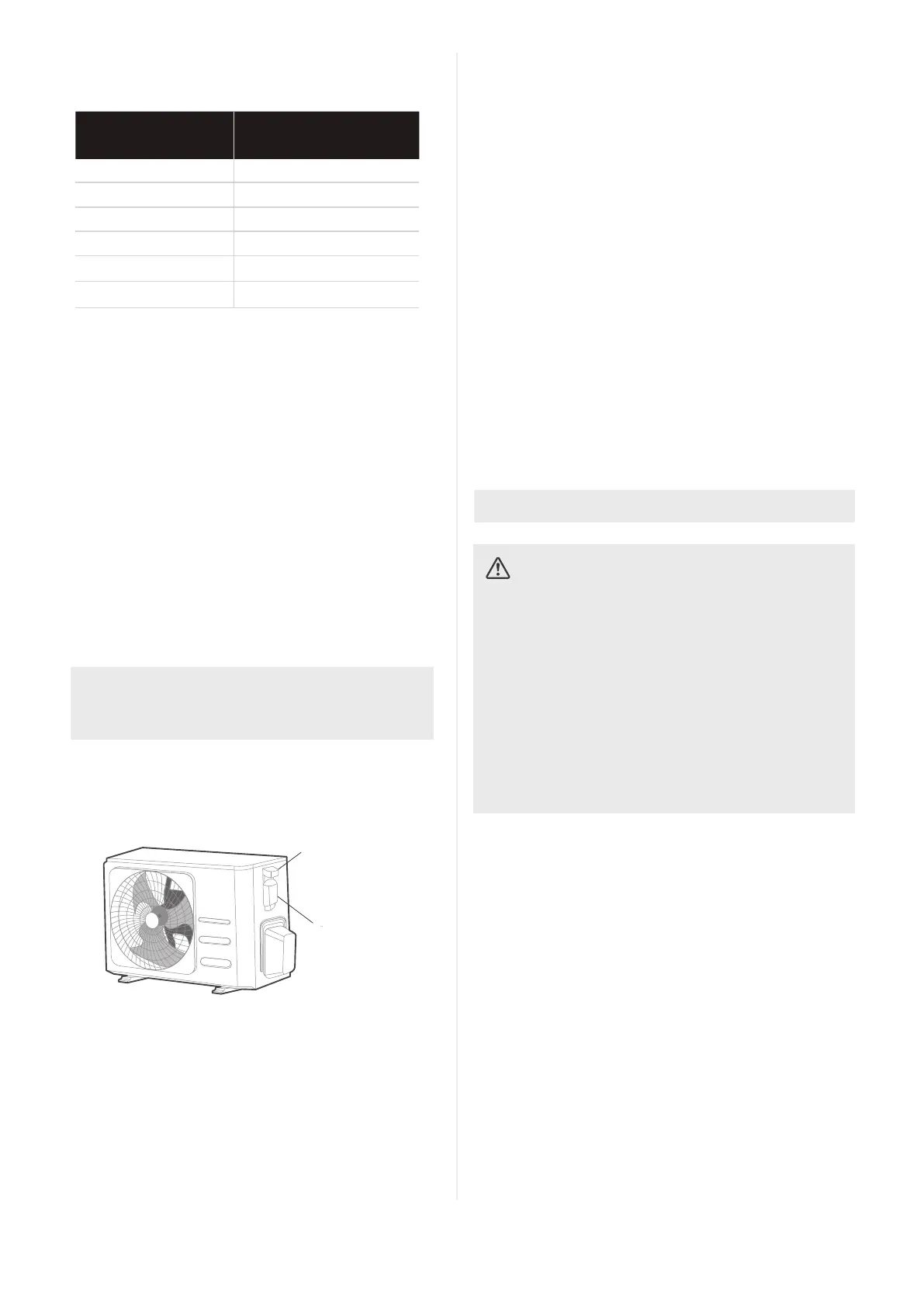

Remove the electric cover of the outdoor
unit. If there is no cover on the outdoor
unit, take o the bolts from the maintenance
boardand remove the protection board.
3.
2.
Connect the u-lugs to the terminals
Match the wire colors/labels with the labels
on the terminal block. Firmly screw the u-lug
of each wire to its corresponding terminal.
4. Clamp down the cable with the cable clamp.
5. Insulate unused wires with electrical tape.
Keep them away from any electrical or metal
parts.
6. Reinstall the cover of the electric control
box.
Cover
Screw
Minimum Cross-Sectional Area of
Power and Signal Cables-For reference
(Not applicable for North America)
Rated Current of
Appliance (A)
Nominal Cross-Sectional
Area (mm2)
> 3 and
≤
6 0.75
> 6 and
≤
10 1
> 10 and
≤
16 1.5
> 16 and
≤
25 2.5
> 25 and
≤
32 4
> 32 and
≤
40 6
b. Using wire strippers, strip the rubber
jacketfrom both ends of the signal cable
to reveal approximately 15cm (5.9”) of
wire.
c.
Strip the insulation from the ends.
CHOOSE THE RIGHT CABLE SIZE
The size of the power supply cable, signal
cable, fuse, and switch needed is determined
by the maximum current of the unit. The
maximum current is indicated on the nameplate
located on the side panel of the unit. Refer to
this nameplate to choose the right cable, fuse,
or switch.
NOTE: In North America, please choose the
right cable size according to the Minimum
Circuit Ampacity indicated on the nameplate
of the unit.
Wiring Figure
Harmonic declaration
"The equipment M4OB-36HFN8-Q complies with
IEC 61000-3-12 provided that the shortcircuit
power Ssc is greater than or equal to 4787737.5
at the interface point between the user’s supply
and the public system. It is the responsibility of
the installer or user of the equipment to ensure,
by consultation with the distribution network
operator if necessary, that the equipment is
connected only to a supply with a short-circuit
power Ssc greater than or equal to 4787737.5."
"The equipment M5OD-42HFN8-Q complies
with IEC 61000-3-12 provided that the
shortcircuit power Ssc is greater than or equal to
3190042.5 at the interface point between the
user’s supply and the public system. It is the
responsibility of the installer or user of the
equipment to ensure, by consultation with the
distribution network operator if necessary, that
the equipment is connected only to a supply with
a shortcircuit power Ssc greater than or equal
to 3190042.5."
CAUTION
Connect the connective cables to the terminals,
as identified, with their matching numbers on
the terminal block of the indoor and outdoor
units. For example, Terminal L1(A) of the
outdoor unit must connect with terminal L1/1
on the indoor unit. The outdoor unit can match
dierent types of indoor unit, the numbers on
the terminal block of the indoor unit may be
slightly dierent. Please pay special attention
while connecting the wire.
