CEILING
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
7

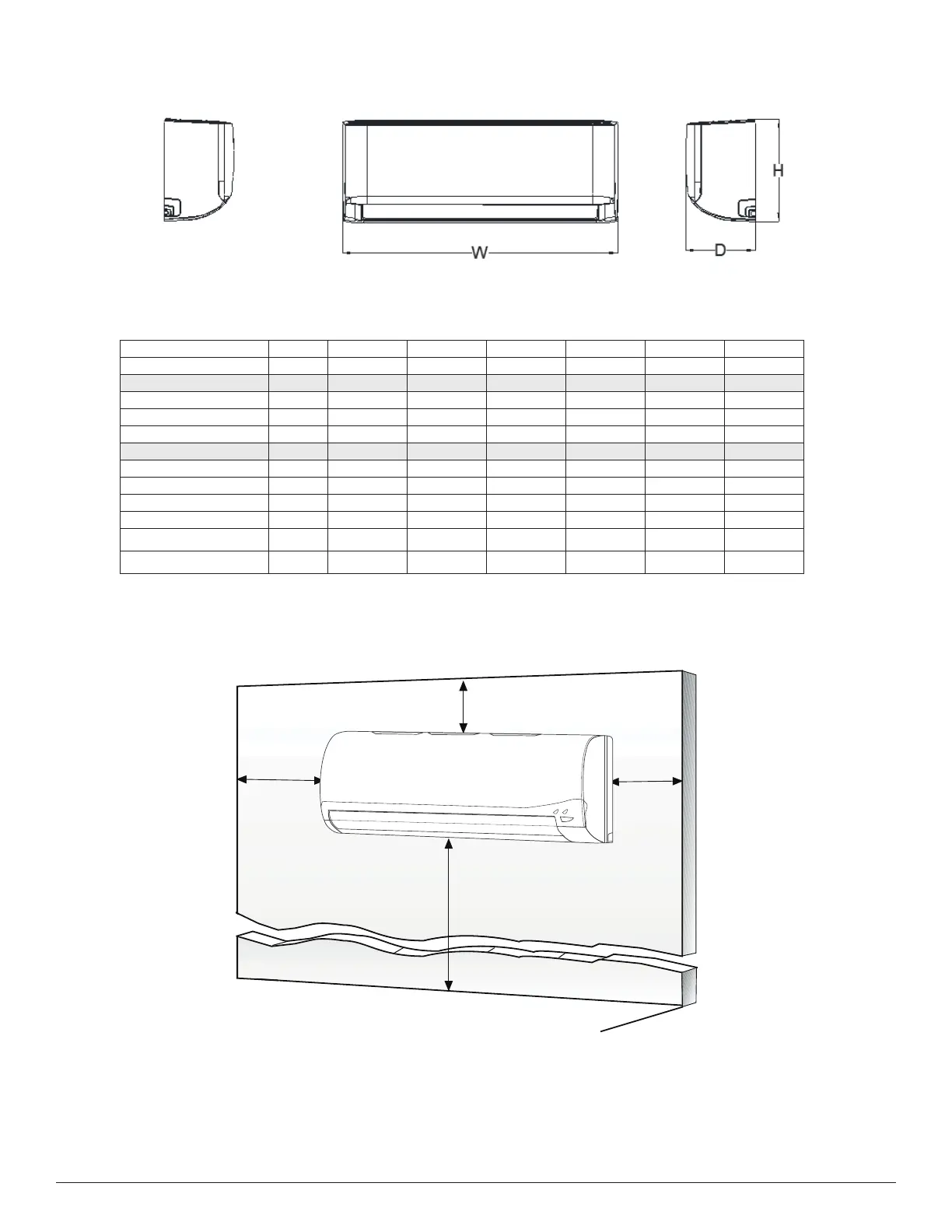

DIMENSIONS
Fig. 4 — Dimensions
Table 5 — Dimensions
CLEARANCES
Fig. 5 — Unit Clearances
NOTE: The top clearance recommended for proper return airflow is 5.9in (15cm). Reduction of this clearance may decrease unit
performance. This may be reduced to 3.2in (80mm) as long as the right and left clearances are achieved.
HIGH WALL UNIT SIZE 9K 12K 9K 12K 18K 24K
(VOLTAGE) (115V) (115V) (208/230V) (208/230V) (208/230V) (208/230V)
DIMENSIONS
Height (H) In/ (mm) 11.5(292) 11.61(295) 11.5(292) 11.61(295) 12.64(321) 13.27(337)
Width (W) In/ (mm) 28.7(729) 31.57(802) 28.7(729) 31.57(802) 38.23(971) 42.60(1082)
Depth (D) In/ (mm) 7.87(200) 7.87(200) 7.87(200) 7.87(200) 8.98(228) 9.21(234)
PACKING
Height In/ (mm) 14.76(375) 14.96(380) 14.76(375) 14.96(380) 15.94(405) 12.40(315)
Width In/ (mm) 31.1(790) 34.45(875) 31.1(790) 34.45(875) 41.14(1045) 45.47(1155)
Depth In/ (mm) 10.63(270) 11.22(285) 10.63(270) 11.22(285) 12.01(305) 16.34(415)
Thickness In/ (mm) 0.295(7.5) 0.295(7.5) 0.295(7.5) 0.295(7.5) 0.295(7.5) 0.295(7.5)
Weight - Gross lbs. (kg) 22.71(10.3) 24.03(10.9) 22.49(10.2) 24.03(10.9) 31.75(14.4) 38.14(17.3)
Weight - Net lbs. (kg) 17.64(8.0) 18.52(8.4) 17.64(8.0) 18.74(8.5) 24.47(11.1) 29.98(13.6)
6
in )
min.
5
in
(127mm)
min.
6 ft
5
in
(127mm)
min.
(1.8m)
FLOOR
(152mm
