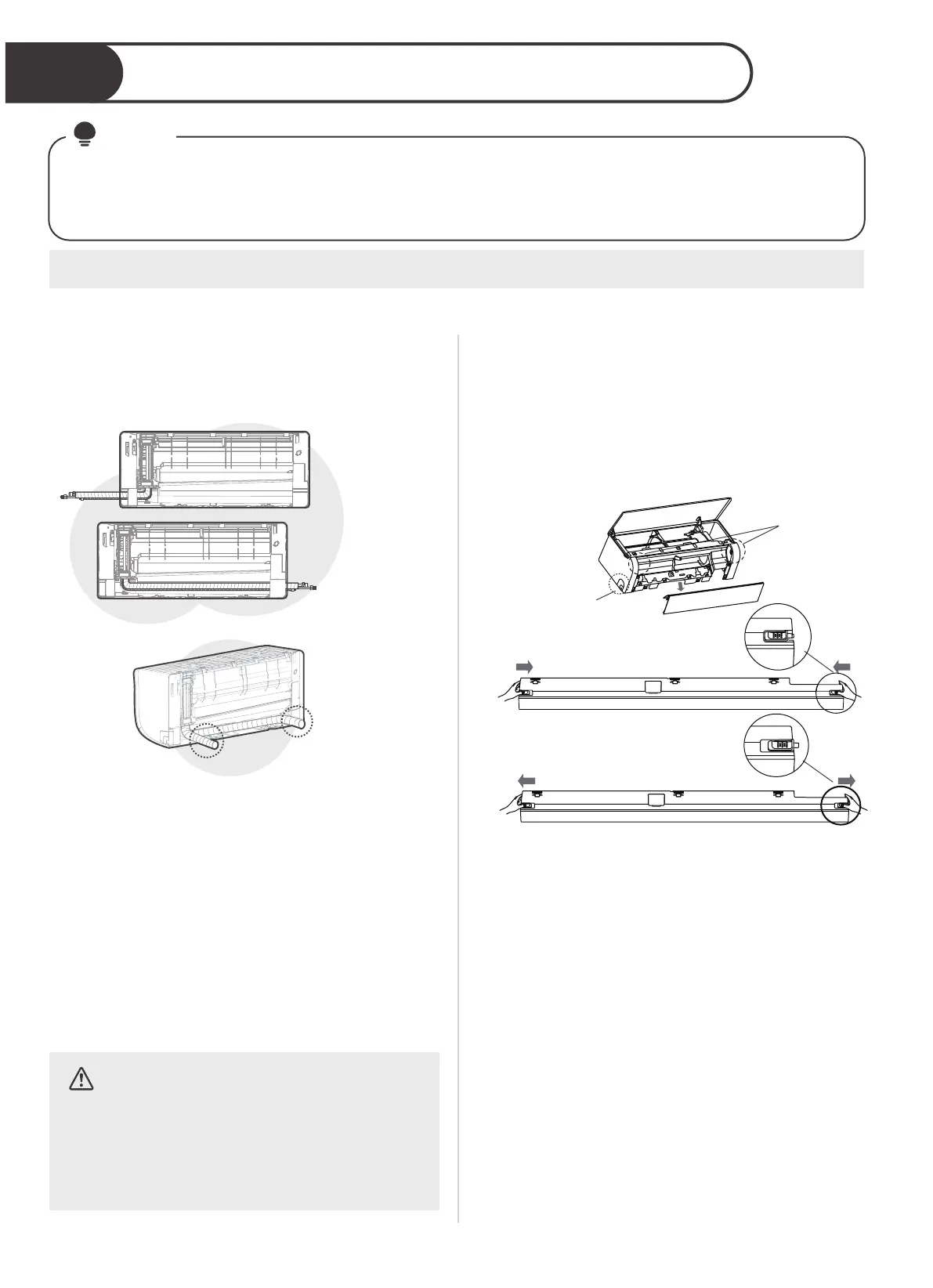

Install refrigerant pipe & drain hose
3
Four sides to exit the piping
CAUTION
Be extremely careful not to dent or
damage the piping while bending
them away from the unit. Any dents
in the piping will aect the unit’s
performance.
NOTE
Left-hand
side
Left rear
Right rear
Right-hand
side
2. If the wall hole is behind the unit, keep the
knock-out panel in place. If the wall hole is to
the side of the indoor unit, remove the plastic
knock-out panel from that side of the unit. Use
pliers or scissors if the plastic panel is too
dicult to remove by hand.
3. Groove has been made in the knock-out
panel in order to cut it conveniently. The
size of the slot is determined by the diameter
of piping.
Knock-out Panel
on the left & right
side
The refrigerant piping is inside an insulating sleeve attached to the back of the unit. You must prepare
the piping before passing it through the hole in the wall. Refer to the Refrigerant Piping connection
section of this manual for detailed instructions on pipe flaring and flare torque requirements,
technique, etc.
Based on the position of the wall hole relative
to the mounting plate, choose the side from
which the piping will exit the unit. You have four
options for the exit direction of the piping.
When choose Left-hand side or Right-hand
side piping, please make sure that the pipes
come out horizontally so as not to aect the
lower frame installation.
NOTE ON PIPING CONNECTING
In some locations of US, a conduit tube must be
used to connect the cable. To ensure an enough
space for the pipes running and the machine is
against the wall after installation, It is
recommended to attach the drain hose to the
right-hand side (when you’re facing the back of
the unit).
1. Open and lift the front panel, use your thumb
to pull the latches on the direction indicated
by the arrows in the picture to release the latches
on both sides of the frame, and then remove the
bottom frame. When reinstalling the bottom
frame, push the latches in the direction of the
arrows, insert them into the holes as shown
below to secure the frame.
24
Connect refrigerant piping
Connect refrigerant piping
4. If existing connective piping is already
embedded in the wall, proceed directly to
the Connect Drain Hose step. If there is no
embedded piping, connect the indoor unit’s
refrigerant piping to the connective piping
that will join the indoor and outdoor units.
Refer to the Refrigerant Piping Connection
section of this manual for detailed instructions.
Holes for the
latches
Release the latches to take
down the bottom frame
Push and insert the latches into the hole to
secure the bottom frame
