Page 8

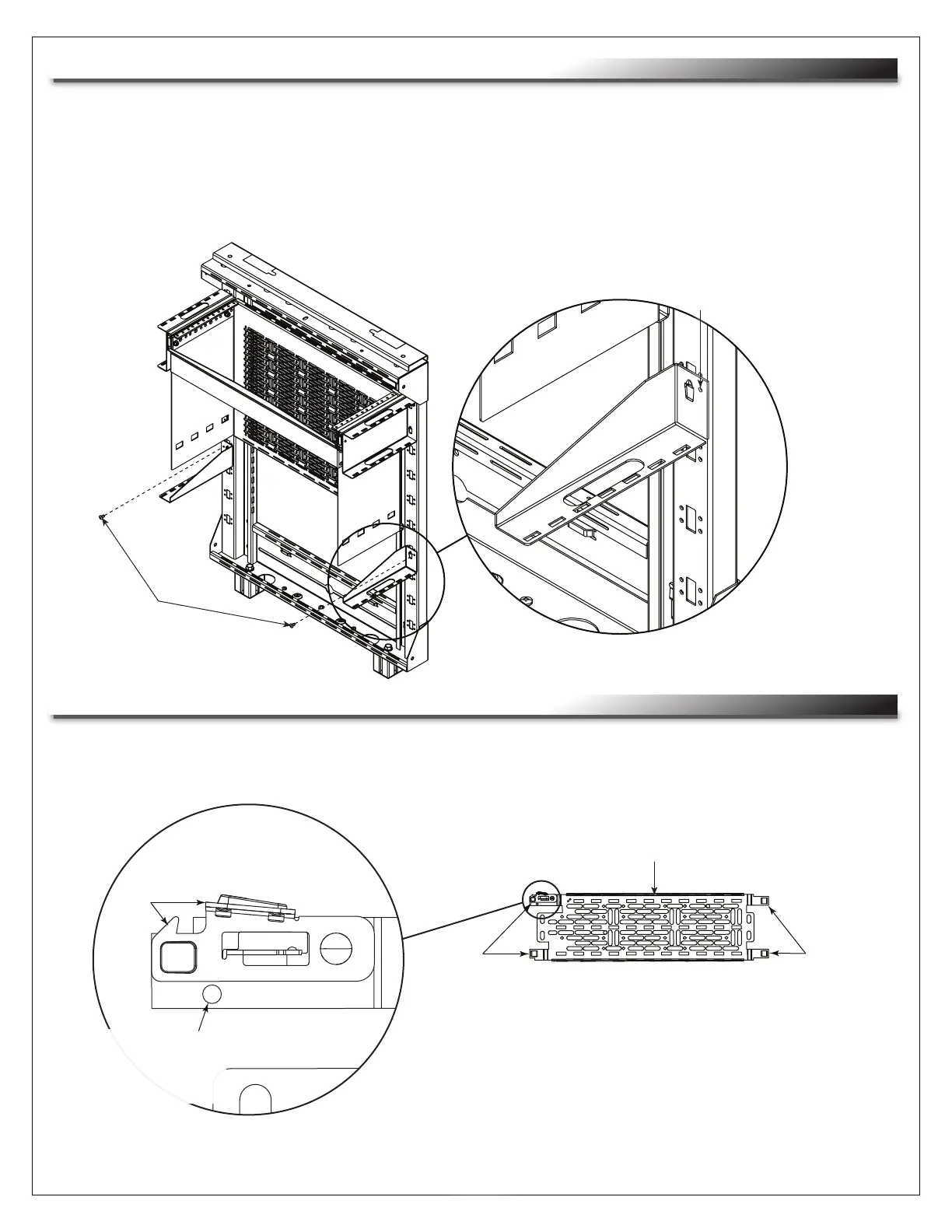

INSTALLING LEVER LOCK™ PLATES OUTSIDE OF RACK OPTIONS
2. With the shovel lances hooked in the holes, push downward on the brackets until they lock into place.
NOTE: Adjust torque on power driver to lightest setting and increase as needed.
3. Use a power driver, #2 Phillips bit, and (2x) 8-32 x 5/16” thread forming screws (D) to secure the
Lever Lock brackets (L or AD) to the frame as shown. (FIGURE E)
INSTALLING LEVER LOCK™ BRACKETS OUTSIDE OF RACK OPTIONS
FIGURE E
D
Hole on the Lever Lock
bracket lines up with
hole on frame for screw.
• Attach the 4” Lever Lock vertical plate (F) by installing the side without the clip into the brackets first.
Then, install the side with the clip into the other bracket until it clicks into place. (FIGURE F)
FIGURE F
Clip
NOTE: 4” Lever Lock vertical plate shown.
F
NOTE: Install a securing
rivet (C) into hole to
secure the clip more
permanently, if desired.
NOTE: Use (20x) washers (E) for equipment mounting convenience.
Side
without
clip
Side
with
clip
