3. With the shovel lances hooked in the holes, push downward on the brackets until the rack locks into

place.

NOTE: Verify the torque on your power driver is on the lightest setting and only increase as necessary.

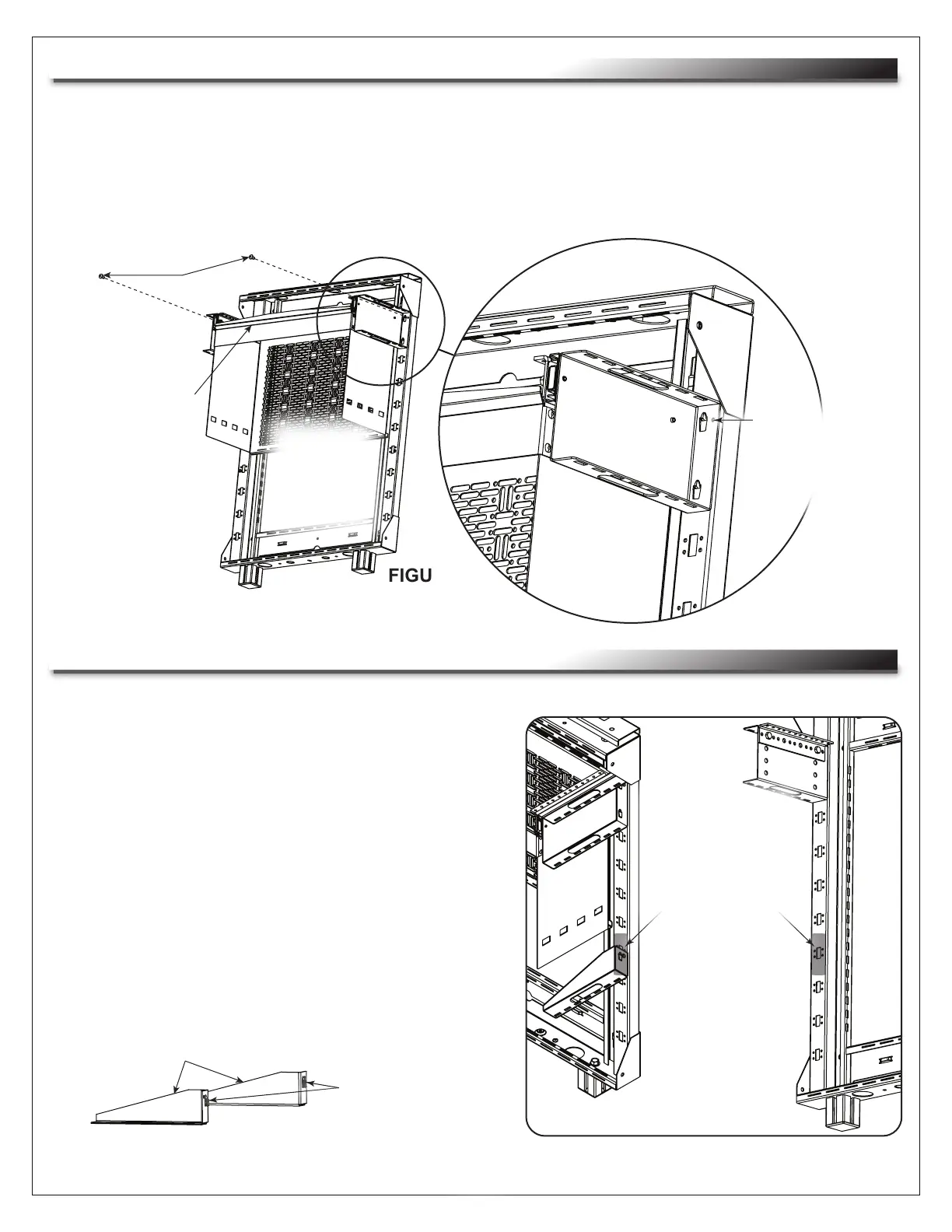

4. Use a power driver, #2 Phillips bit, and (2x) 8-32 x 5/16” thread forming screws (D) to secure the rack’s

brackets to the frame as shown. (FIGURE C)

Slide-Out Rack

Handle

Page 7

INSTALLING THE SLIDE-OUT RACK OPTION (C3-TECHKIT4-SO, CONTINUED)

INSTALLING LEVER LOCK™ BRACKETS OUTSIDE OF RACK OPTIONS

NOTE:

• Lever Lock™ brackets are installed outside of both the

Slide-Out Rack (C3-TECHKIT4-SO) and Fixed Rack

(C3-TECHKIT4-ST) options. This topic shows the

Slide-Out Rack, but the procedure is the same

for the Fixed Rack.

• Lever Lock brackets (L or AD) and 8-32 x 5/16” thread

forming screws (N or AF) are provided for both the

Slide-Out Rack (C3-TECHKIT4-SO) and Fixed Rack

(C3-TECHKIT4-ST) options.

1. Hook the shovel lances on the Lever Lock brackets

(B) into the 5th set of rectangular holes on the frame

(shaded) beneath the slide-out or fixed brackets as

shown. (FIGURE D)

Use the 5th set of

rectangular holes

beneath the slide-out

or fixed rack option

brackets when

attaching the Lever

Lock brackets.

FIGURE D

Shovel lances on

back of Lever Lock

brackets.

FIGURE C

NOTE:

Upward view

of slide-out

rack option

attached to

frame.

Hole on the

bracket lines

up with hole

on frame for

screw.
