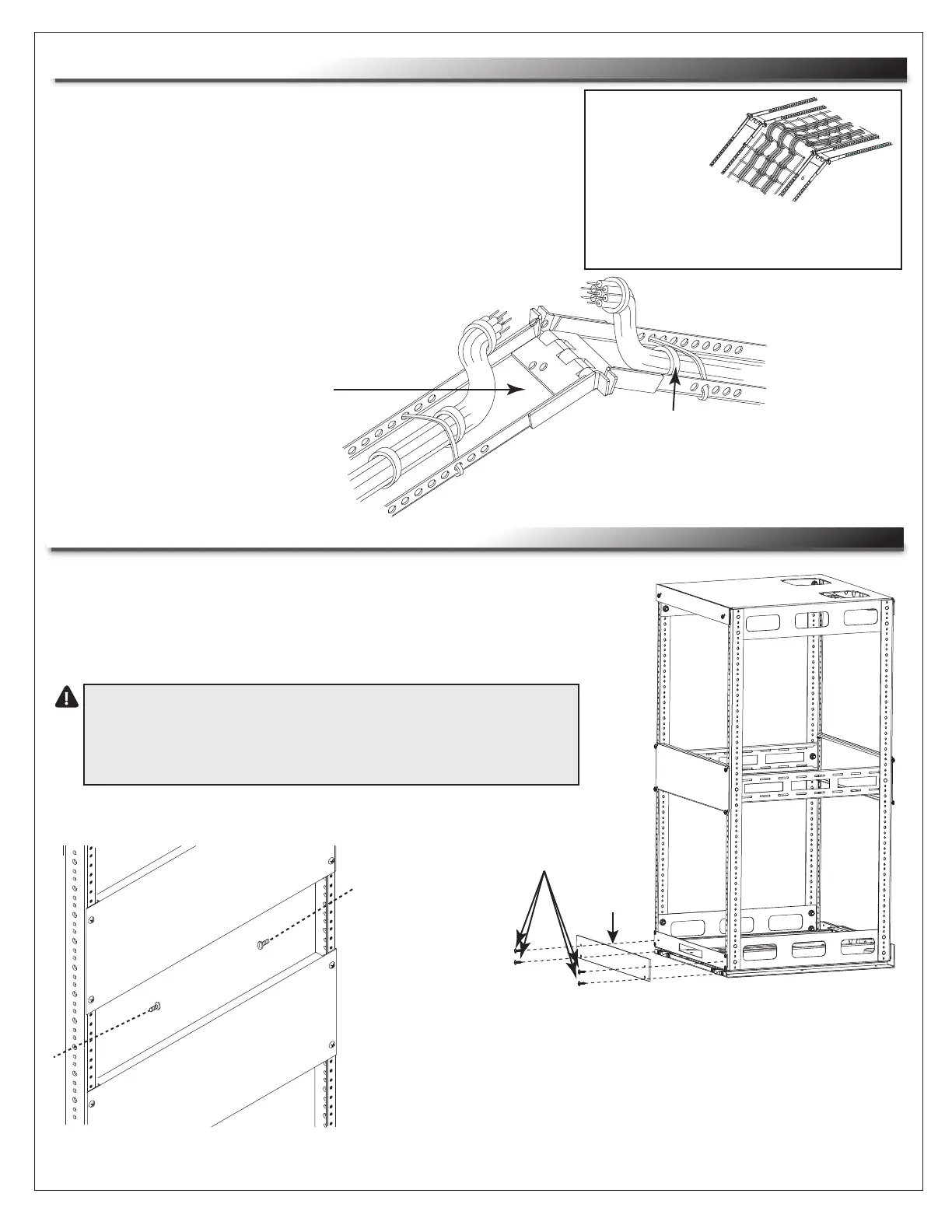

1) Extend cable carriers fully. (FIGURE K)
2) Route cables through cable carrier channel. (FIGURE M)
3) Tie cabling in a bundle and secure to center
of cable carrier channel. (FIGURE M)
4) Leave service loop at hinge point to allow for folding.
NOTE: Observe and adjust for pinch points.
CABLE CARRIER
TIE CABLES
AS SHOWN
DID YOU KNOW?
Optional part #
AXS-WT25/WT50
is available to
handle larger
cable bundles
PART # FITS
AXS-WT-25 AX-SX, SSAX
AXS-WT50 AXS, SAX
NOTE: If the loaded rack frame springs outward during installation,
it can be secured directly to the millwork wherever a blank panel is
located. With rack closed, remove blank panel and install
customer-supplied screws through each side of front rackrail
into millwork. (FIGURE O)
FIGURE M
1) Roll loaded rack into millwork.
2) Install bottom trim panel using (4) 10-32 Phillips head screws
(included in hardware kit). (FIGURE N)
3) Remove tracks and service stand.
Phillips Head
Screws (4)
10 -32 x 1/4”
CABLE MANAGEMENT
Page 14
SECURING RACK ASSEMBLY IN MILLWORK
WARNING! The trim panel is integral to the safe operation
of this product and is required to prevent the rack
from sliding out. Failure to install trim panel can result in
serious damage to equipment and/or risk of injury.
Bottom
Trim Panel
FIGURE N
FIGURE O
