1) Place rack on service track assembly (observe proper front/rear
orientation). (FIGURE K)
Installer provides anchor
hardware to top of cabinet millwork
NOTE: The leash can be shortened by tying knots in it.
4) Extend frame until cable carriers stop frame at full out position.
5) Attach opposite end of leash to a stable point in your cabinet / millwork with hardware of your choice.
Phillips Head Screw
(1) 10-32 x 5/8”
CAUTION! Do not allow the frame to roll off end of tracks.
RACK AND CABLE CARRIER INSTALLATION
Page 13
2) Extend and secure each cable carrier to frame using (2) 10-32 hex
head screws (included in service track hardware kit). (FIGURE K)
3) Install one end of the leash to top rear of frame using
(1) 10-32 x 5/8” Phillips head screw (included leash hardware kit).
(FIGURE L)
Hex Head Screws
(2 Per Cable Carrier) 10-32
Rack
Cable Carriers

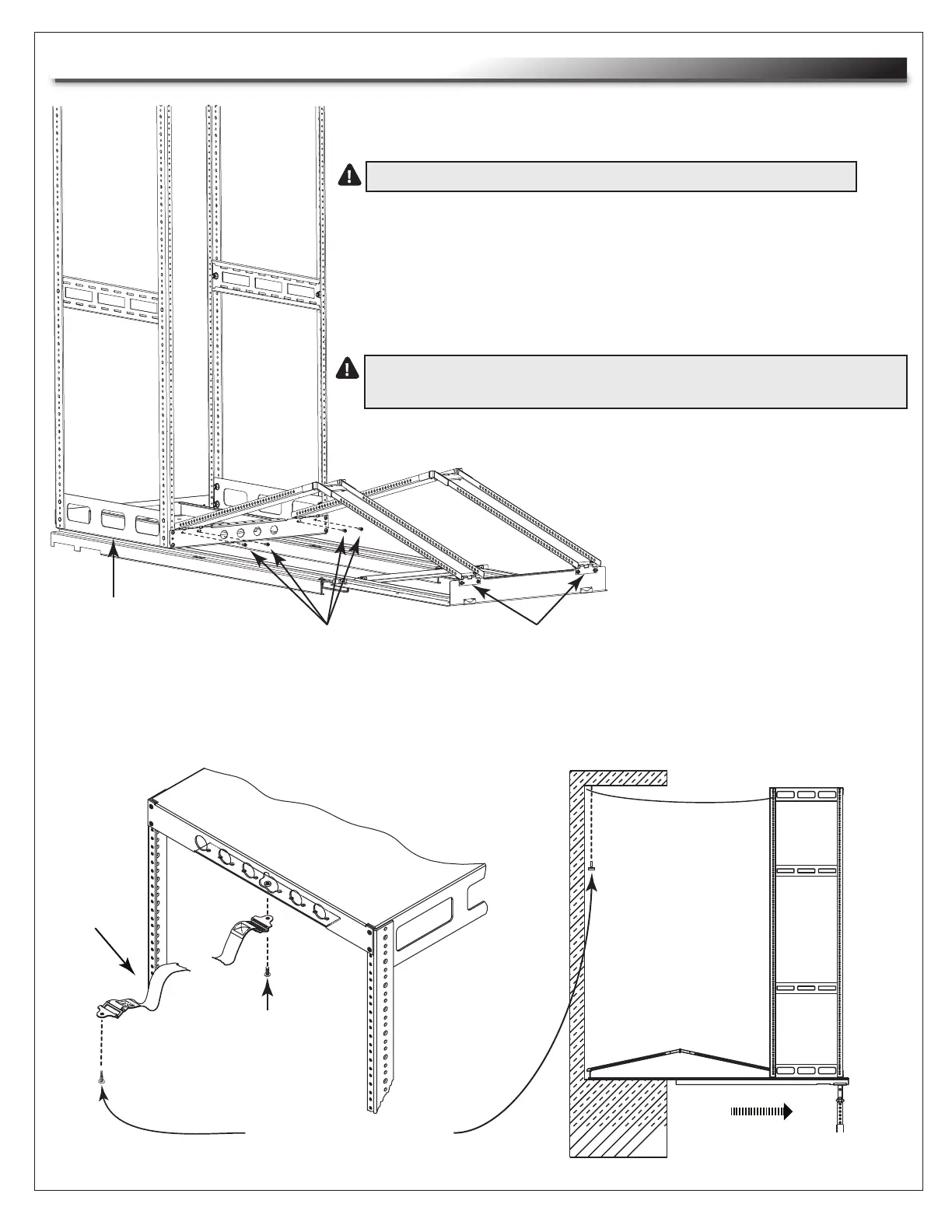

FIGURE K
CAUTION! The leash is an integral part of this system and must
be installed to prevent system from tipping and sliding off tracks.
FIGURE L
Leash
