AC Switching Characteriscs
Data Sheet
© 2024 Microchip Technology Inc. and its subsidiaries
DS00003831E - 64

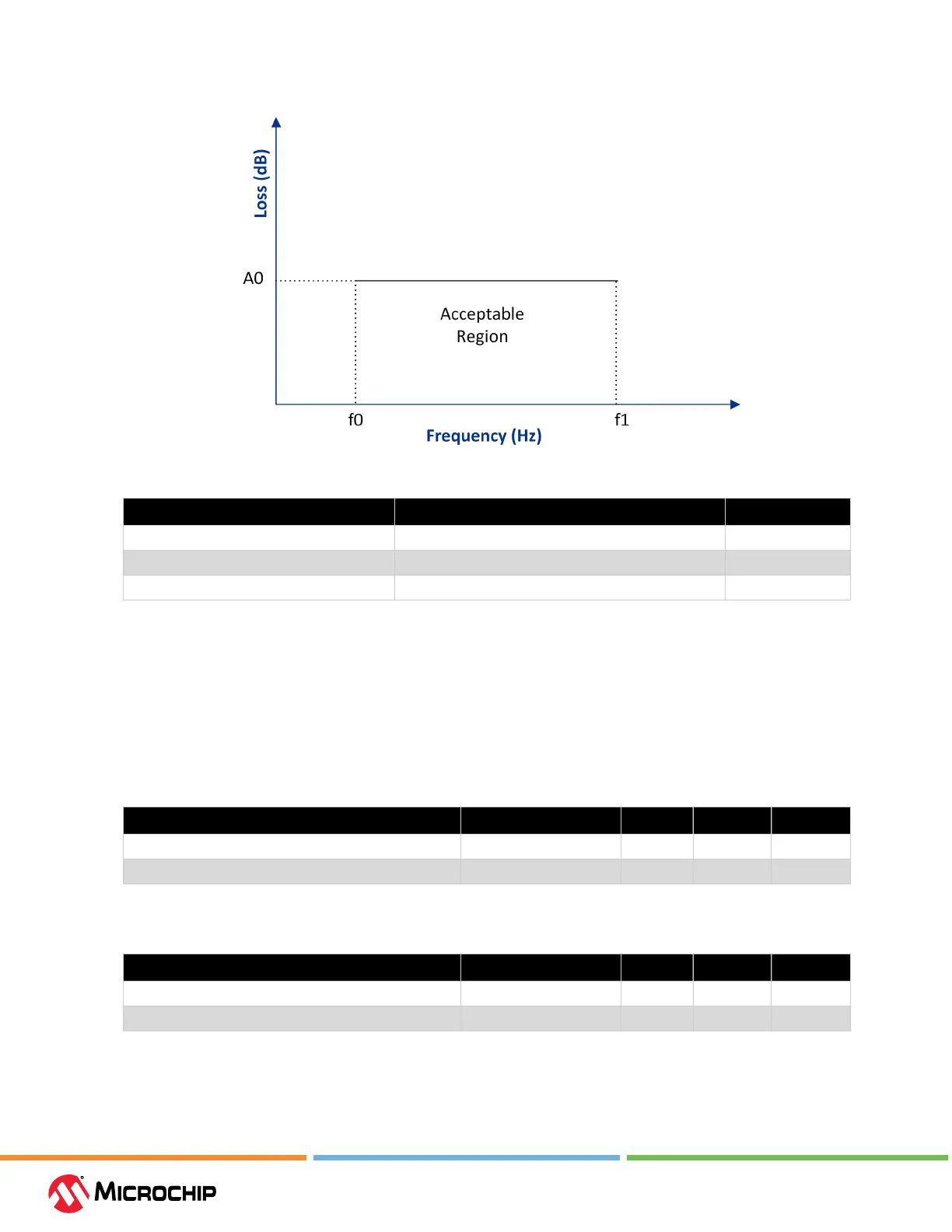

Figure 5-8. Common Mode Return Loss
Table 5-45. Common Mode Return Loss
Parameter Value Unit
A0 –6 dB
f0 100 MHz
f1 (3/4) * T_Baud Hz
5.5 Transceiver Protocol Characteriscs
The following section describes transceiver protocol characteristics.
5.5.1 PCI Express
The following tables describe the PCI express.
Table 5-46. PCI Express Gen1
Parameter Data Rate Min Max Unit
Total transmit jitter 2.5 Gbps — 0.25 UI
Receiver jitter tolerance 2.5 Gbps 0.4 — UI
Note: With add-in card, as specied in PCI Express CEM Rev 2.0.
Table 5-47. PCI Express Gen2
Parameter Data Rate Min Max Unit
Total transmit jitter 5.0 Gbps — 0.35 UI
Receiver jitter tolerance 5.0 Gbps 0.4 — UI
Note: With add-in card as specied in PCI Express CEM Rev 2.0.
