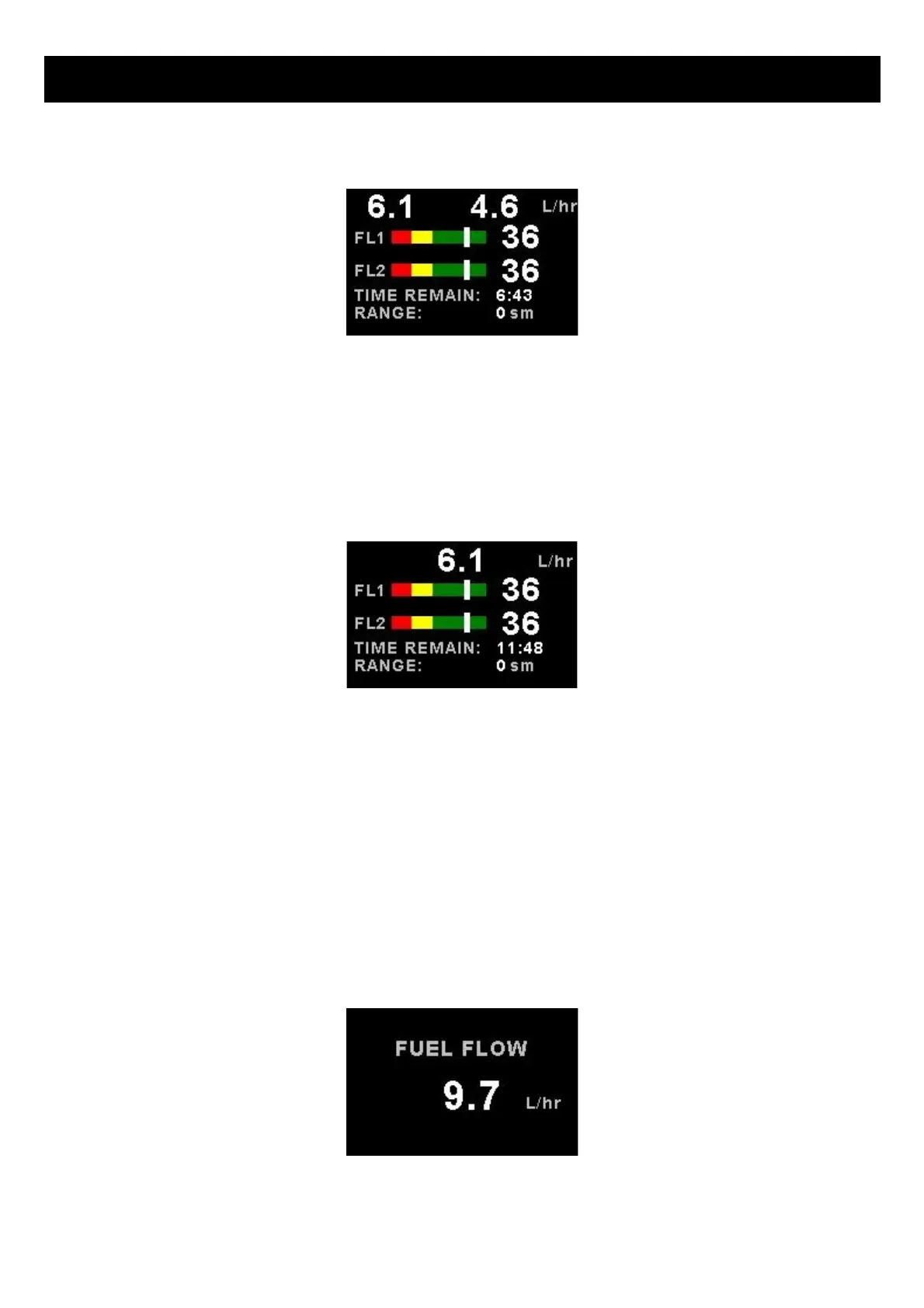

XTreme-EFIS Operating Manual Page 34
3.12.4.2 Dual fuel flow and calculated tank levels (dual tank)
Dual fuel flow and dual fuel level senders (dual tank)
3.12.4.3 Single fuel flow and dual fuel level senders (dual tank)
Single fuel flow, single fuel level sender, single calculated tank
Differential fuel flow and dual fuel level senders (dual tank)
Differential flow, single fuel level sender, single calculated tank
Summed fuel flow and dual fuel level senders (dual tank)
Summed fuel flow, single fuel level sender, single calculated tank
Single/Differential/Summed fuel flow, single fuel level sender, single calculated tank
These modes are nice for multiple fuel tanks whereby one or more tanks are difficult to insert level senders in. Potential
problems such as those listed below can easily be diagnosed by doing side by side comparisons between a calculated
and physical tank.
• Leaks in the fuel system
• Uneven drain of interconnected tanks
• Malfunction of the level sender
• Malfunction of the flow sender
3.12.4.5 Single fuel flow only indicator
This mode is displayed if either fuel flow 1 or fuel flow 2 is selected and no fuel level senders are selected.
