REV. 3/29/2024 INST99-8164
7
CONNECTIONS (CONT.)
Use the LD-8164-NAV harness for vehicles with Factory Navigation
From the LD-8164-NAV harness to the aftermarket radio:
• Connect Black to the ground wire
• Connect Yellow to the battery/ memory wire.
• Connect Red to the accessory wire.
• Connect Orange to the Illumination wire.
• Connect Blue to the radio’s Antenna/Remote wire.
• Tape off and disregard the following wires: White, White/Black, Gray, and Gray/Black.*
*For speaker wire connections, refer to the AX-AB-LX4 amplifier bypass harness Instructions.
The Yellow/Black ‘Bean BUS’ wire must be connected properly for this interface to function:

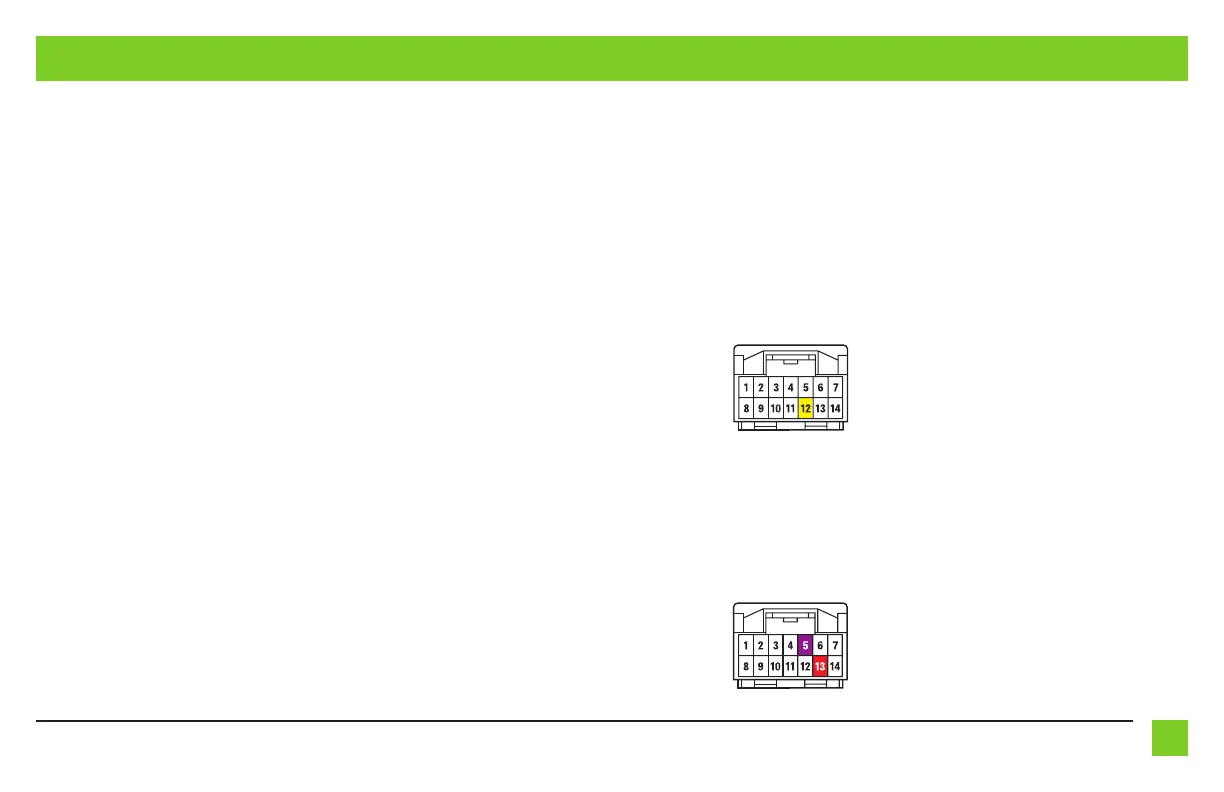

Locate the gray 14 pin connector in the vehicle.
The following connections will have to be made.
• Connect the Yellow/Black wire labelled ‘Bean BUS’ to the Yellow/Black wire on the factory
connector.
A military/lineman splice is recommended to ensure a good connection.*
*Always insulate all connections.
The following connections are only necessary if installing a Multimedia / Navigation radio &
desire the additional outputs:
• Connect the radios
Vehicle Speed Sense
wire to the factory Violet/White wire.
• Connect the radios
Park
wire to the factory Red/White wire.
Gray (Control Panel)
White (Multi Display)
Yellow/Black – ‘Bean BUS’ wire
- Connect to labeled wire on LD-8164
Violet/White – Vehicle Speed Sense
Red/White – Parking Brake
7
