CONNECTIONS
From the LD-8164 harness to the aftermarket radio:
• Connect the Black wire to the ground wire.
• Connect the Yellow wire to the battery wire.
• Connect Red wire to the accessory wire.
• Tape off and disregard the following (4) wires, they will not be used in this application:
Gray, Gray/Black, White, White/Black
*For speaker wire connections, refer to the AX-AB-LX4 amplifier bypass harness Instructions

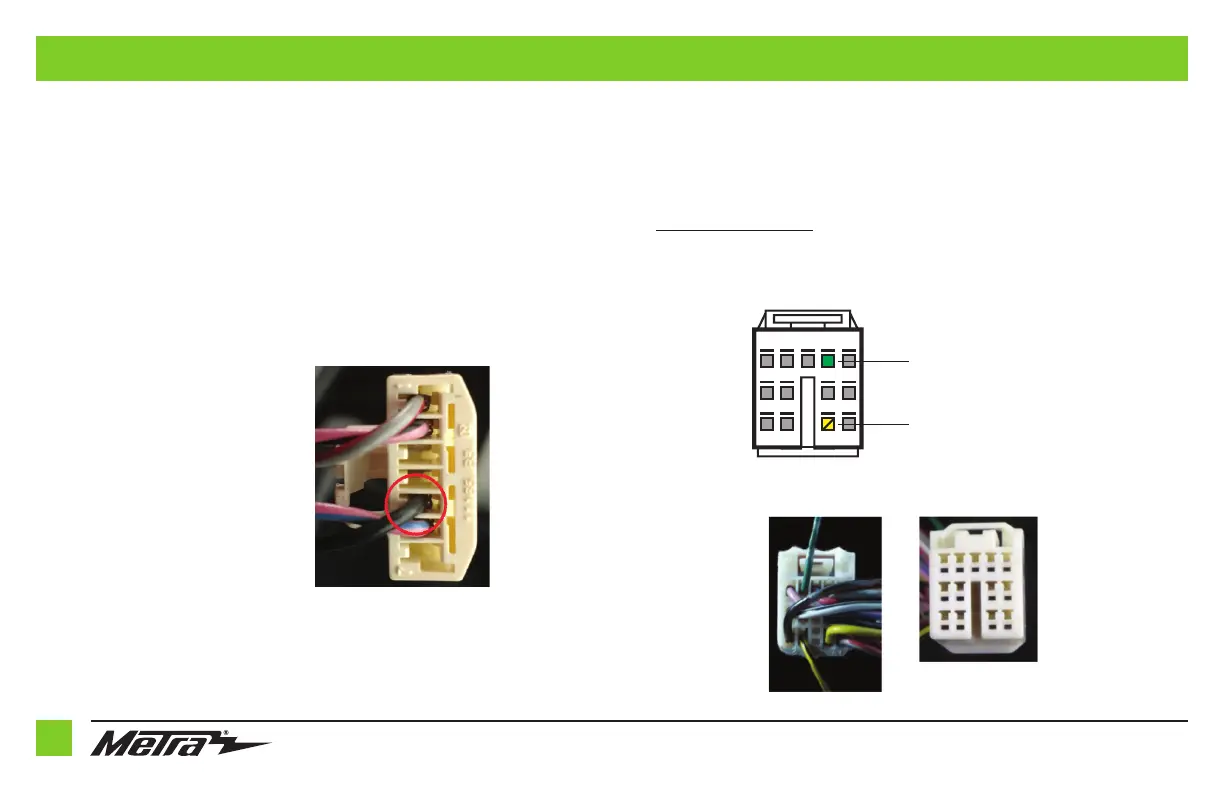

• Locate the 7-pin connector.
• Connect the radio’s power antenna to the
highlighted Black wire. (Pin 5)
The Yellow/Black ‘Bean BUS’ wire must be connected properly for this interface to function:
Locate the 13 pin connector in the vehicle.
The following connections will have to be made.
•
‘Bean BUS (Yellow/Black)’
– to the factory Yellow/Black wire.
• Radio’s Illumination wire – to the factory Green wire (if desired)
Illumination (+)
Green wire on factory side
Bean BUS (+)
Yellow/Black wire on factory side
Front of 13 pin connector
Wire side of 13 pin connector
Illumination (+)
Bean BUS
