99-7612
®
ISO DIN radio provision
with pocket (continued)
5. Mount the climate module to the
radio/bracket assembly using
(2) 3/8” Phillips screws supplied
with the kit. (Figure D)
6. Plug the white flat 16-pin
connector, removed in
disassembly, into the 99-7612.
7. Mount the radio/pocket/climate
assembly to the radio trim panel
using (4) 3/8” Phillips screws
supplied with the kit. (Figure E)
8. Locate the factory wiring harness
and antenna plug in the dash.
Metra recommends using the
proper mating adapters from Metra
and/or AXXESS.
9. Follow the wiring instructions in
this manual and reassemble dash
in reverse order of disassembly.

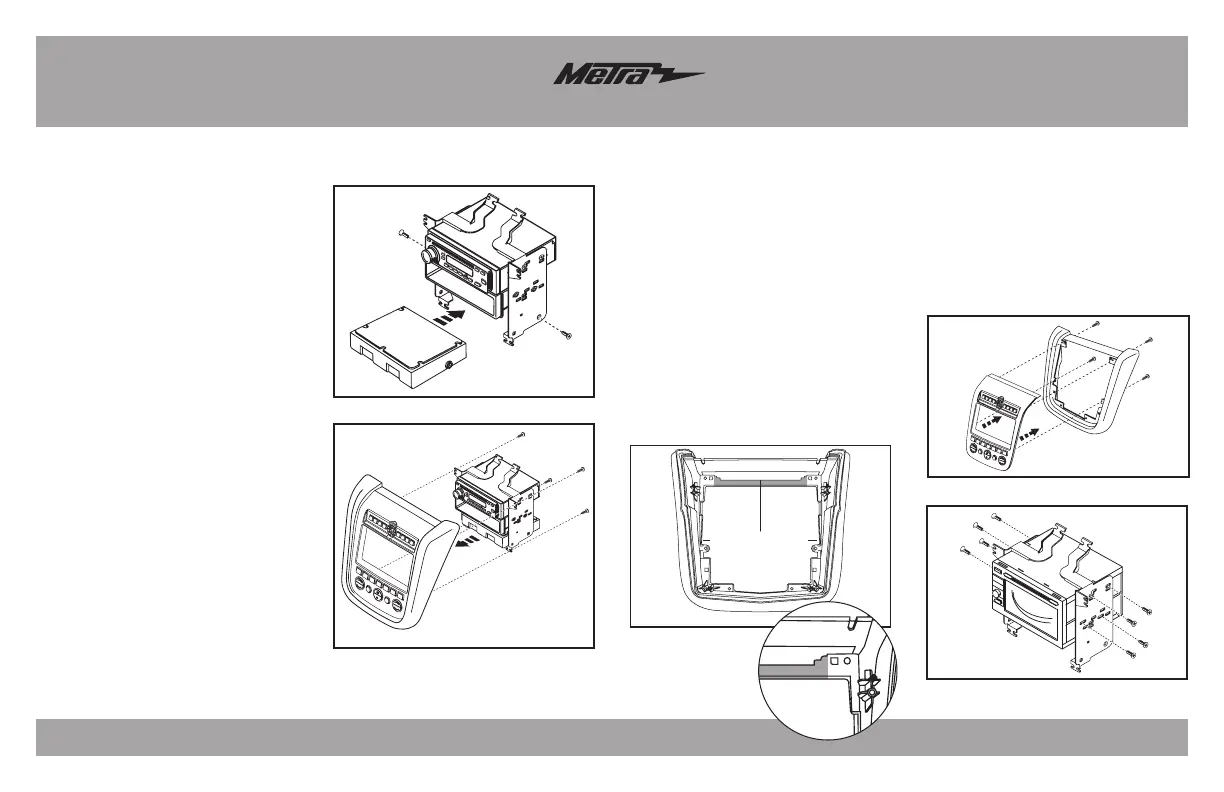

Kit Assembly
(Figure D)
(Figure E)
4
ISO DDIN radio provision
1. Trim the shaded areas from the
factory radio trim panel. (Figure A)
Do not cut the locator and screw
hole off as they will be necessary
to mount the 99-7612 radio
housing. (See detail)
2. Attach the 99-7612 radio housing
to the radio trim panel using (4)
supplied 3/8” Phillips screws.
(Figure B)
(Figure B)
(Figure A)
(Figure C)
Trim shaded areas
Detail
3. Slide the ISO DDIN aftermarket
radio into the radio housing
brackets and secure with screws
supplied with the radio. (Figure C)
Continued on next page
