386.257.1187
|
MetraOnline.com
8
3.5mm jack steering wheel control retention:
The 3.5mm jack is to be used to retain audio controls on the steering wheel.
• For the radios listed below: Connect the
female 3.5mm connector with stripped leads
to the
male 3.5mm SWC jack from the 6543 harness. Any remaining wires tape off and disregard
.
•
Eclipse: Connect the steering wheel control wire, normally Brown, to the Brown/White
wire from the connector. Then connect the remaining steering wheel control wire,
normally Brown/White, to the Brown wire from the connector
.
•
Metra OE:
Connect the steering wheel control Key 1 wire
(Gray)
to the
Brown
wire.
•
Kenwood or select JVC with a steering wheel control wire:
Connect the
Blue/Yellow
wire
to the
Brown
wire.
Note:
If your Kenwood radio auto detects as a JVC, manually set the radio type to Kenwood.
See the instructions under changing radio type.
•
XITE:
Connect the steering wheel control SWC-2 wire from the radio to the
Brown
wire.
•
Parrot Asteroid Smart or Tablet:
Connect the 3.5mm jack into the AX-SWC-PARROT (sold
separately), and then connect the 4-pin connector from the AX-SWC-PARROT into the radio
.
Note:
The radio must be updated to rev. 2.1.4 or higher software.
•
Universal “2 or 3 wire” radio:
Connect the steering wheel control wire, referred to as Key-A
or SWC-1, to the
Brown
wire from the connector. Then connect the remaining steering wheel
control wire, referred to as Key-B or SWC-2, to the
Brown/White
wire from the connector. If
the radio comes with a third wire for ground, disregard this wire
.
Note:
After the interface has been programmed to the vehicle, refer to the manual provided
with the radio for assigning the SWC buttons. Contact the radio manufacturer for more
information.
• For all other radios: Connect the 3.5mm jack from the 6543 harness to the jack on the
aftermarket radio designated for an external steering wheel control interface. Please refer to
the aftermarket radios manual if in doubt as to where the 3.5mm jack goes to.
I N STALL ATI O N
Attention! It is highly advisable to read the following steps beforehand, to ensure a clear
understanding of what is to be expected. The following steps must be done in the order that they
are numbered.

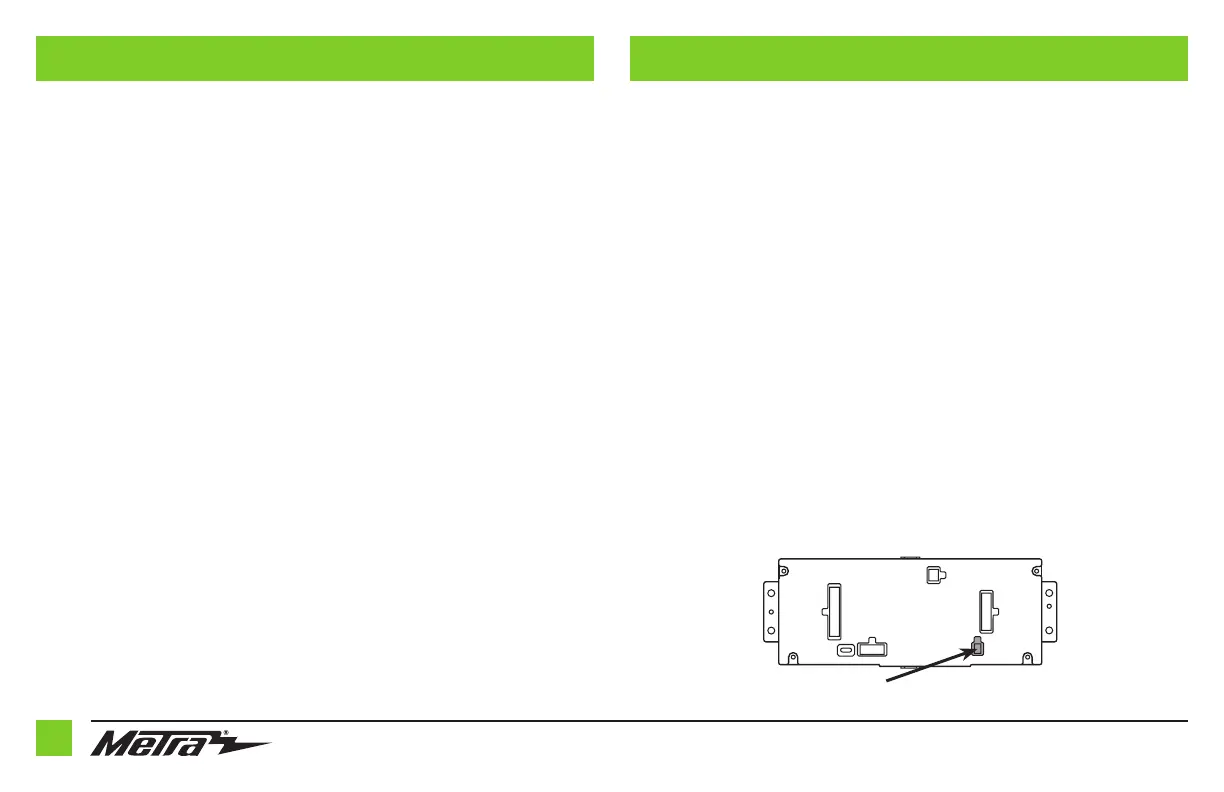

With the vehicle completely off:
1. Connect the
16-pin harness with stripped leads
into port “B” in the touchscreen display.
2. Connect the
6543 harness
to the wiring harnesses in the vehicle. Then insert the
6543 harness
into
port “A” in the touchscreen display. But do not install this harness until exactly before step 1 from the
Programming section. This is a timed process
3. Connect the
4-pin harness with yellow RCA jacks
into port “C” in the touchscreen display.
4. Connect the
hazard harness (LD-CHRYHAZ2)
10-pin connector
into port “D” in the touchscreen
display, and then to the wiring harness in the vehicle.
Note: Be sure to plug in the 8-pin connector from the climate control. The touchscreen also uses the
same connector. Using the wrong connector will cause a jam with the vehicles CANBUS.
5. Disregard port “E” it will not be used in this application.
6. Port “F” is an update port for future firmware upgrades.
7. Locate the factory antenna connector in the dash and complete all necessary connections to the radio.
Use the antenna adapter provided to adapt the factory antenna connector to the aftermarket radio.
A
B
C
E
F
D
CONNECTIONS (CONT)
Note: DO NOT CONNECT
