Climate control panel

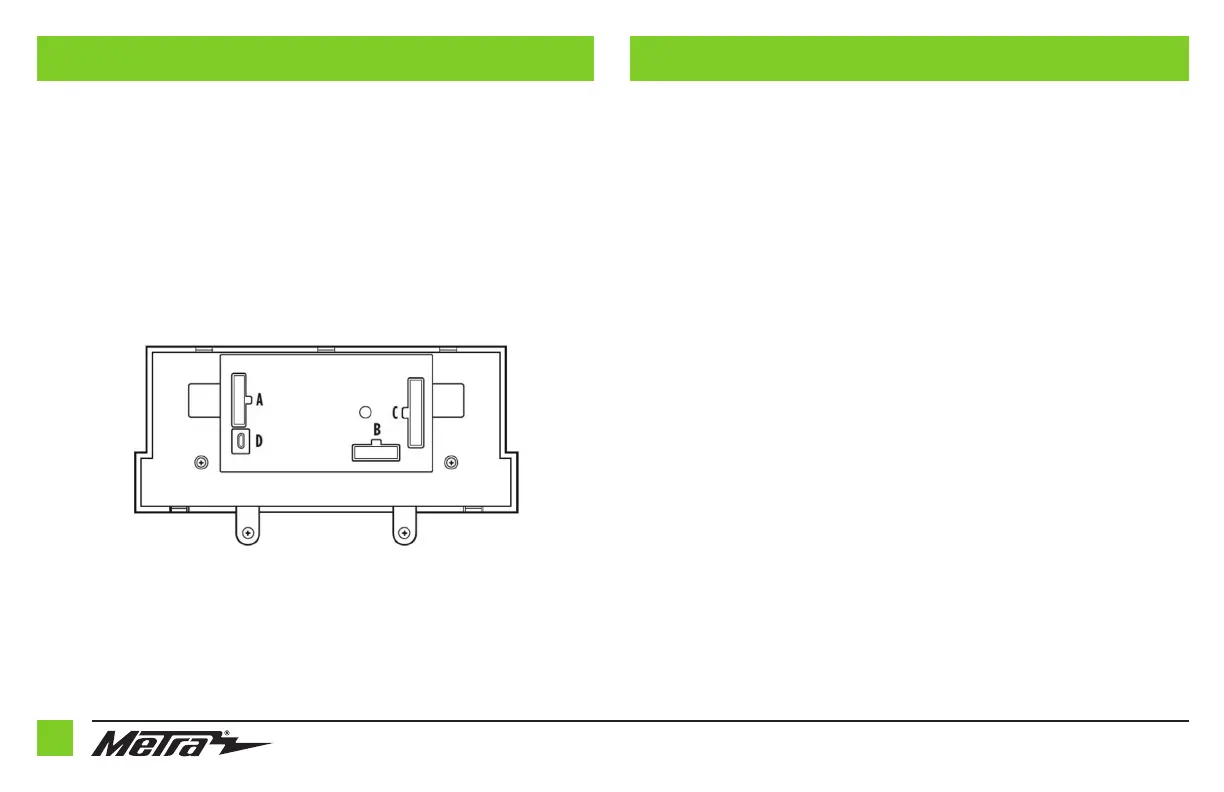

1. Connect the 16-pin harness with stripped leads into Port A.
2. Connect the 14-pin harness with stripped leads into Port B.
3. Connect the FD3 HARNESS into Port C, and then to the wiring harnesses in the vehicle. These
harnesses are the ones removed from factory radio during Dash Disassembly, Step 13.
4. Port D is a Micro-B USB input for updating the Axxess interface.
INSTALLATION
5.
Connect the HVAC interface harness into the HVAC interface, and then to the wiring harnesses
in the vehicle. These harnesses are the ones removed in Dash Disassembly, Step 11.
6. Plug The 10-pin connector from the HVAC interface harness into the vehicle’s engine start/
stop switch panel.
7. Connect the 6-pin harness from the car side harness to the HVAC interface.
8. Locate the factory antenna connector in the dash and complete all necessary connections to
the radio. Use the antenna adapter provided to adapt the factory antenna connector to the
aftermarket radio. (refer to camera applications on page 9 for harness needed)
