8
I N STALL ATI O N
A
B
C
E
F
D
With the ignition in the off position, connect the:
1. 16-pin harness into port A.
2. 5858 harness into port B.
3. AUX video harness into port C.
4. Airbag-Light/Hazard harness into port D. (Figure A)
2011-2015
a. Connect the 6-pin “stacked”
male
connector to the passenger airbag light & hazard
switch in the radio bezel.
b. Connect the 6-pin “stacked”
female
connector to the wiring harness in the vehicle.
This was the harness removed in Dash Disassembly, step 3.
c. Disregard the 6-pin “flat”
female
connector.
2016-2019
a. Connect the 6-pin “stacked”
male
connector to the passenger airbag light & hazard
switch in the radio bezel.
b. Connect the 6-pin “flat”
female
connector to the wiring harness in the vehicle.
This was the harness removed in Dash Disassembly, step 3.
c. Disregard the 6-pin “stacked”
female
connector.

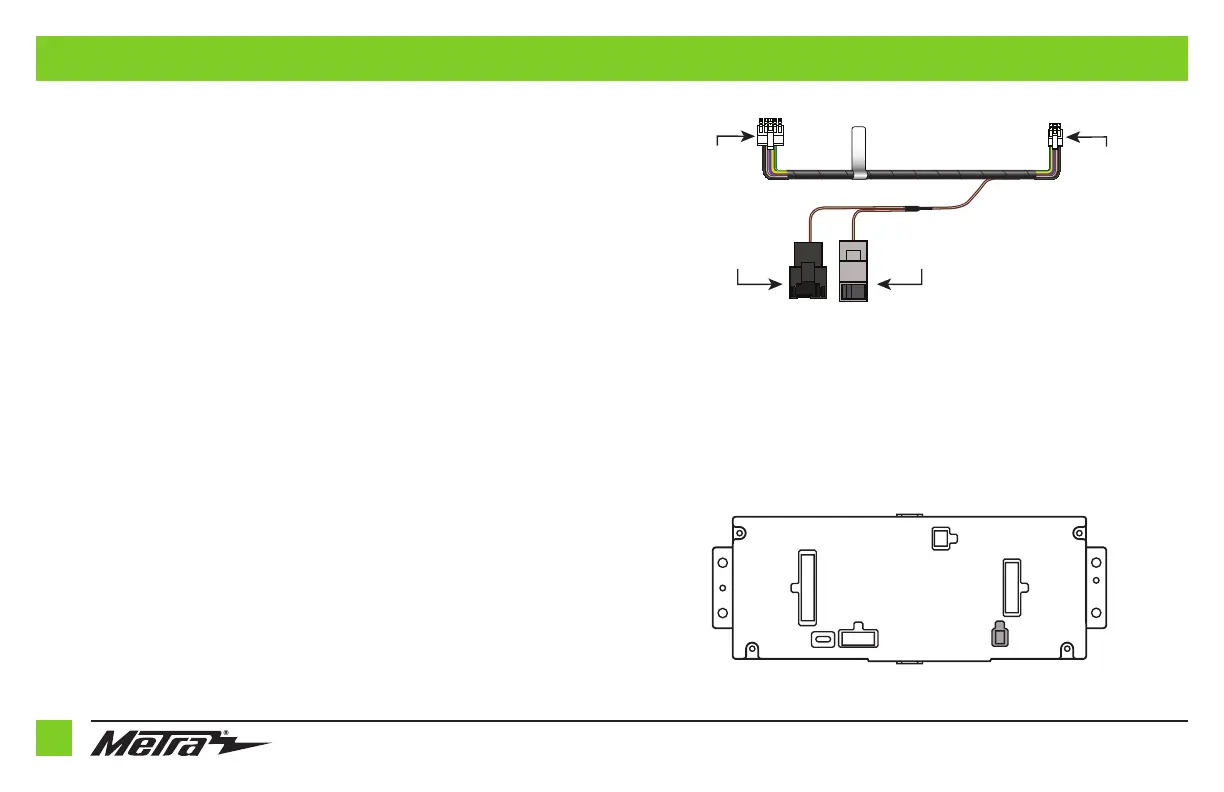

LD-5847-HAZ
Connector for
2011 to 2015 models
10-pin micro-fit
connector plugs into
touch screen display
6-pin micro-fit
connector plugs into
hazard switch.
Connector for
2016 to 2019 models
5. Disregard port E. (Figure B)
6. Port F is a Micro-B USB input for updating the interface.
7. Locate the factory antenna connector in the dash and complete all necessary connections
to the radio. Use the antenna adapter provided to adapt the factory antenna to the
aftermarket radio.
(Figure A)
(Figure B)
