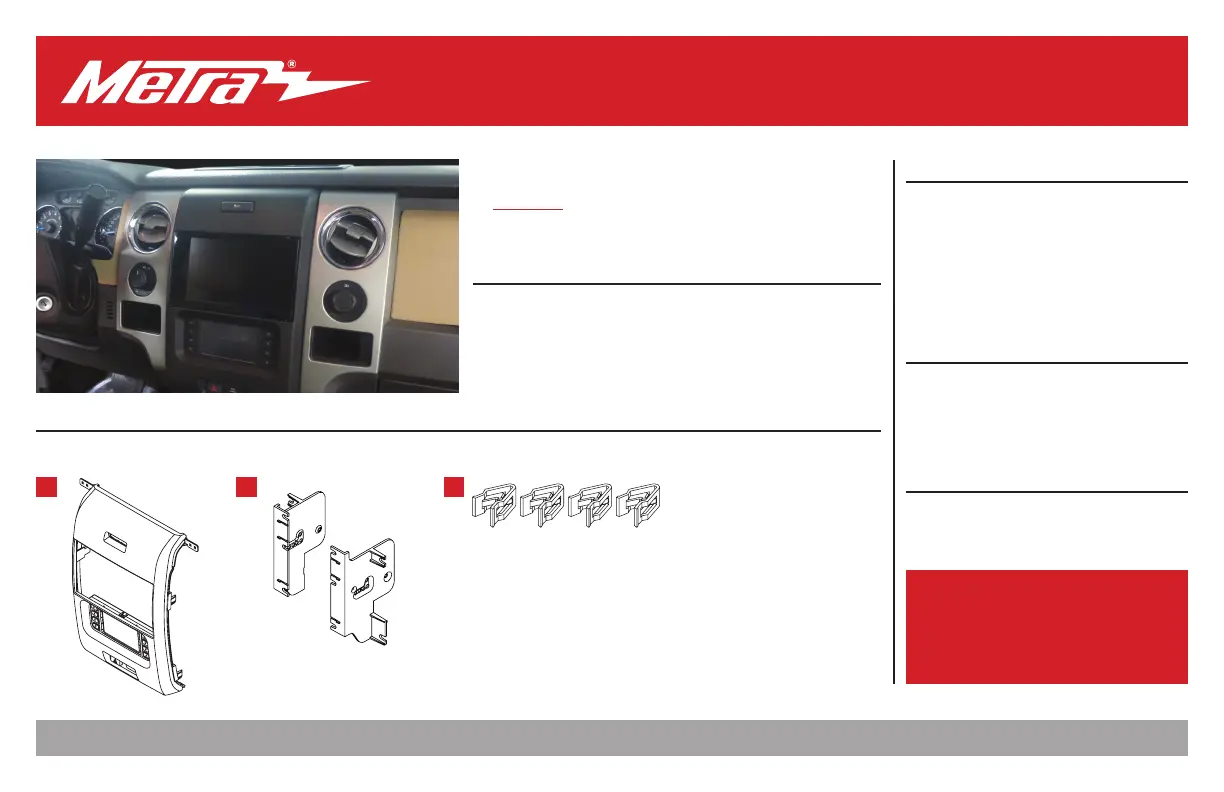

INSTALLATION INSTRUCTIONS
108-FD2B
Metra. The World’s Best Kits.
®
MetraOnline.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 12/9/22 INST108-FD2B
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
Patent Pending
KIT FEATURES
• Designed specifically for the Pioneer DMH-C5500NEX 8-inch radio
• Included interface for climate and steering wheel functions
• Touchscreen display for climate, audio interfacing, and personalization features
• Integrated hazard button and passenger airbag light
• Painted scratch resistant matte black
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 10mm and 7mm socket wrench
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................3
Kit Assembly ..........................................................3
Axxess Interface Installation .............................4-11
Final Assembly .......................................................7
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built into touchscreen
Antenna Adapter: Included with kit
Steering wheel control interface: Included with kit
Ford F-150 (with 4.2” screen) 2013-2014
KIT COMPONENTS
• A) Radio trim panel with touchscreen display • B) Radio brackets (a)
• C) (4) Panel clips •
D) Antenna adapter (not shown)
A B C
Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle
specific applications
