INSTALLATION
Check the appliance is electrically safe when you have nished.
31
Left Mounting
Plate
Front Left
Right Mounting
Plate
Front right

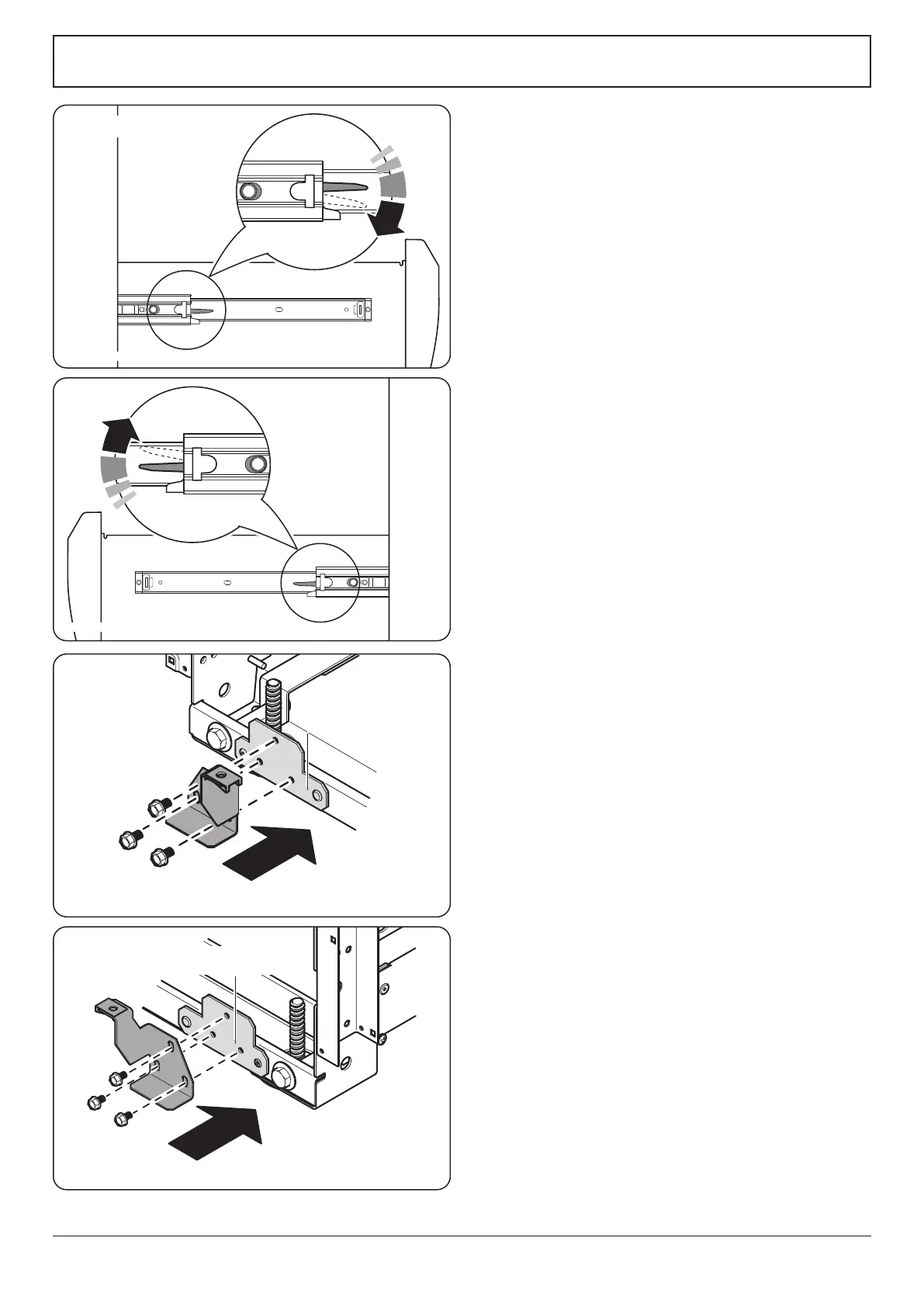

Fitting the Front Mounting
Brackets
1. Open the left-hand oven door and pull the drawer out
to its furthest point.
2. Push the ends of the plastic clips (Fig. 9.11 and Fig.
9.12) to release the catches holding the drawer to the
side runners. At the same time pull the drawer forward
and away from the side runners.
n
For safety’s sake make sure the drawer runners are
out of the way.
3. On the front of the cooker base there are two mounting
plates. Remove the three xing screws from each plate
(Fig. 9.13 and Fig. 9.14).
4. Fit the left and right-hand front mounting brackets as
shown in (Fig. 9.13 and Fig. 9.14). DO NOT over tighten
the mounting screws at this stage.
Fig. 9.11
Down on the left-hand side.
Up on the right-hand side
Fig. 9.12
Fig. 9.13
Fig. 9.14
