INSTALLATION
Check the appliance is electrically safe when you have nished.
31
Connect tab into
front of slot
Gasket
Nylon retaining
washer
Side panel
bracket

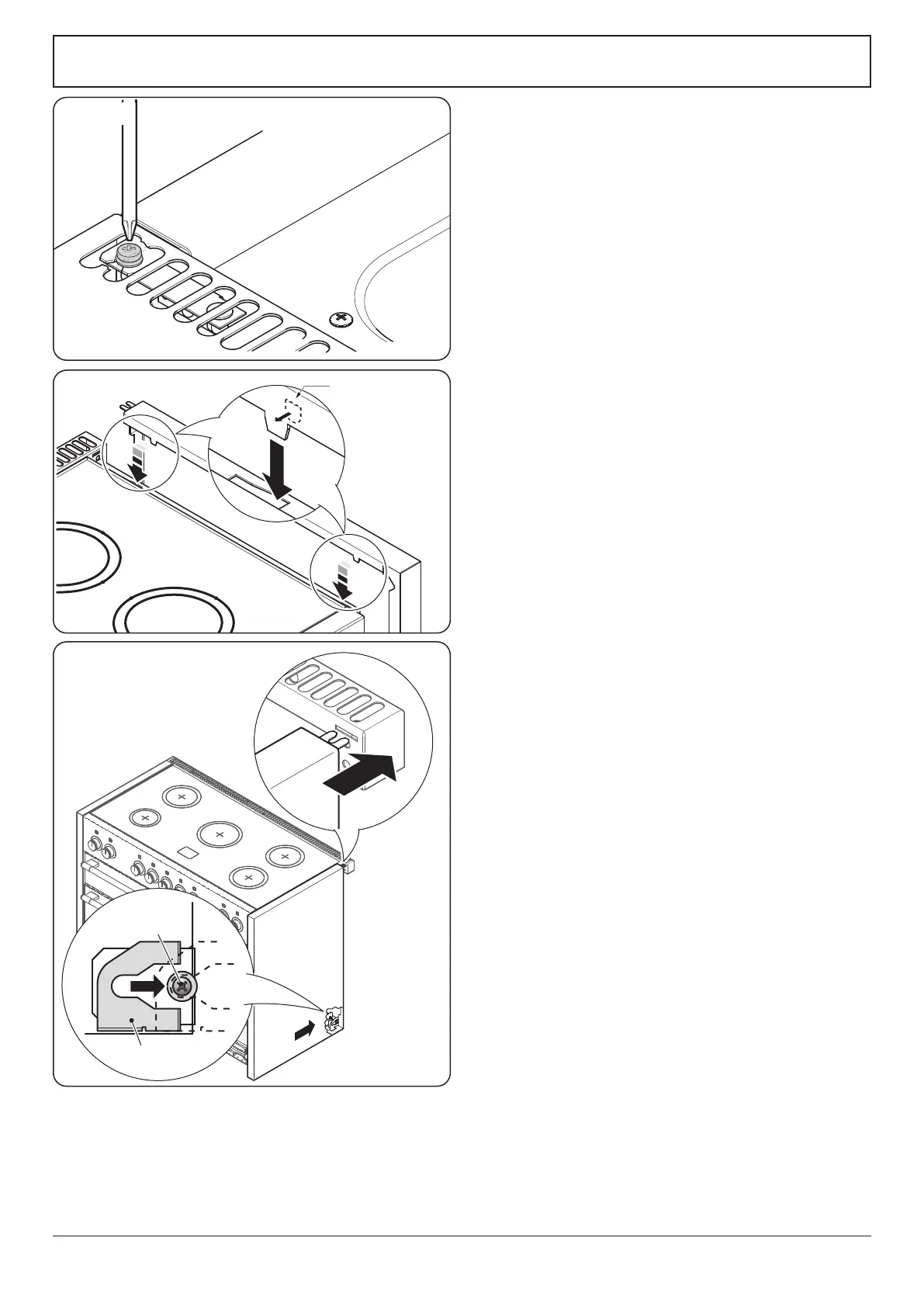

Fitting the Side Panels
1. Loosen the screw in the ue vent (Fig. 8.8).
2. Inside the top of the side panel top are two tabs.
Connect these tabs into the cut-outs in the top edge of
the cooker (Fig. 8.9).
3. Slide the side panel back so that the side panel bracket
in the base connects to the rear retaining washer and
the slotted tab at the top rear connects onto the screw
in the ue vent (Fig. 8.10).
4. Check everything is rmly connected and tighten
the screw in the ue vent to secure the side panel in
position (Fig. 8.8).
5. Note: If a side panel is loose, t one of the extra gaskets
to the inner face of the front bracket locating tabs (Fig.
8.9) and ret.
6. Note: The bottom front of the side panels will be loose.
These are secured once the bottom panel (plinth) is
tted.
Fig. 8.8
Fig. 8.9
Fig. 8.10
