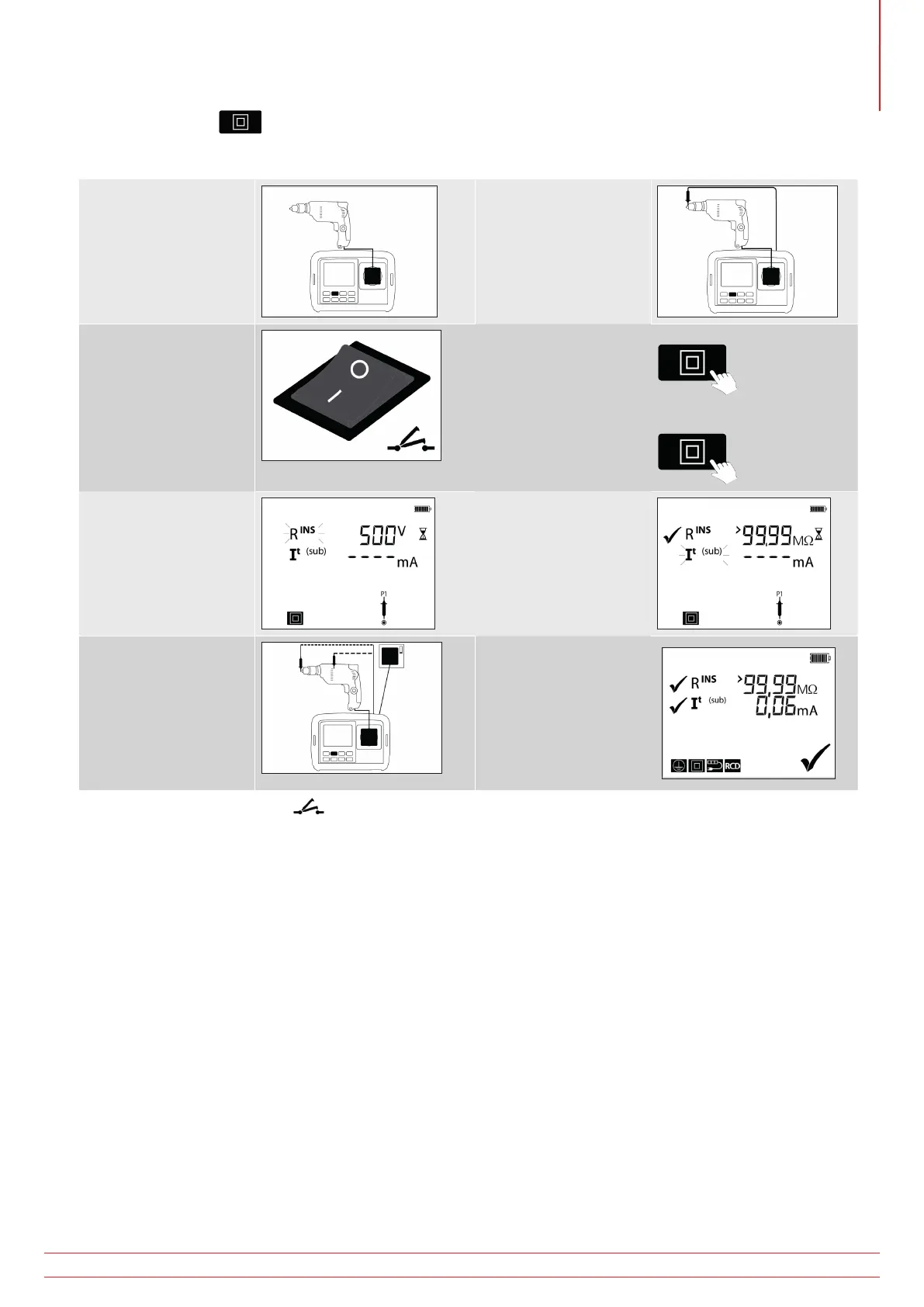

Testing using the PAT250SX
6.6 Class 2 test using substitute leakage @ 40 V AC
Battery powered testing of equipment without an Earth return conductor
1. Plug the appliance
under test into the
PAT tester
2. Connect BOND
lead P1 to a metal
point on the
appliance
3. Turn on the
appliance under
test
4. Select required
voltage
Insulation test @ 500 V
OR
Insulation test @ 250 V
>2 s
5. Ensure probe (P1)
is connected
6. See note below
7. Repeat contact
on all exposed
conductive parts.
See 6.4 Lock a
test in the ON
state: on page
17.
8. Class 2 Pass
NOTE : If the contact symbol appears, the appliance needs to be switched ON
NOTE : The PAT250SX performs various pre-checks prior to testing to ensure the asset is not short-circuit
and is switched on
