Instrument Overview

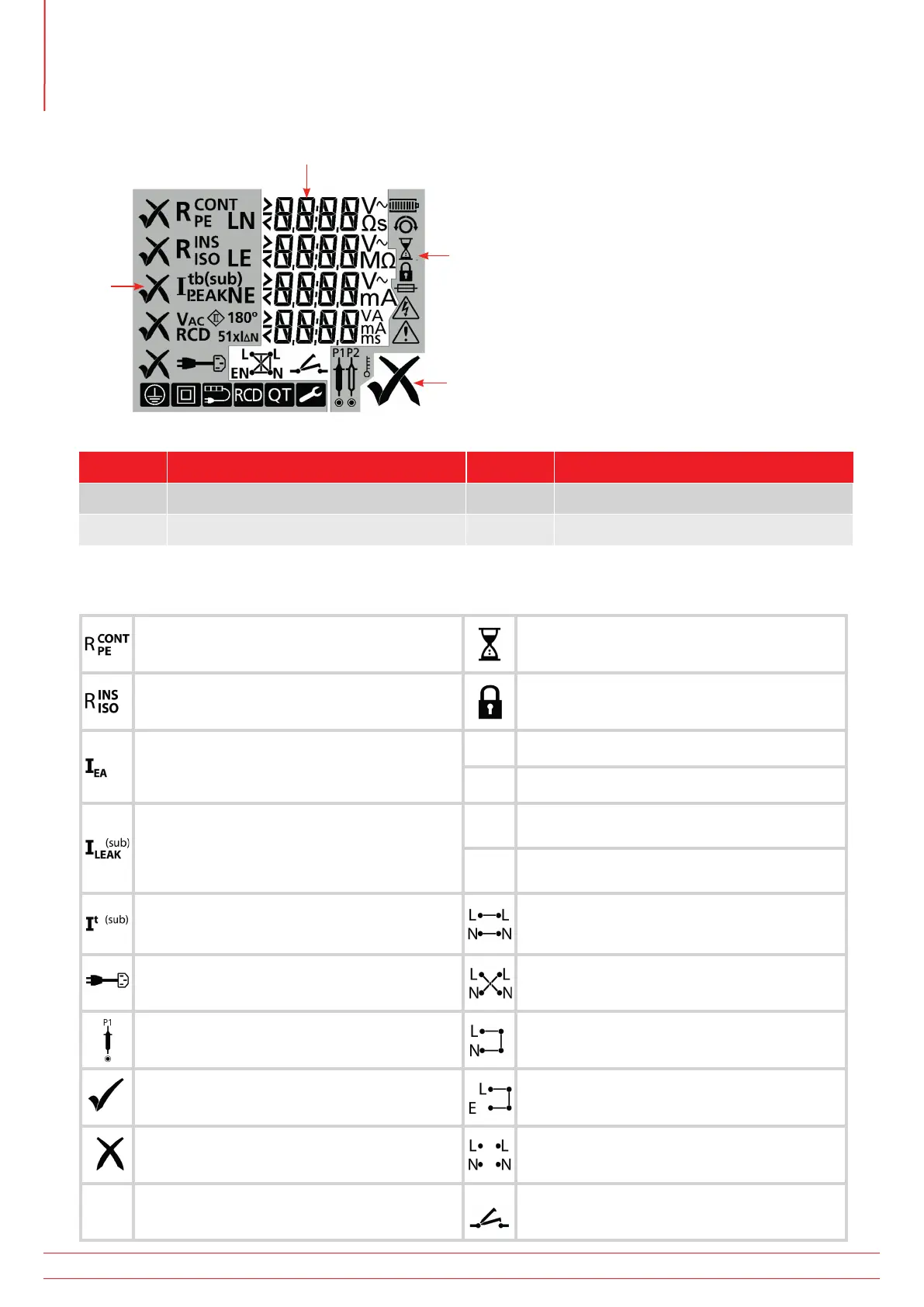

3.3 Display layout
1
2
3
4
Item Description Item Description
1
Test information
3
Information/warnings
2
Overall PASS/FAIL
4
Test results
3.4 Measurement display symbols
Continuity of the protective earth conductor Test in progress
Insulation resistance between the Live/Neutral
conductors and earth
Measurement locked ON
Alternative method:- 40 V AC leakage test
for protective conductor current and touch
current. Battery powered test
G
Notice: Refer to user guide
W
Resistance in ohms
(English language models) Alternative
method:- 40 V AC leakage test for protective
conductor current. Battery powered test
MW
Insulation resistance in Meg Ohms
(ohms x 1x10
6
)
mA
Leakage current in milliamps
(English language models) Alternative
method:- 40 V AC leakage test for touch
current. Battery powered test
Cable polarity correct
Power lead or Extension lead polarity test Live to Neutral cross polarity
Test probe P1 to be connected Live to Neutral short circuit detected
Test or overall test group passed Live to Earth short circuit detected
Test or overall test group failed Open circuit detected
f
Fuse failed
General warning - Appliance open circuit or
not switched on*
