Technical Manual Presence Detector SCN-x360xx.03
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 • Germany
Telephone: +49-2263-880 • knx@mdt.de • www.mdt.de
9
9

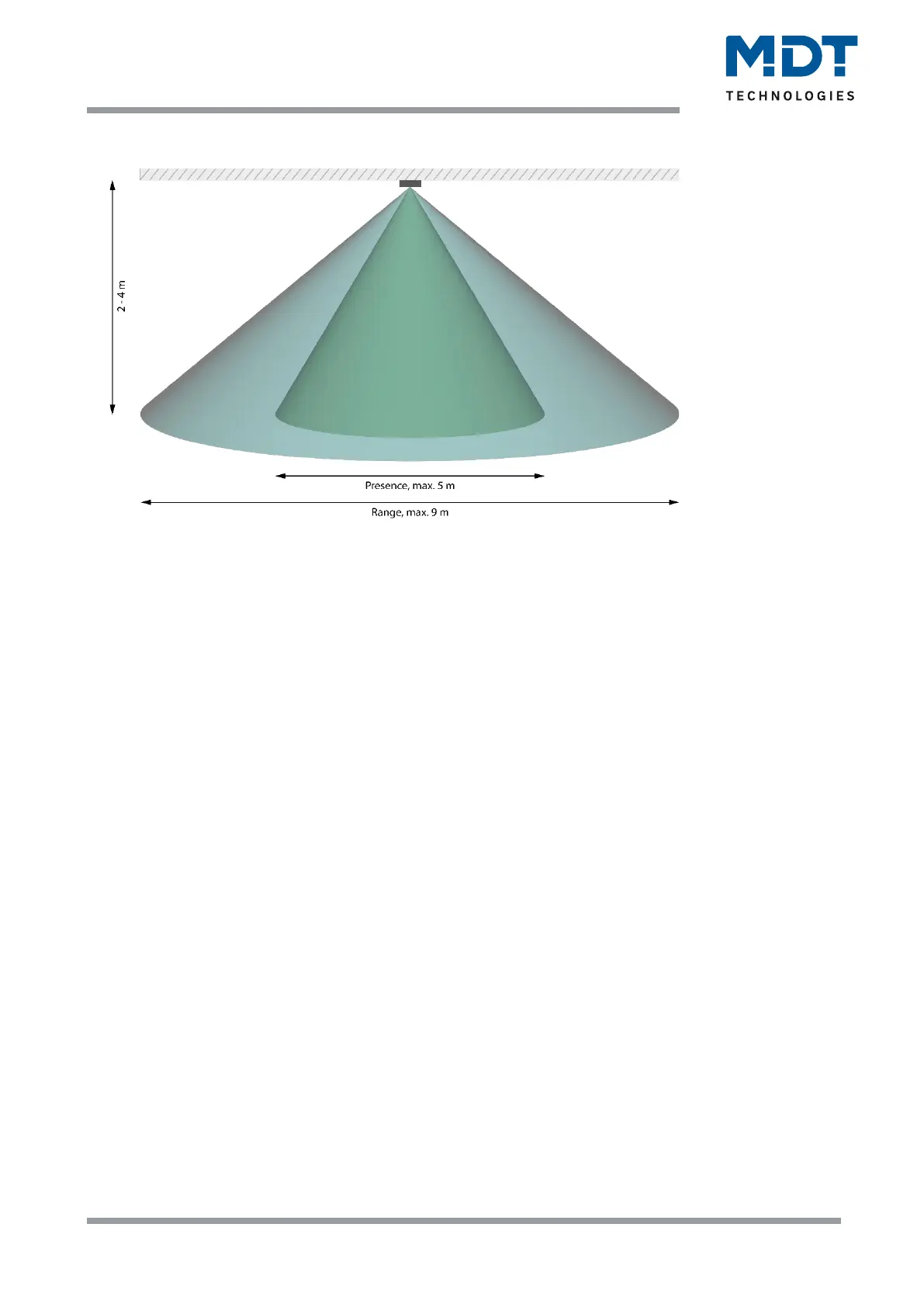

Example for detector with 2 sensors:
Figure 9: Detection area SCN-P360L2.03
2.5 Functions
The functions of the presence detector are divided into different areas. These can be individually
configured. The following menus are available for this purpose:
• General setting
General settings are used for basic configuration of the presence detector. Here, the usage of the
day/night object (separate switching objects for day/night), basic settings of sensitivity and
brightness, forced control as well as release of external push-button input are set.
• LED
Settings for the LEDs in the unit (green, red, white) can be made here.
• Scenes
Up to 8 scenes with different settings for the light channels 1–2/3/4 (depending on model) can
be activated.
• Brightness
The sending conditions of the measured brightness value, a threshold value with hysteresis, a lux
correction value and a room reflection factor can be set here. For detectors with constant light
control, the correction of the measured brightness value can be fixed via parameters or via a
Teach-in object.
