Technical Manual Presence Detector SCN-x360xx.03
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 • Germany
Telephone: +49-2263-880 • knx@mdt.de • www.mdt.de
7
7

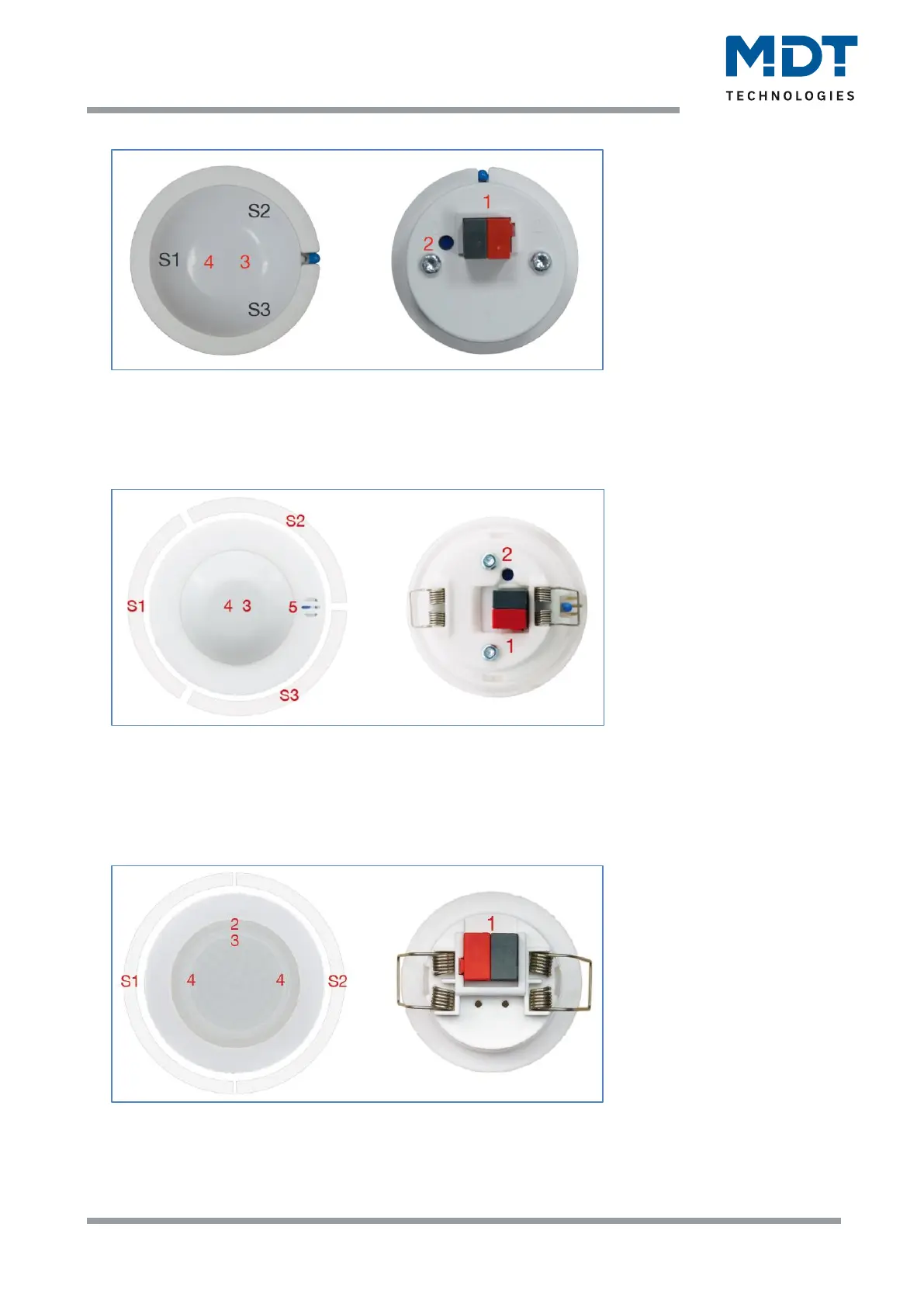

The following picture shows the structure of the Presence Detector MR16 with 3 sensors:
Figure 4: Structure and location of the sensors/LEDs – SCN-P360E3.03
1 = Bus connection terminal 3 = Red LED S1 – S3 = Sensor position
2 = Programming button 4 = White LED, night light
The following picture shows the structure of the Presence Detector 360° L3 TS:
Figure 5: Structure and location of the sensors/LEDs – SCN-P360L3.03
1 = Bus connection terminal 4 = LED, Night light
2 = Programming button 5 = Temperature sensor
3 = Red programming LED S1 – S3 = Sensor position (Areas are overlapping)
The following picture shows the structure of the Presence Detector 360° L2 IP44:
Figure 6: Structure and location of the sensors/LEDs – SCN-P360L3.03
1 = Bus connection terminal 4 = LED, Night light
2 = Programming button (Reed switch) S1 – S2 = Sensor position (Areas are overlapping)
3 = Red programming LED
