Technical Manual Presence Detector SCN-x360xx.03
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 • Germany
Telephone: +49-2263-880 • knx@mdt.de • www.mdt.de
6
6
2.4 Structure & Handling

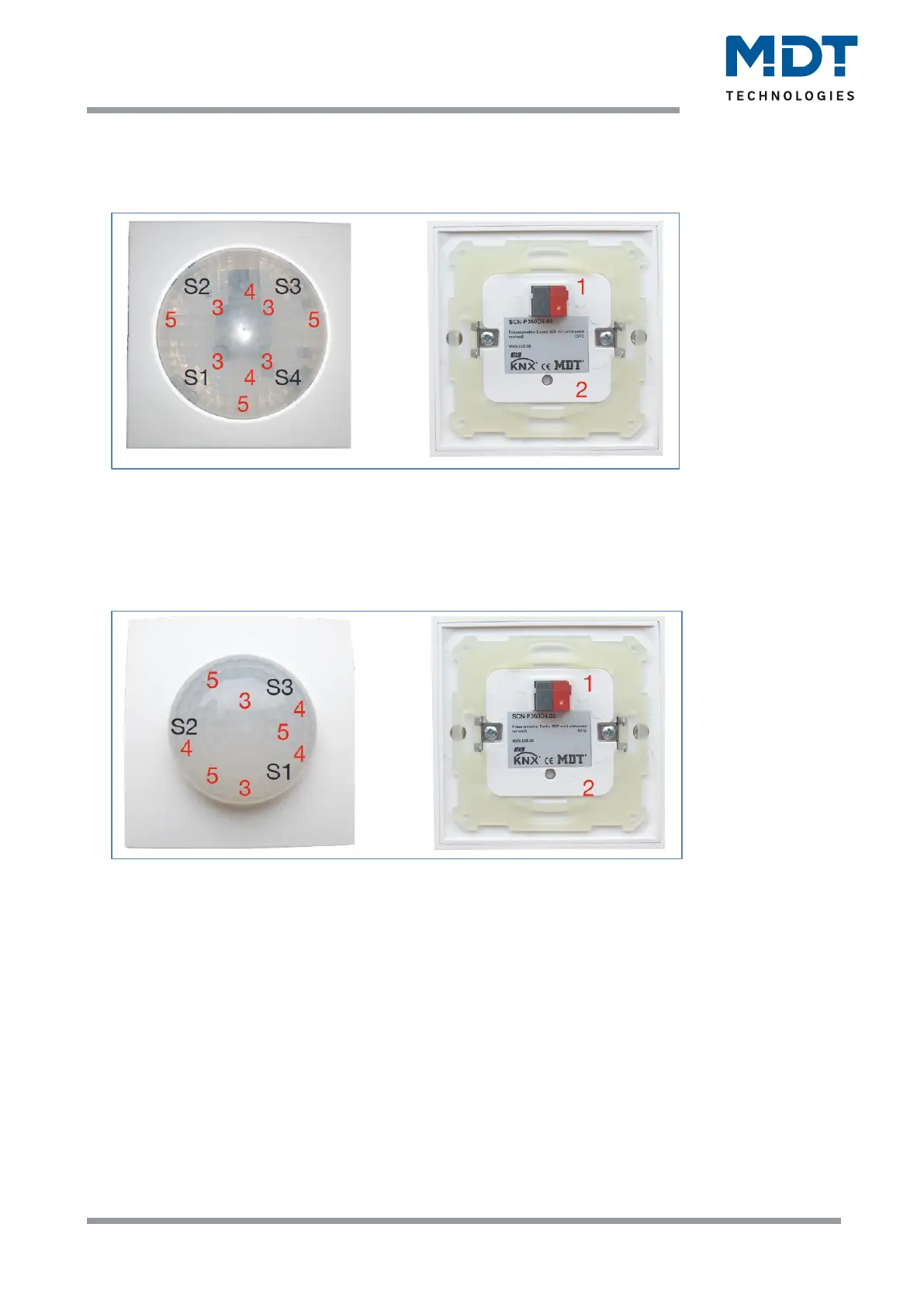

The following picture shows the structure of the presence detector with 4 sensors:
Figure 2: Structure and location of the sensors/LEDs – SCN-P360x4.03
1 = Bus connection terminal 3 = Green LED 5 = White LED, night light
2 = Programming button 4 = Red LED S1 – S4 = Sensor position
The following picture shows the structure of the presence detector with 3 sensors:
Figure 3: Structure and location of the sensors/LEDs – SCN-P/G360x3.03
1 = Bus connection terminal 3 = Green LED 5 = White LED, night light
2 = Programming button 4 = Red LED S1 – S4 = Sensor position
