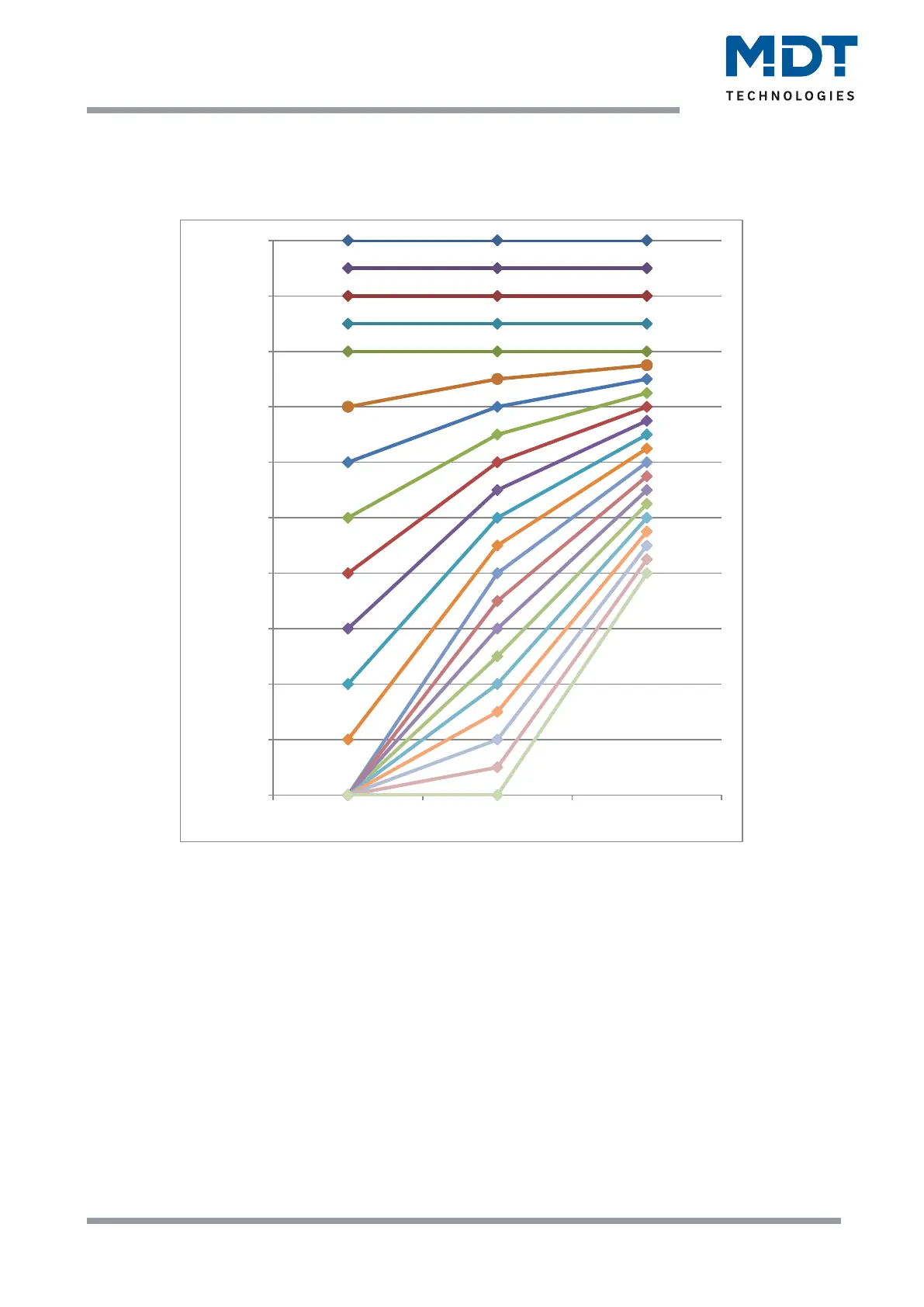

The following diagram illustrates the dimming behaviour for the 3 lighting groups with different
levels of sunlight. In this example, the Teach-in value was reached at an absolute dimming value of
80% with 450 lux, the influences were both set to medium.
Figure 34: Diagram – Behavior of proportional zone control
It is obvious that depending on the intensity of the sunlight, the window side is dimmed down more
than the middle, and the wall side correspondingly more slowly.
When the solar radiation decreases again, all light strips are regulated to 80% again.
If the light intensity is set, for example, from 450 lux to 300 lux (relative dimming, absolute dimming
or scene), the control factors are only used automatically at the correct dimming value. In this case
for example, 50%. Without sunlight, all three light strips then regulate to 300 lux with 50% dimming
value. With sunlight, the dimming values below 50% shift accordingly.
With the new "proportional master/slave constant light control", all disadvantages of the
commercially available "offset master/slave constant light control" with fixed offset have been
eliminated.
0,0
10,0
20,0
30,0
40,0
50,0
60,0
70,0
80,0
90,0
100,0
Window Main Wall
Dimming values
