Technical Manual Presence Detector SCN-x360xx.03
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 • Germany
Telephone: +49-2263-880 • knx@mdt.de • www.mdt.de
33
33
Extended application example 1:
The room is entered, the detector detects presence and switches on the lighting group. However, the
light should be switched off for the duration of the presence and automatically switched on again
when the room is entered again.

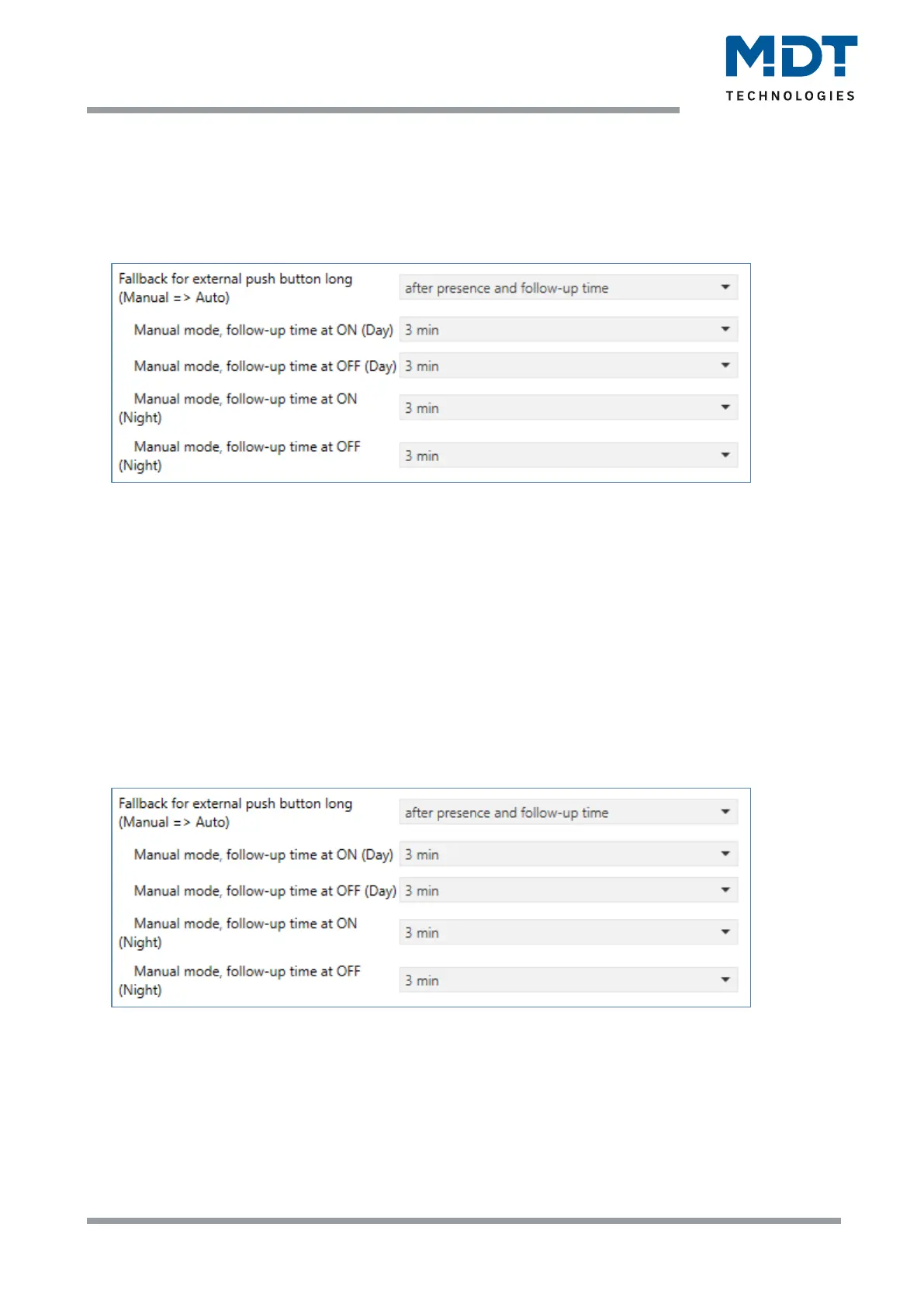

To implement this scenario, you have to set the parameter "Fallback for external push button long"
in the “General settings” as follows:
The follow-up time for the pushbutton can be set as desired according to your own requirements.
Now the object 4 - external push-button long (light channel 1) is connected to the push-button which
is to switch off the light.
After pressing the button, the light remains OFF (manual mode state, OFF) as long as the detector
detects presence and then for the set follow-up time for the external button. The light is then
switched off and the light channel changes to the state "Auto mode, ready".
Extended application example 2:
The room is entered, the detector detects presence, but the light is not switched on because the set
brightness threshold is not exceeded. However, the light should be switched on for the duration of
the presence and switched off again automatically after leaving the room.
To implement this scenario, you have to set the parameter "Fallback for external push button long"
in the “General settings” as follows:
The follow-up time for the pushbutton can be set as desired according to your own requirements.
Now the object 4 - external push-button long (light channel 1) is connected to the push-button which
is to switch on the light.
After the push-button has been pressed, the light remains ON (manual mode state, ON) as long as
the detector detects presence and then for the set follow-up time for the external push-button. The
light is then switched OFF and the light channel changes to the state "Auto mode, ready".
