Technical Manual
LED-Indicator SCN-LED55.01/SCN-GLED1x.01
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Phone: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
14
14
4.2 LED-Settings
Every of the 12 LEDs can be adjusted and controlled individually. The parameters for LED 1 are
described. LEDs 2-12 have the same parameters.
4.2.1 LED Control
Below the settings for the LED control are shown:

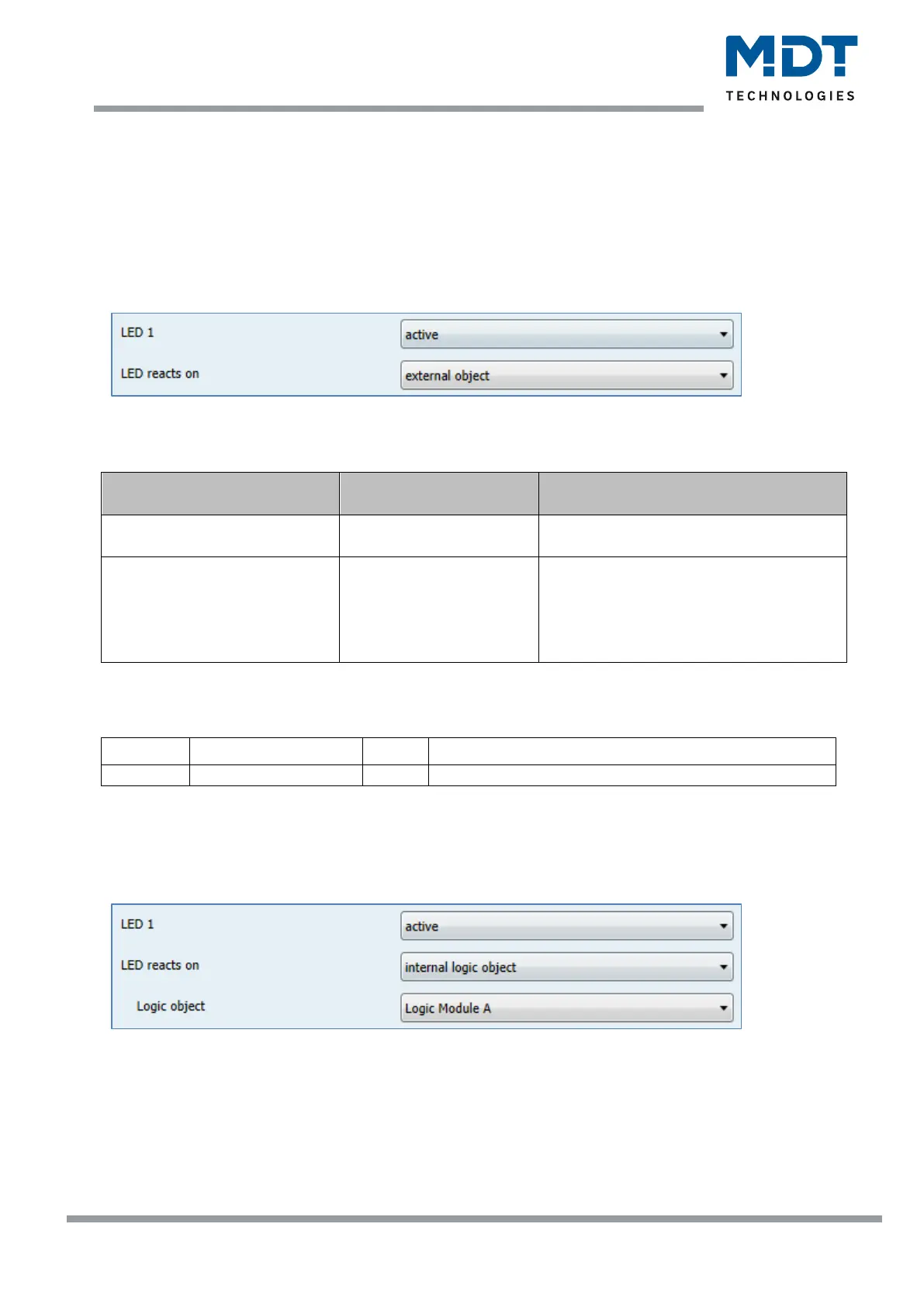

Figure 4: LED Control
The following table shows the possible settings:
ETS-text
Dynamic range
[default value]
comment
LED 1
▪ active
▪ not active
Activation/Deactivation of the LED
LED reacts on
▪ external object
▪ internal logic
object
▪ internal converter
object
Selection of the controlling of the LED
Table 5: LED-Control
If the parameter „LED reacts on“ is set to external object, an additional object is shown, which can be
connected individually:
Number
Name
Length
Usage
0
LED 1
1 Bit
Controlling LED 1
Table 6: LED Control via external object
Furthermore, the LED can respond to internal objects. Both the internal logic objects and the internal
converter objects are available. In order to reduce the design effort, in this case the connection is
made internally. This additional parameter is displayed, which sets the internal connection.
For the setting "LED responds to internal logic object" looks as follows:
Figure 5: LED control via internal logic object:
In this example, the LED is switched in response to the output of the first logic function. This driving
course is designed so that the output of logic module is a bit value. If the logic module is set as a byte
value or scene, the LED is turned off with the value 0, all others turn the LED on.
