Technical Manual
CO2 / VOC Combi Sensor 55 [SCN-CO2MGS.02]
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 • Germany
Phone: +49-2263-880 • knx@mdt.de • www.mdt.de
35
35

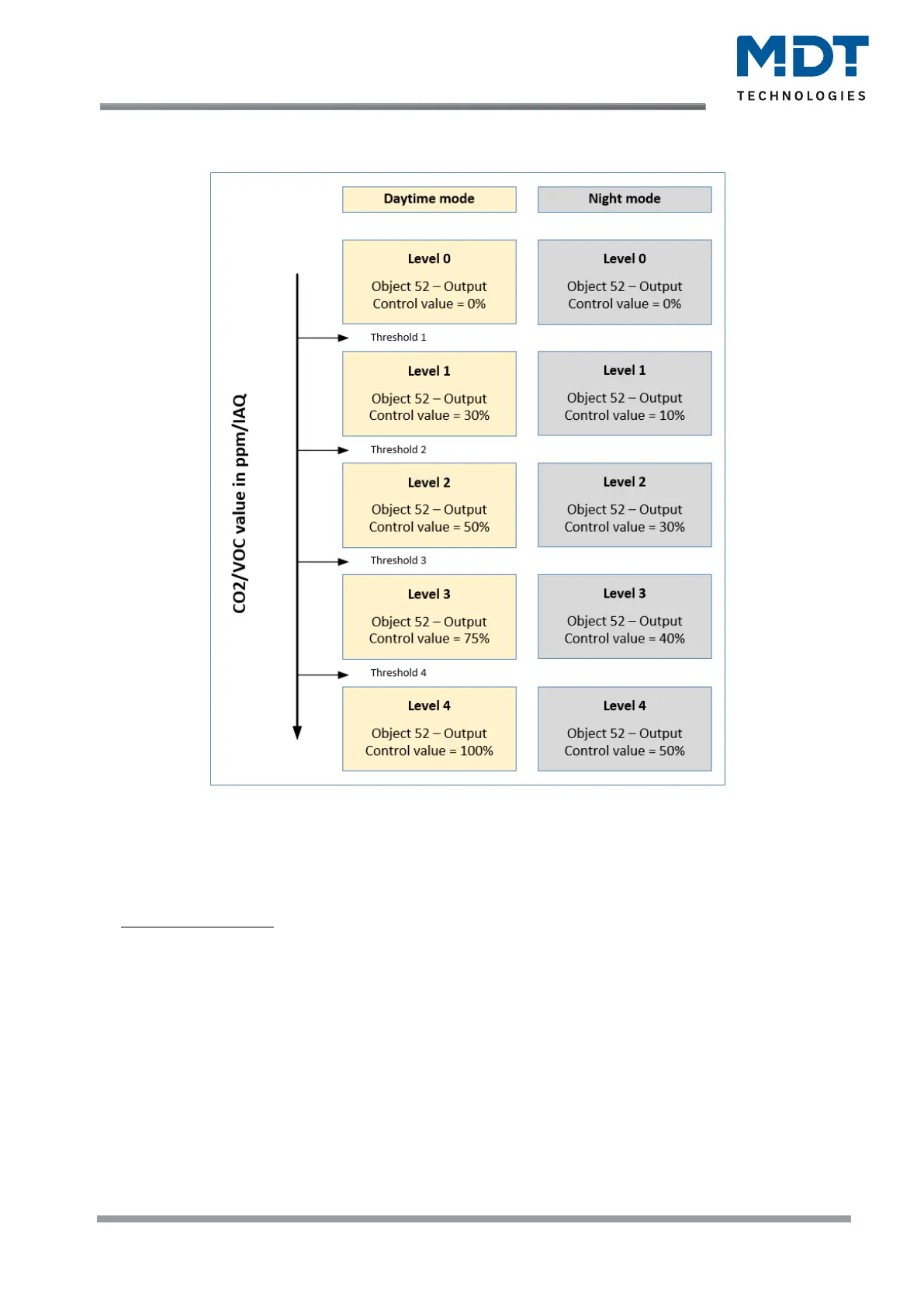

The following figure shows the switching behaviour of the outputs depending on the threshold
values:
Figure 17: Diagram – Output: Step controller as Byte
Hysteresis
The hysteresis is used to avoid too frequent switching between the different levels. The parameter
"Hysteresis in" defines the unit of the hysteresis. The definition depends on the selection in the
"Controller actual value" parameter.
Example of hysteresis:
Threshold value level 1: 600 ppm. Hysteresis in "percent": "10%".
At 630 ppm the control switches from level 0 to level 1. At 570 ppm the control switches from level
1 back to level 0. If the measured value changes within the two limits, there is no changeover.
Control value for „Day“/“Night“ (Level 1 – 4)
The absolute values of the different levels are defined here. If the "Day/Night" object is activated in
the "General Settings" menu, different values can be defined for "Day" or "Night" operation. If the
"Day/Night" object is not active, the text addition "for Day" or "for Night" is omitted and only one
control value can be defined in each case.
