Technical Manual – Push Button Smart 55/63
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Phone: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
51
51
Presentation of the function:
Since different data point types can be set for the short and long button, either the function for the
long button or the function for the short button can be displayed.
The object "Status for display" therefore appears only for the function which is displayed.
The following table shows the available communication objects:
Number
Name
Length
Usage
0
Push button 1 short:
Push buttons 1/2 short: –
Forcible control, Percent value...
Transmission of the switching value for short
button; DPT depending on the parameter
setting
1
Push button 1 short:
Push buttons 1/2 short: –
Status for toggle/display
1 Bit
Receiving the status for short button.
Only for function “Toggle”
1
Push button 1 short:
Push buttons 1/2 short: –
Status for display
Receive the status for the short button.
DPT depending on the parameter setting.
For 2-bit, scene, RGB no status
2
Push button 1 long:
Push buttons 1/2 long: –
Forcible control, Percent value...
Transmission of the switching value for long
button; DPT depending on the parameter
setting
3
Push button 1 long:
Push buttons 1/2 long: –
Status for toggle/display
1 Bit
Receiving the status for long button.
Only for function “Toggle”
3
Push button 1 long:
Push buttons 1/2 long: –
Status for display
1 Bit
Receive the status for the long button.
DPT depending on the parameter setting.
For 2-bit, scene, RGB no status
Table 40: Communication objects – Switch/send values short/long (with 2 objects)
Presentation:
If the button function “Switch short/long” is selected, either the function of the short key or the
function of the long key can be displayed. The display settings which are shown depend on whether
the function to be displayed was configured as switching (switching, switching on, switching off,
toggling) or as sending values.
If the function was parameterised as "switch", the following settings are possible for the display:
The switching function can represent the two possible states (On/Off) by means of freely selectable
symbols with a freely selectable colour. The evaluated status is always visualised:

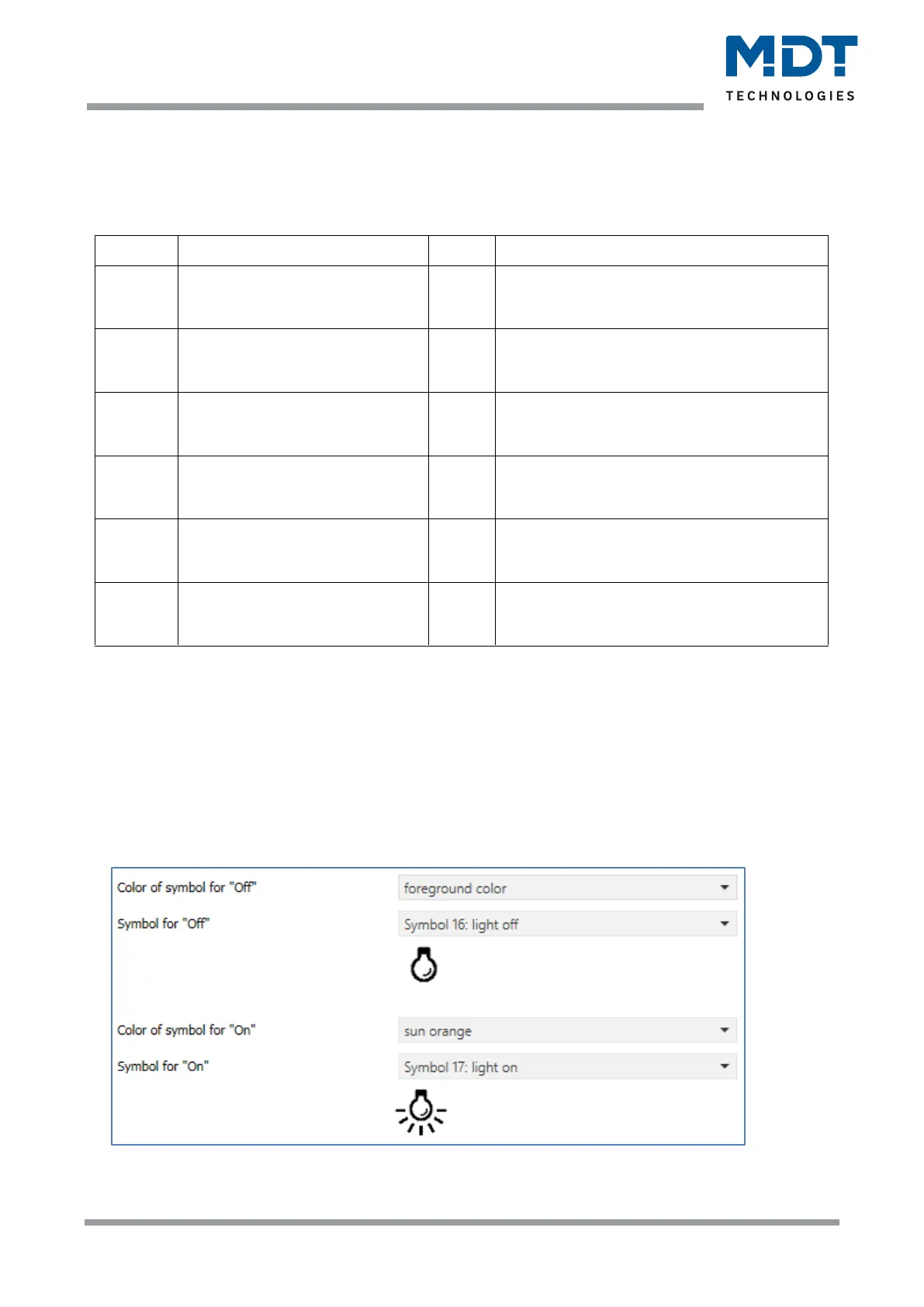

Figure 26: Presentation of the "switch" function
