Technical Manual – Push Button Smart 55/63
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Phone: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
45
45
4.6.5.4 Subfunction: Send value by state
Single-Button function
The function "Send values - send value by state" can send a fixed value according to the set datapoint
type when the key is pressed and a fixed value according to the set datapoint type when the key is
released.
The following figure shows the available settings:

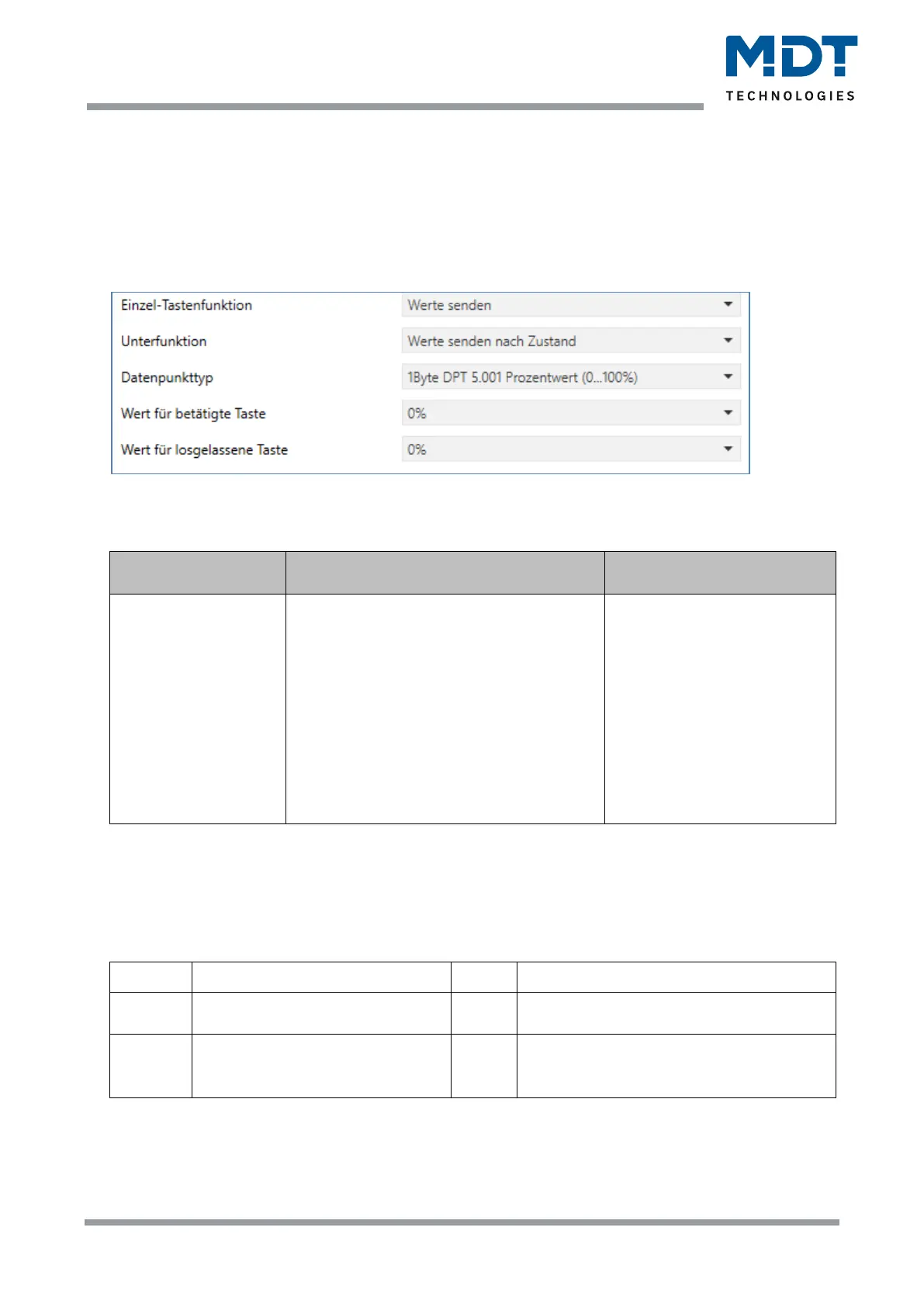

Figure 22: Settings – Send values - Subfunction: Send value by state
The following table shows the available settings:
ETS-Text
Dynamic range
[Default value]
Comment
Datapoint type
▪ 2Bit DPT 2.001 Switch Control
▪ 1Byte DPT 5.001 Percent (0…100%)
▪ 1Byte DPT 5.005
Decimal factor (0…255)
▪ 1Byte DPT 17.001 Scene number
▪ 2Byte DPT 7.600
Color Temperature (Kelvin)
▪ 2Byte DPT 9.001 Temperature (°C)
▪ 2Byte DPT 9.004 Brightness (Lux)
▪ 3Byte DPT 232.600
RGB Value 3x(0…255)
Setting the type of data point
to be sent
Table 33: Settings – Send values - Subfunction: Send value by state
The value to be sent can be set according to the set datapoint type for pressing as well as for
releasing the key.
The following table shows the available communication objects:
Number
Name
Length
Usage
0
Push button 1 –
Forcible control, Percent value...
Transmission of the switching value; DPT
depending on the parameter setting
3
Push buttons 1: –
Status for display
1 Byte
2 Byte
Receiving of the status value.
Not available for “switch control”, “scene”
and “RGB value”
Table 34: Communication objects – Send values - Subfunction: Send value by state
