4.6 Push Button Functions
4.6.1 Identical Parameter – Blocking Object
The blocking object can be activated both for grouped buttons, e.g. button pair 1/2, and for
individual buttons, e.g. button 1. If the blocking object is active, a communication object is displayed
for the corresponding push-button. In this way, up to 4 blocking objects can be parameterised for
one device. If the blocking object is assigned a logical 1, the corresponding push-button is "blocked"
and can therefore no longer be switched. A logical 0 cancels the lock.
he following table shows the associated communication object:
Number
Name
Length
Usage
9
Blocking Object
1 Bit
blocks associated pushbutton if the group
address gets logical 1
Table 20: Identical communication object – Blocking object
4.6.2 Identical Parameter – Display/Presentation
The display/presentation of a button function is configured identically for all keys or key pairs. This
determines how the keys are labelled and whether a function name or a value is to be stored with
the symbol.
The display/presentation of the symbols is described under the corresponding key functions.
The following parameters for the type of presentation are identical (here: two-button function):

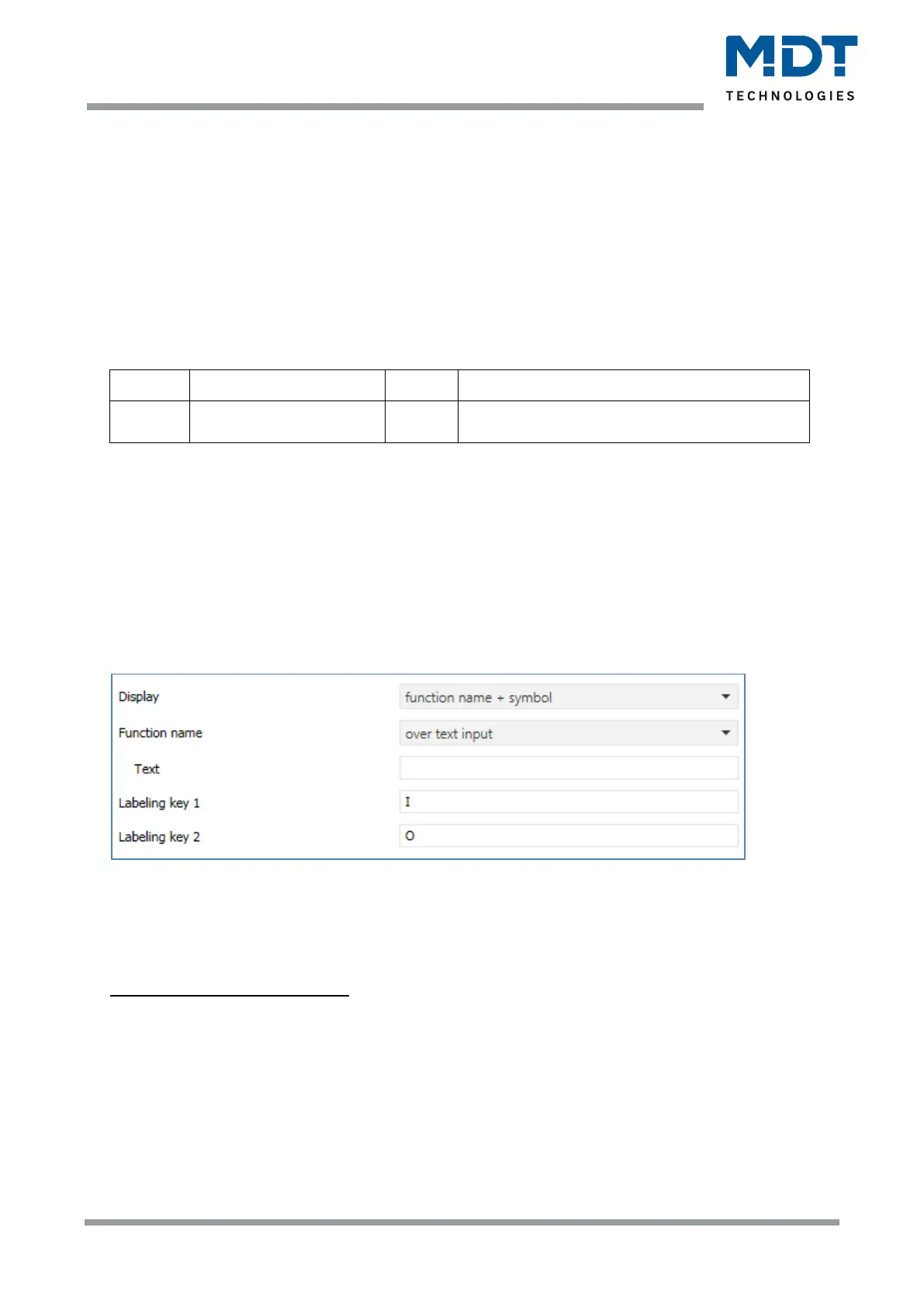

Figure 11: Identical Parameter – Display/Presentation
A symbol is always displayed for the buttons. In addition, a function name or a value can be displayed.
The setting for whether these appear above or below the symbol is made in the menu " Button
settings".
Only with the two-button function is it also possible to insert a button label for the two buttons. Two
text fields are available for texts of up to 6 bytes.
The function name can be accessed via various parameter settings. This can be done, for example,
from text or status messages, via text input or as dynamic text according to status.
If you select value + symbol, the respective status value received on the "Status for display" object is
displayed.
If the status object for a function is not linked, the switching status is visualised; otherwise the
transmitted value of the button is displayed.
