Technical Manual – Push Button Smart 55/63
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Phone: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
34
34
The following table shows the available communication objects:
Number
Name
Length
Usage
0
Push buttons 1/2 – Switch
1 Bit
Switching function of the buttons
2
Push buttons 1/2 group long: –
Switch
1 Bit
Switching function of the buttons with
long keystroke
3
Push buttons 1/2 –
Status for display
1 Bit
Status to update display/symbol. Has
to be connected to the status of the
actuator to be switched
4
Push buttons 1/2 group extra long: –
Switch
1 Bit
Switching function of the buttons with
extra long keystroke
Table 23: Communication objects – Two-button function: Switch
4.6.4.2 Subfunction: Switch
Single-Button function
Here the key sends the respective fixed value when pressed.
The following figure shows the available settings:

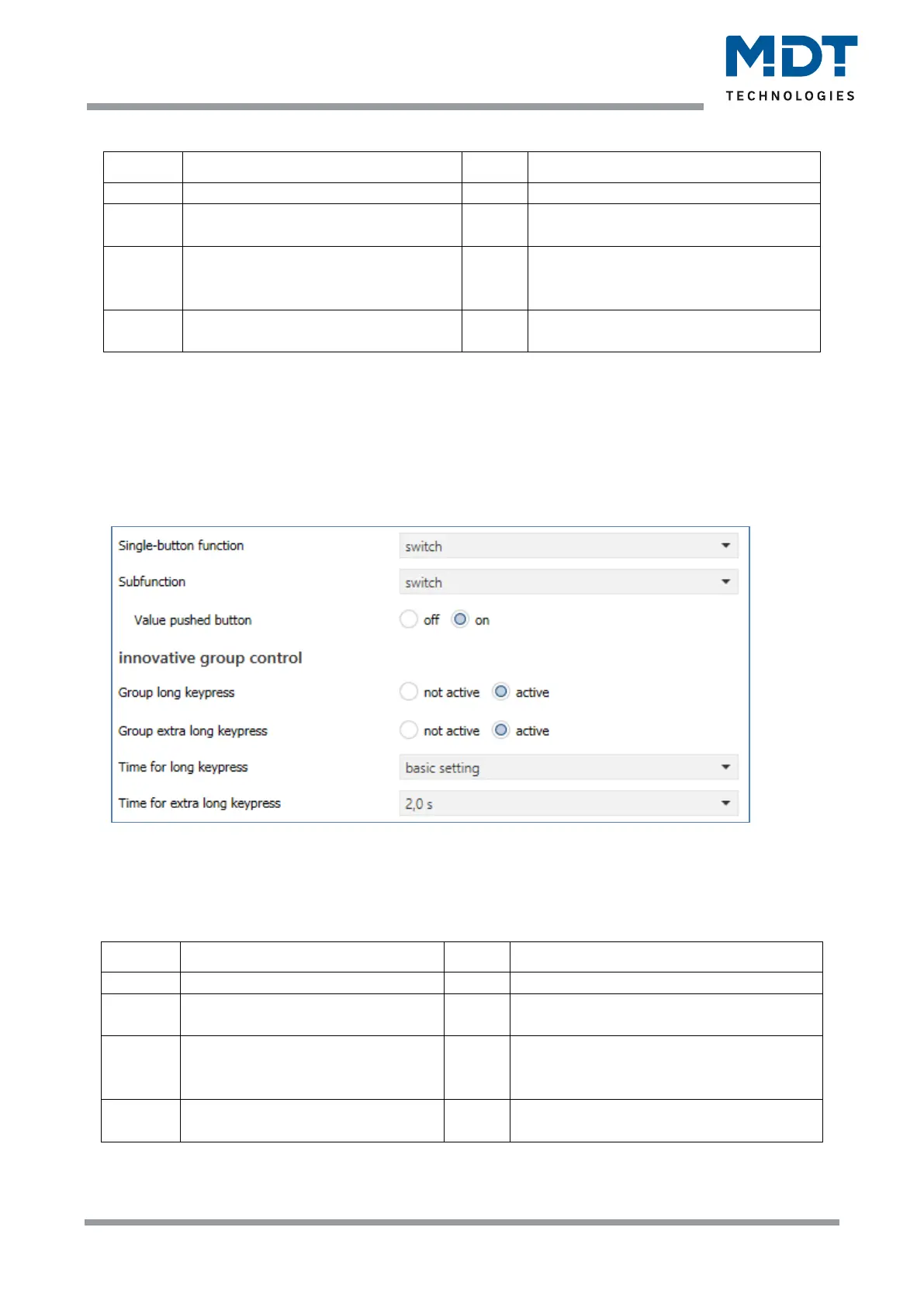

Figure 15: Settings – Single-button function: Switch - Subfunction: Switch
For details of the innovative group control, see 4.6.4 Switch.
The following table shows the available communication objects:
Number
Name
Length
Usage
0
Push button 1 – Switch
1 Bit
Switching function of the button
2
Push button 1 Group long: – Switch
1 Bit
Switching function of the button with long
keystroke
3
Push button 1 – Status for display
1 Bit
Status to update display/symbol. Has to
be connected to the status of the actuator
to be switched
4
Push button 1 Group extra long: –
Switch
1 Bit
Switching function of the button with
extra long keystroke
Table 24: Communication objects – Single-button function: Switch - Subfunction: Switch
