Technical Manual
Blind Push Button Smart 55 BE-JTA5504.01
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Phone: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
32
32
Representation of slats (only available with selected hanging "Blinds“))
The position of the slats can also be displayed. The button evaluates the information from 'Object 4 -
Status slat position'. The position of the slats can be represented by 3 freely selectable symbols and
freely selectable colours:

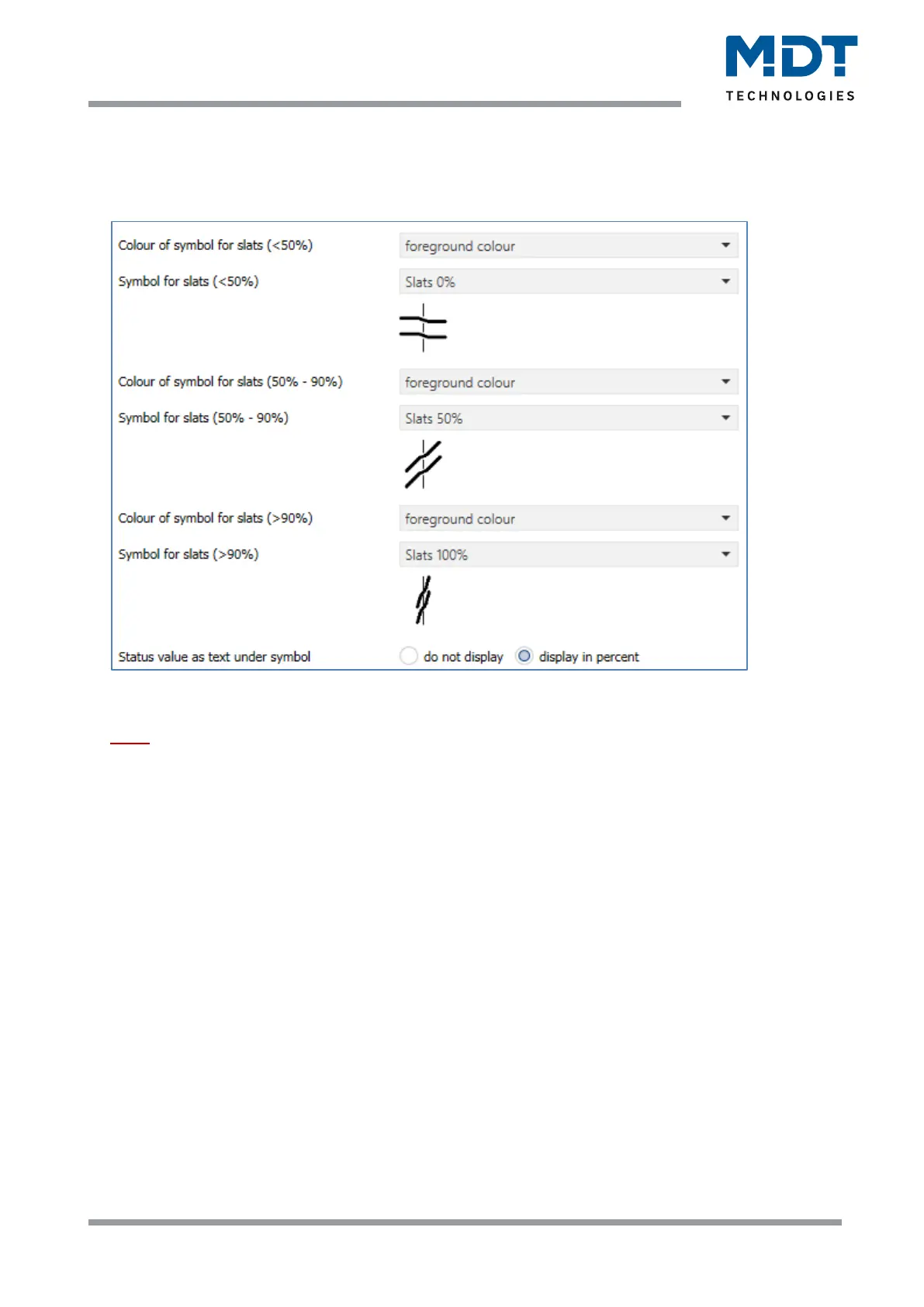

Figure 17: Settings – Representation of symbols for Slats
Note: The settings "Colour of symbol for slats" are only available if the colour mode is set to
"coloured" in the "Display settings" menu!
By activating "Status value as text under symbol", the current status can additionally be displayed as
a percentage value under the symbol. The evaluation is also carried out here via the status feedback
of "Object 4 - Status current slat position".
