Technical Manual
Glass Push-button II Smart & Push-button Smart 86 [Series .02]
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 • Germany
Phone: +49-2263-880 • knx@mdt.de • www.mdt.de
84
84
4.5 Status LED
Depending on the configuration of the push-button, up to 14 status LEDs can be configured. One LED
can be configured per function, which are then marked with "LED 1 - 12" in the parameters. In
addition, "LED A/B" can be controlled separately in standby, e.g. to indicate a status during Standby.
4.5.1 LED basic settings

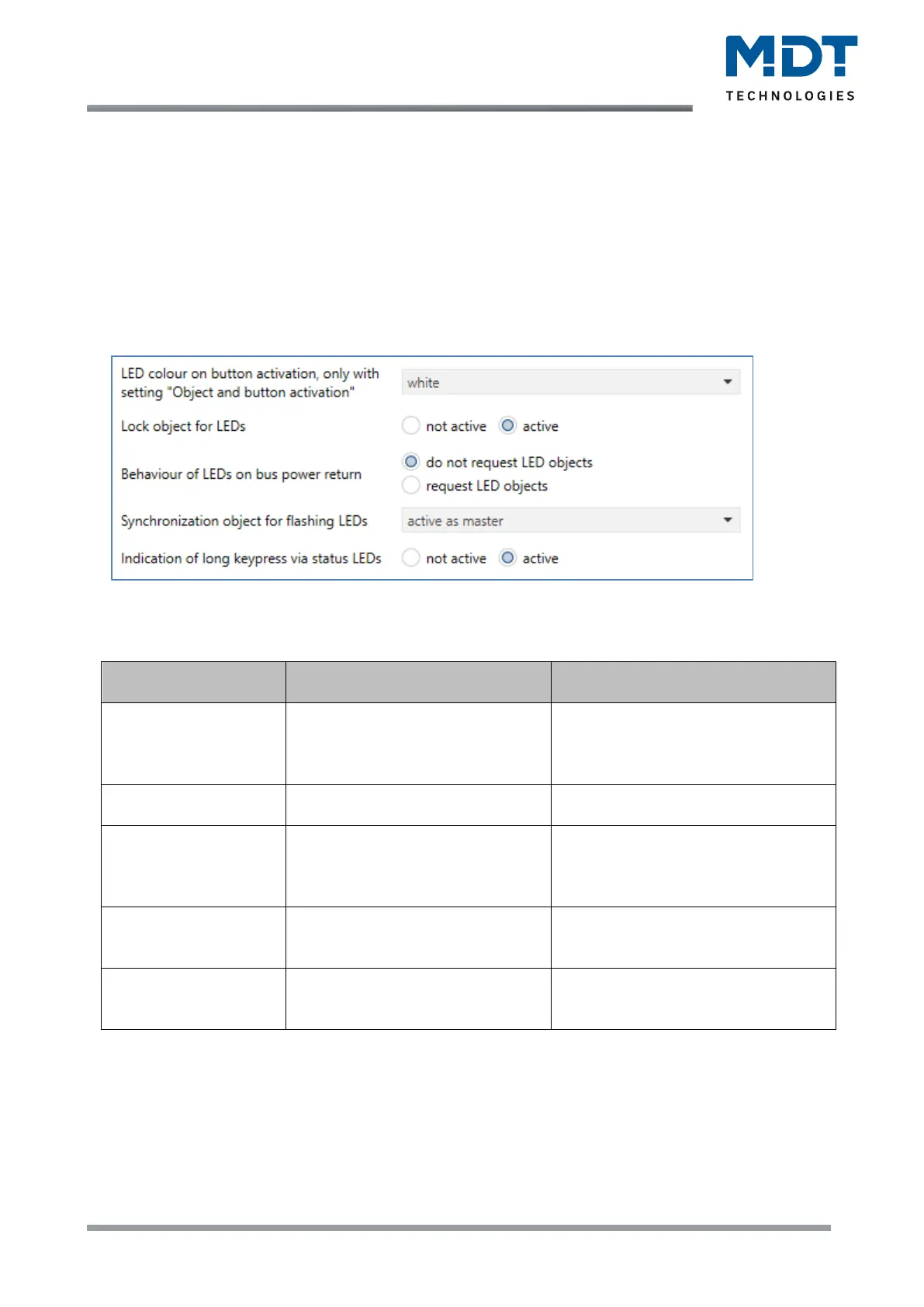

The LED basic settings affect all active status LEDs. The following figure shows the available settings:
Table 67: Basic settings – LED
The following table shows the available settings:
ETS-Text
Dynamic range
[Default value]
Comment
LED-colour on button
activation, only with
setting “Object and
button activation”
any colour
[white]
Parameter is only used with double
assignment: Button activation +
internal/external object.
Lock object for LEDs
▪ not active
▪ active
Activates a lock object which can
disable (= switch off) all LEDs.
Behaviour of LEDs on
bus power return
▪ do not request LED objects
▪ request LED objects
Setting whether to actively request
the objects after a reset.
Only active when "LED reacts to
external object".
Synchronization object
for flashing LEDs
▪ not active
▪ active as Master
▪ active as Slave
Activation of a synchronisation object
for the LEDs.
Indication of long
keypress via status
LEDs
▪ not active
▪ active
When activated, a long keystroke is
indicated by the status LED switching
off.
Table 68: Basic settings – LED
