Technical Manual
Glass Push-button II Smart & Push-button Smart 86 [Series .02]
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 • Germany
Phone: +49-2263-880 • knx@mdt.de • www.mdt.de
55
55
4.4.5.4 Subfunction: Send value by state
Single-Button function
Slap-Button
This function allows a fixed value to be sent according to the selected datapoint type when pressing
or releasing the button.
The following picture shows the available settings:

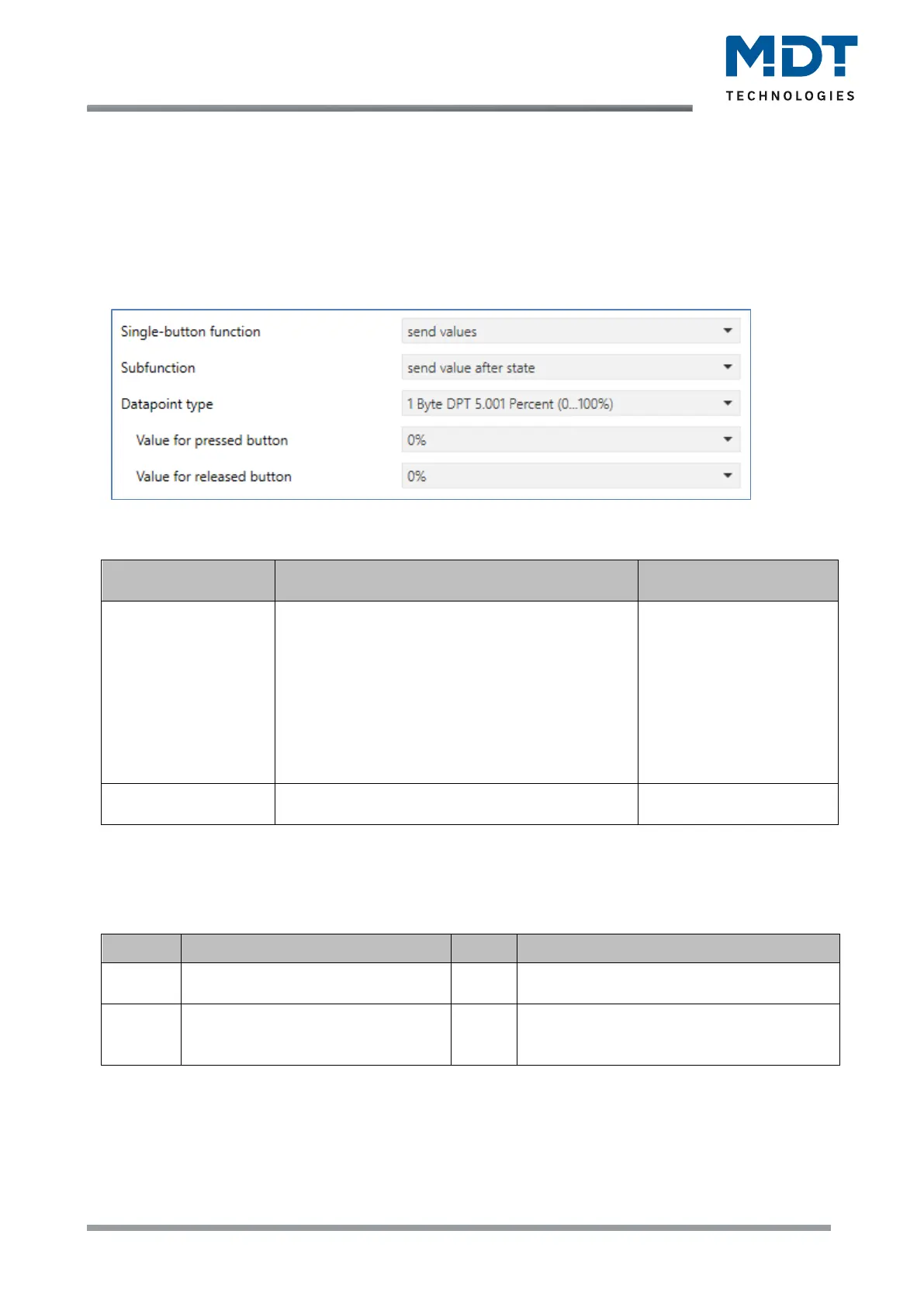

Figure 28: Settings – Send values - Subfunction: Send value by state
The following table shows the available settings:
ETS-Text
Dynamic range
[Default value]
Comment
Datapoint type
▪ 2 Bit DPT 2.001 Switch Control
▪ 1 Byte DPT 5.001 Percent (0…100%)
▪ 1 Byte DPT 5.005 Decimal factor (0…255)
▪ 1 Byte DPT 17.001 Scene number
▪ 2 Byte DPT 7.600 Colour Temperature
(Kelvin)
▪ 2 Byte DPT 9.001 Temperature (°C)
▪ 2 Byte DPT 9.004 Brightness (Lux)
▪ 3 Byte DPT 232.600 RGB Value 3x(0…255)
Setting the type of
datapoint to be sent.
Value for pressed /
released button
any value according to the set datapoint type
Setting of the values to be
sent.
Table 37: Settings – Send values - Subfunction: Send value by state
The value to be sent can be set according to the set datapoint type for pressing as well as for
releasing the key.
The following table shows the available communication objects:
Number
Name/Object Function
Length
Usage
0
F1: –
Forcible control, Percent value …
Sending the value.
DPT depending on the parameter setting
3
F1: – Status for display
Receiving the status.
DPT depending on parameter setting.
Status for RGB value not available
Table 38: Communication objects – Send values - Subfunction: Send value by state
