Rear Panel Connections and Switches
1. SWITCHED OUTLETS
These outlets can be turned on and o using the
front panel OUTLET CONTROL knob or rear panel
POWER CONTROL IN connectors. If over/under
voltage protection has been enabled, these outlets
will switch o should that condition occur.
2. POWER CONTROL 1, 2, 3
IN connectors are used to turn on the front
panel lighting and display and then turn on the
SWITCHED OUTLET that has been congured to
respond to its associated POWER CONTROL IN.
The OUT connectors pass the POWER CONTROL
IN signal onto other system components.
3. UNSWITCHED OUTLET
This outlet is always on whenever the MIP200 is
connected to a live AC circuit. If over/under voltage
protection has been enabled, the outlet will switch
o should that condition occur.
4. MAIN POWER CONTROL
The IN connector is used to turn on the front
panel lighting and display and then turn on any
SWITCHED OUTLET that has been congured
to respond to MAIN POWER CONTROL IN.
The OUT connector generates a 12V DC signal
whenever the MIP200 is powered on.
5. CIRCUIT BREAKER
Should the MIP200 input current exceed its
rating, the CIRCUIT BREAKER will activate and
disconnect AC power to the MIP200. Should this
happen the tip of the breaker will pop out. Reset the
breaker by pushing in on the tip.
6. RS232 CONTROL
This connector is used for external control devices
that use RS232 protocol. Control of the SWITCHED
OUTLETS as well as trim menu functions can be
controlled using pre-dened RS232 commands.
7. AC Input
Connect to a live AC outlet according to the AC
input rating label.

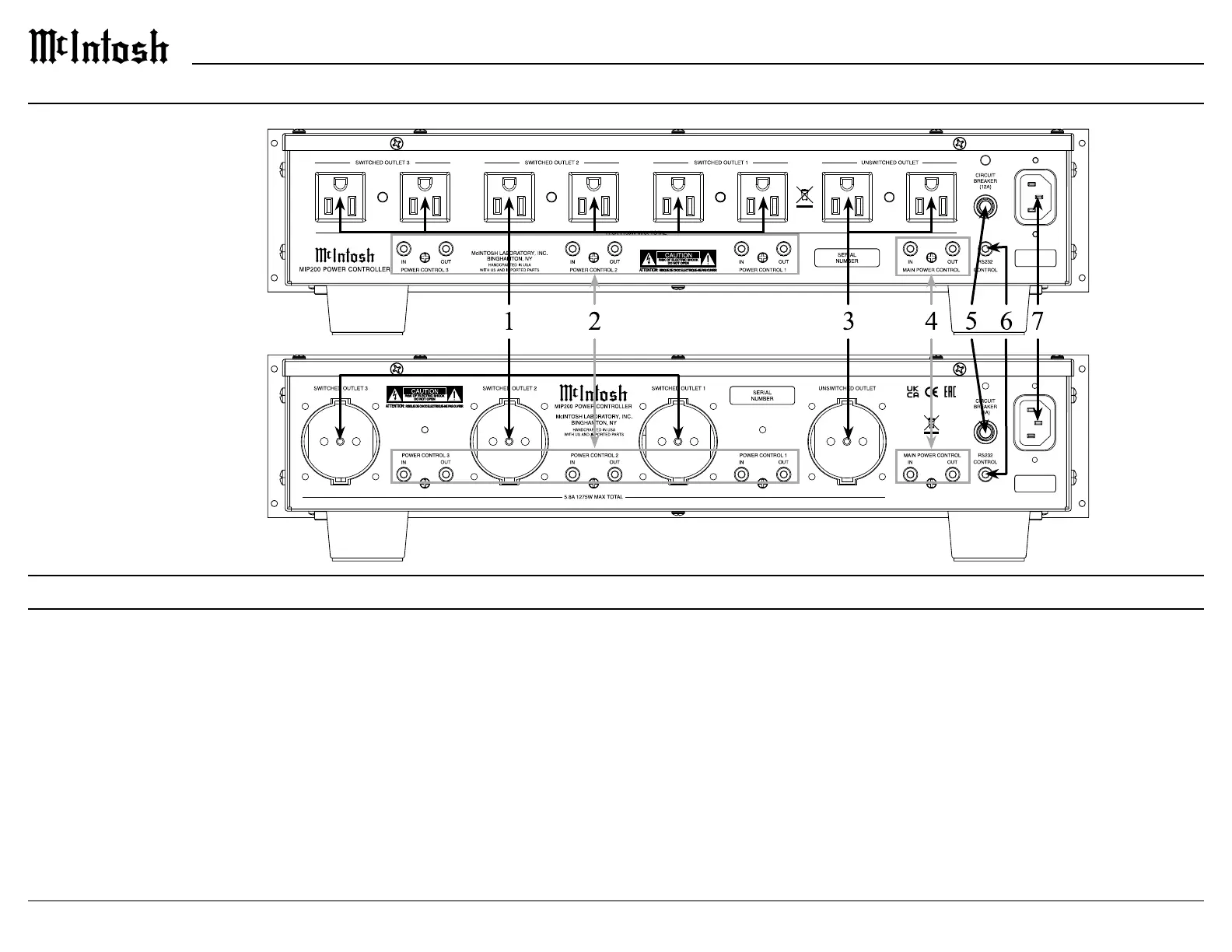

MIP200 Rear Panel
100V - 120V
220V - 240V
