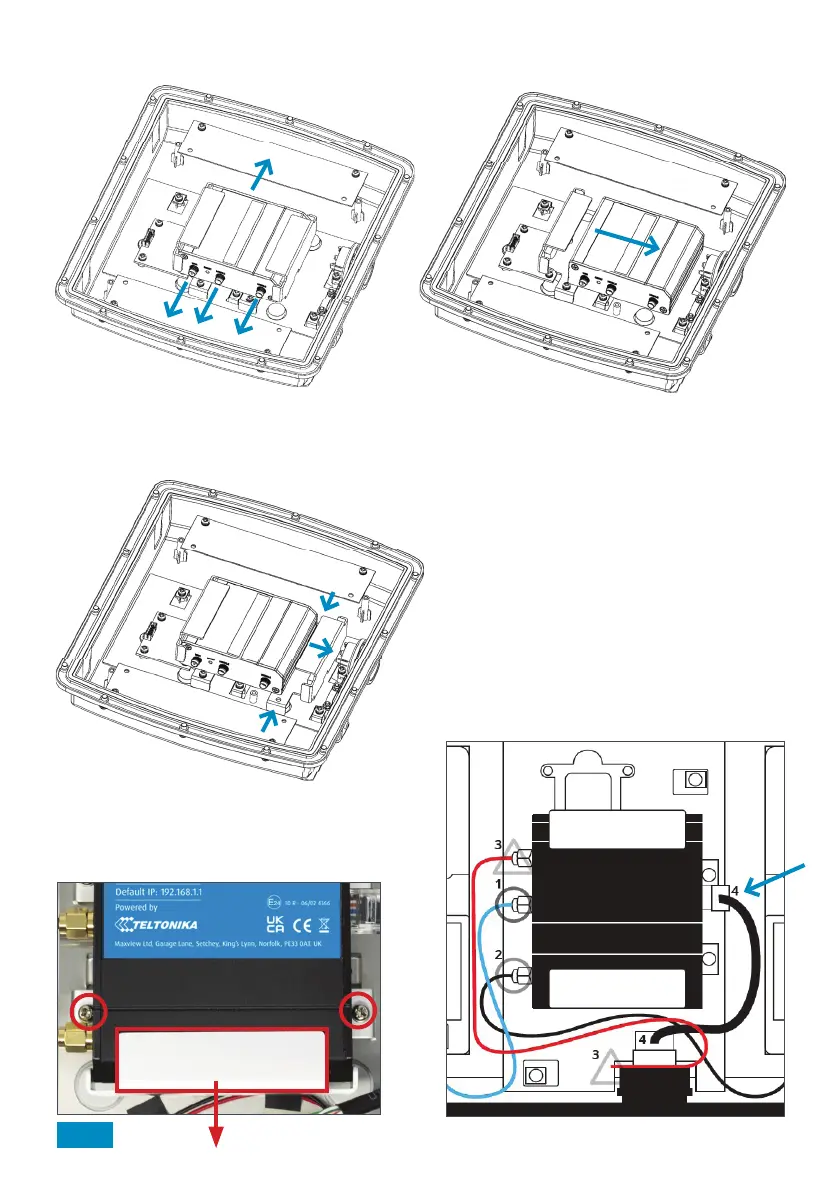

Removal and re-inserting router back into the antenna enclosure

3. The router can now be slid downwards

and then easily removed from the antenna

enclosure.

2. Remove the 2 screws from the

bottom cradle. Once removed, pull away

the cradle from the router. Reference image

below which highlights the 2 correct screws

for removal of the bottom cradle.

Firstly remove the 14 screws on the rear of the

antenna enclosure with a Phillips screwdriver.

Next, remove the 4 connecting cables.

4. To re-insert the router back into the antenna

enclosure, simply reverse these 3 steps.

The ethernet cable MUST be inserted into the LAN port.

Cable configuration

1. 4G/LTE antenna (mobile)

2. 4G/LTE antenna (mobile)

3. WiFi antenna cable (WiFi)

4. 2x4 pin housing to RJ45 (Cat5e) 150mm cable (LAN)

LAN

WAN

✔

✘
