28
8/22 Rev. R 132617 ©2022 Refrigerated Solutions Group. All rights reserved.
WALK-IN INSTALLATION

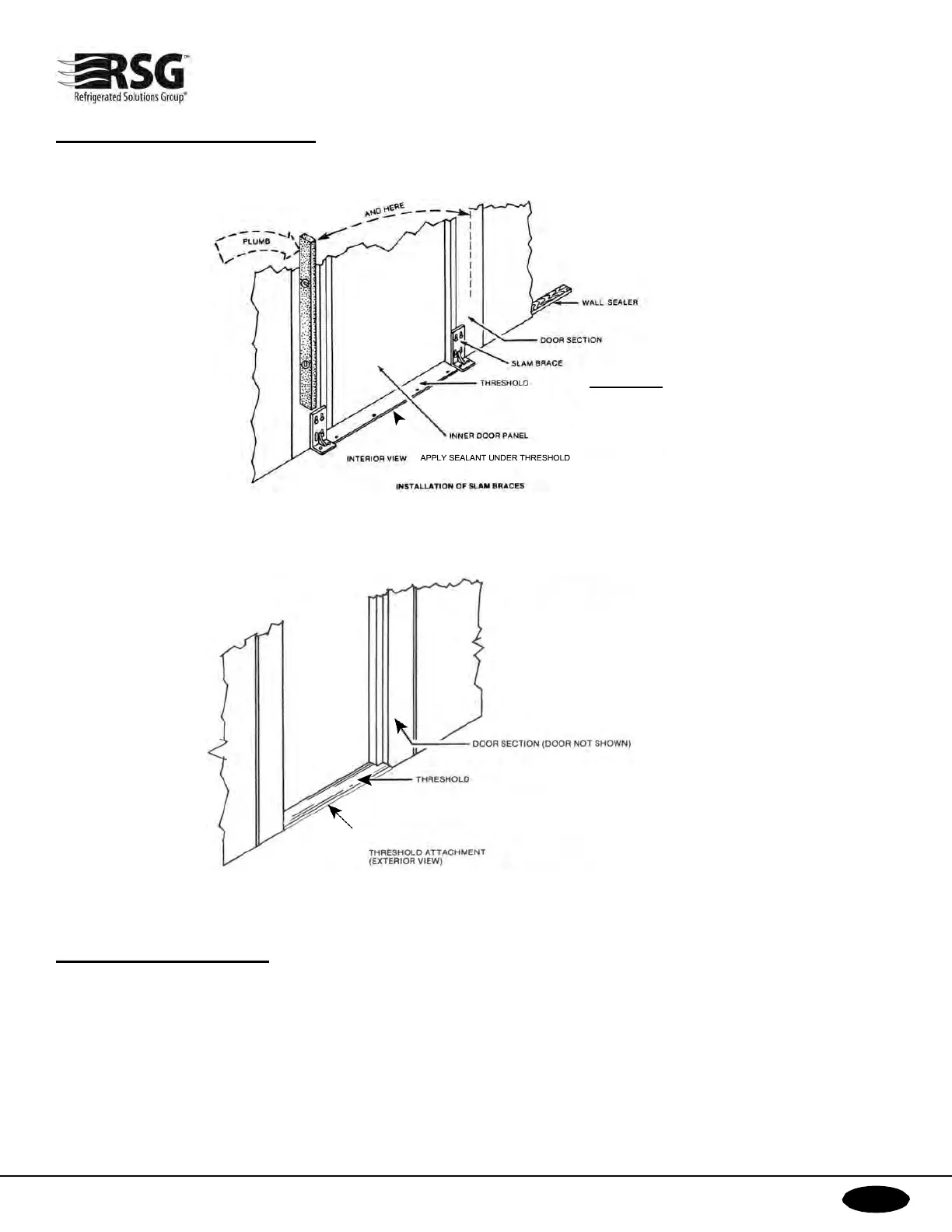

Figure 11
Figure 12
THRESHOLD ATTACHMENT
The threshold was attached at the factory to the lower portion of the door section and it is positioned in such
a manner that no adjustment is required. It must, however, be attached to the building floor to complete the
installation.
IMPORTANT! Make sure that the slam braces are securely fastened to the door section and to the building
floor before attaching the threshold to the building floor. Both edges of the threshold should be attached with
fasteners that are appropriate for the building floor and, since the floor surfaces vary so greatly in composition,
no fasteners are provided and should be obtained by others (Figure 12).
Apply sealant under threshold
Note: Add sealant between
threshold and floor to seal.
IMPORTANT!
MAKE SURE THAT THE DOOR/DOOR
SECTION IS PERFECTLY PLUMB
BEFORE ATTACHING THE SLAM
BRACES TO THE FLOOR.
