12
8/22 Rev. R 132617 ©2022 Refrigerated Solutions Group. All rights reserved.
WALK-IN INSTALLATION
FLOOR INSTALLATION (Shim Leveling Method)
FOR WALK-INS SUBJECT TO LIGHT TO MODERATE LOADS
Locate the highest point within the perimeter lines. A transit or
surveyor’s level or rotary laser level is an ideal instrument to use for
locating this point. When the highest point is located, mark it directly
on the floor and refer to the construction diagram to determine where
the high point is located with respect to the walk-in floor plan.
One of the most important procedures that will be encountered in the
construction of a walk-in with a floor is LEVELING THE FLOOR. It
must be PERFECTLY LEVEL! If it is not, the wall panel will follow the
irregularities of the walk-in floor which will directly affect subsequent
procedures such as latching, panel gasket seal, ceiling panel
assembly among others.

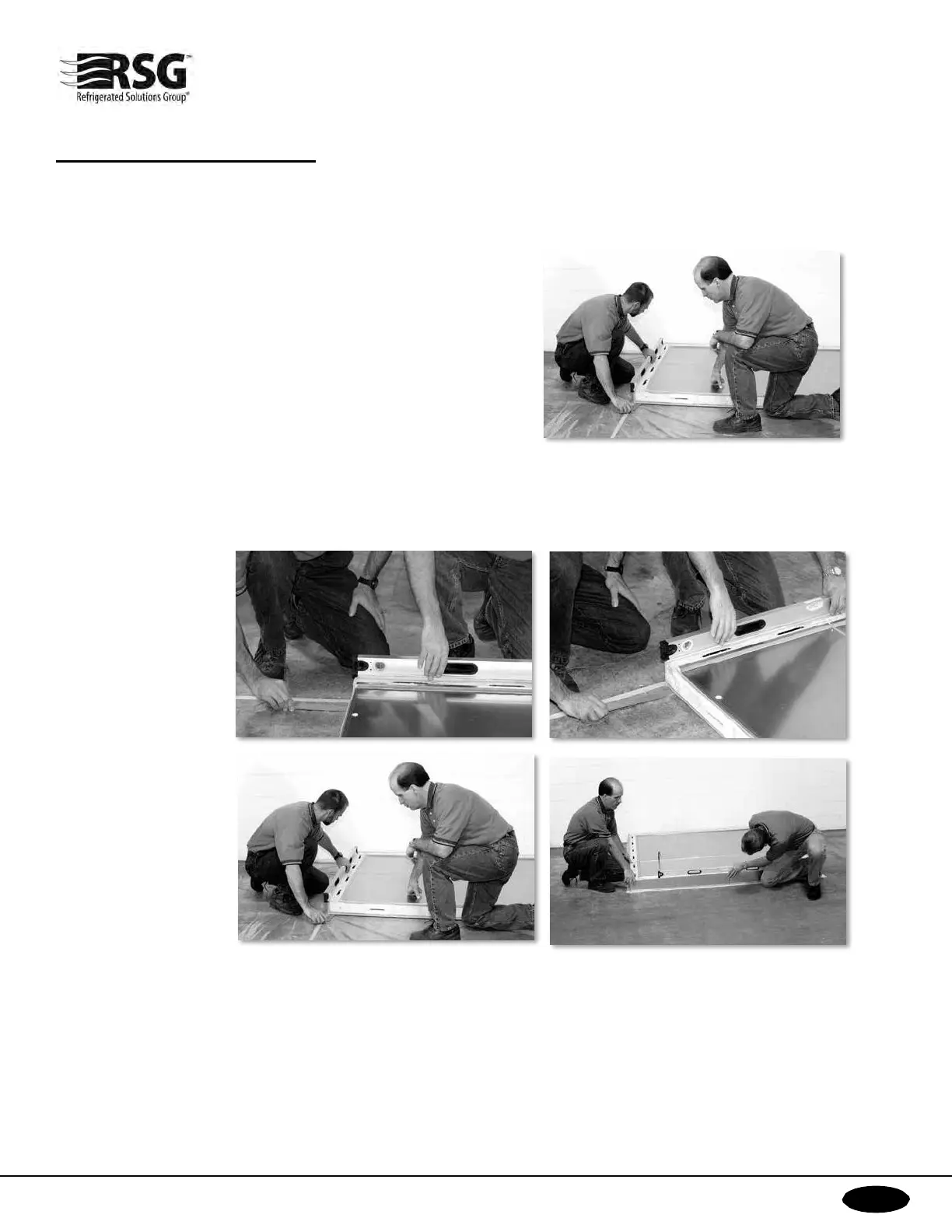

Using the construction diagram as a guide, select the floor panel that will be located directly over the highest point
and place it in that position while observing the drawn outline on the building floor.
After the first floor
panel is positioned, it
must be properly
leveled. To achieve
this, shimming
material of varying
thicknesses must be
used. Cedar building
shingles are ideally
suited for this
procedure.
HOWEVER, OTHER
MATERIALS THAT
ARE RESISTANT TO
ROTTING OR
COMPRESSION ARE
ALSO ACCEPTABLE.
IMPORTANT! EVERY
FLOOR PANEL MUST
BE SUPPORTED ON
ALL FOUR SIDES
AND THE ENTIRE
UNDERSIDE, AT LEAST EVERY 12" BY EITHER THE BUILDING FLOOR OR BY SHIMMING.
After the first floor panel has been leveled perfectly, trim away the excess shim material so that none projects from
the panel at any of the four edges.
From the construction diagram, determine which floor panel will be installed next and where it will be situated on
the floor plan. Prepare shimming material for the second panel at each point where shimming material was used
beneath the first floor panel. The shimming material thickness must be such that it will support the second floor
panel at the same height as the first panel along the entire length of the joint. NOTE: In many cases, the shimming
material will be the same thickness as the adjacent shimming under the first panel.
