18 VC-Grid Safety and Installation Guide
Installing a DMX system using a generic 48 VDC external PSU
DMX/RDM Controller
48 VDC power
DMX link (DMX cable)
Hybrid (DC power and data) link

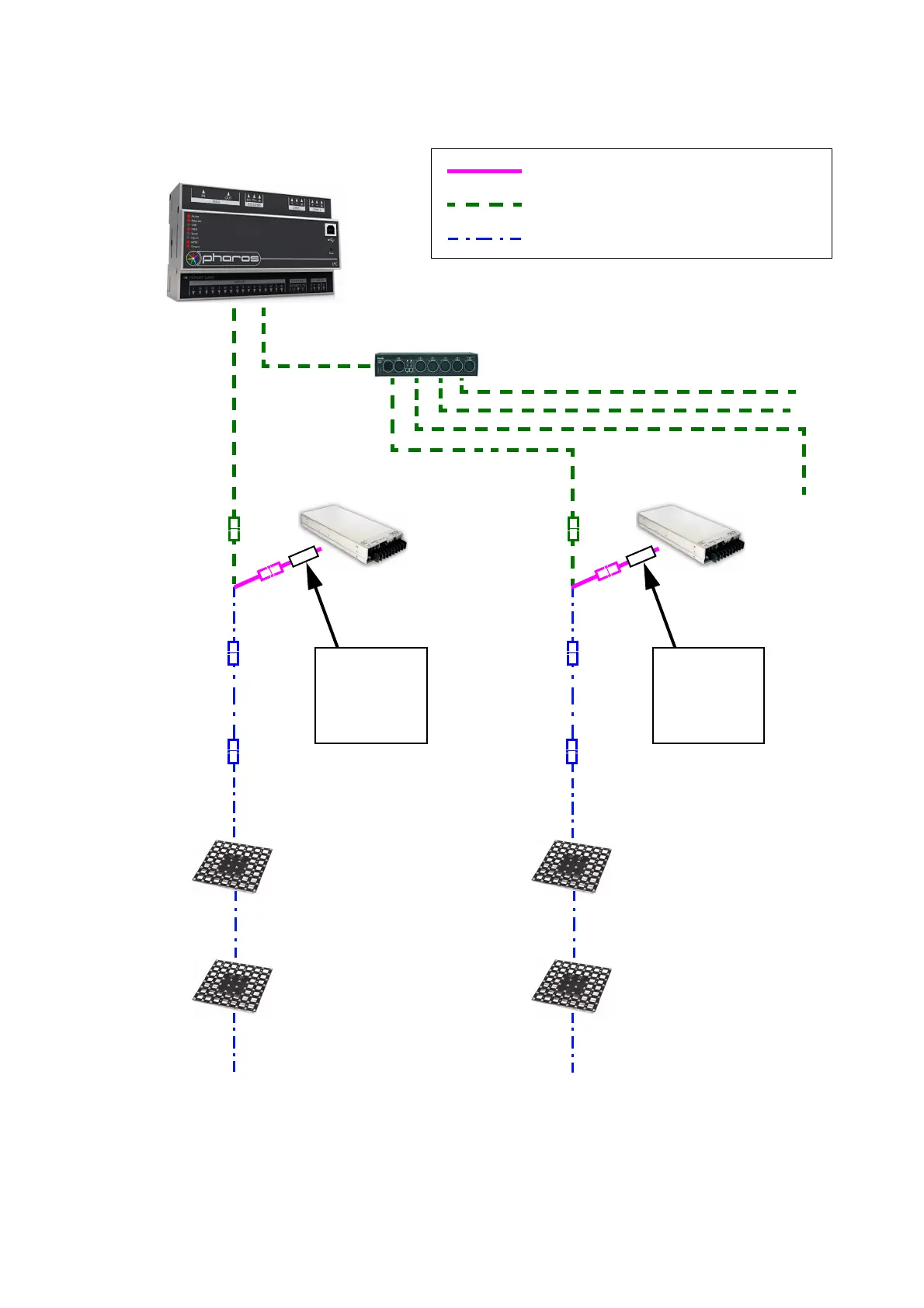

Figure 8: DMX system layout using generic external PSU
DMX/RDM Splitter (if used)
Hybrid DC
Hybrid-to-PCB
adapter cable
lead-in cable
Hybrid extension
cable
(if needed)
Hybrid PCB-
to-PCB cable
Hybrid PCB-
to-PCB cable
Hybrid-to-PCB
adapter cable
Hybrid extension
cable
(if needed)
Hybrid PCB-
to-PCB cable
External PSU
Inline fuse
required if PSU
does not have
8 A overcurrent
protection
External PSU
Inline fuse
required if PSU
does not have
8 A overcurrent
protection
Hybrid DC
lead-in cable
Hybrid PCB-
to-PCB cable
See Table 3 on page 6 for maximum permitted number of modules in chain. Do not exceed
PSU output rating.
