16 VC-Dots™ user manual
Identifying VC-Dot strings in the installation
To see which VC-Dot string in this list corresponds to which string in the installation, click on each string in
the list once to select it, then click on the Identify button at the bottom of the screen. The string in the
installation that corresponds to the selected string in the list will flash a signal so that you can identify it.
Setting DMX Addresses
See Figure 4. To set DMX addresses using the M-PC application, open the RDM View window and click on
Scan to display a list of the elements in the installation. Click in the Address box for each VC-Dot string and
enter the desired DMX address, then press the Enter key to store the DMX address for that string.
Remember that strings with identical addresses will receive the same instructions.
When working with more than one DMX universe, click in the Universe box for each VC-Dot string, enter
the desired DMX universe number, then press the Enter key to store the DMX universe for that string.
Setting strings to grouped or pixel control modes
In pixel mode, the Dots on a string are controlled individually. In string mode, All the Dots on one string are
controlled as one group.
To set a VC-Dot string to pixel or string mode, calibrated or raw, using M-PC, open the RDM View window
and click on Scan to display a list of the elements in the installation. Select the string in the list, then click on
the Properties... button at the bottom of the screen to open the Properties window for that string. Select
from:
• Pixel mode (calibrated) – this is the default setting
• String mode (calibrated)
• Pixel mode (raw)
• String mode (raw)
Calibrated and raw modes
See the section on setting control modes above:
•In calibrated mode, color and intensity levels are evenly matched in different LEDs and different strings
but maximum output is slightly reduced.
•In raw mode, LEDs give maximum possible output but color and intensity levels may be slightly uneven in
different LEDs and different strings.

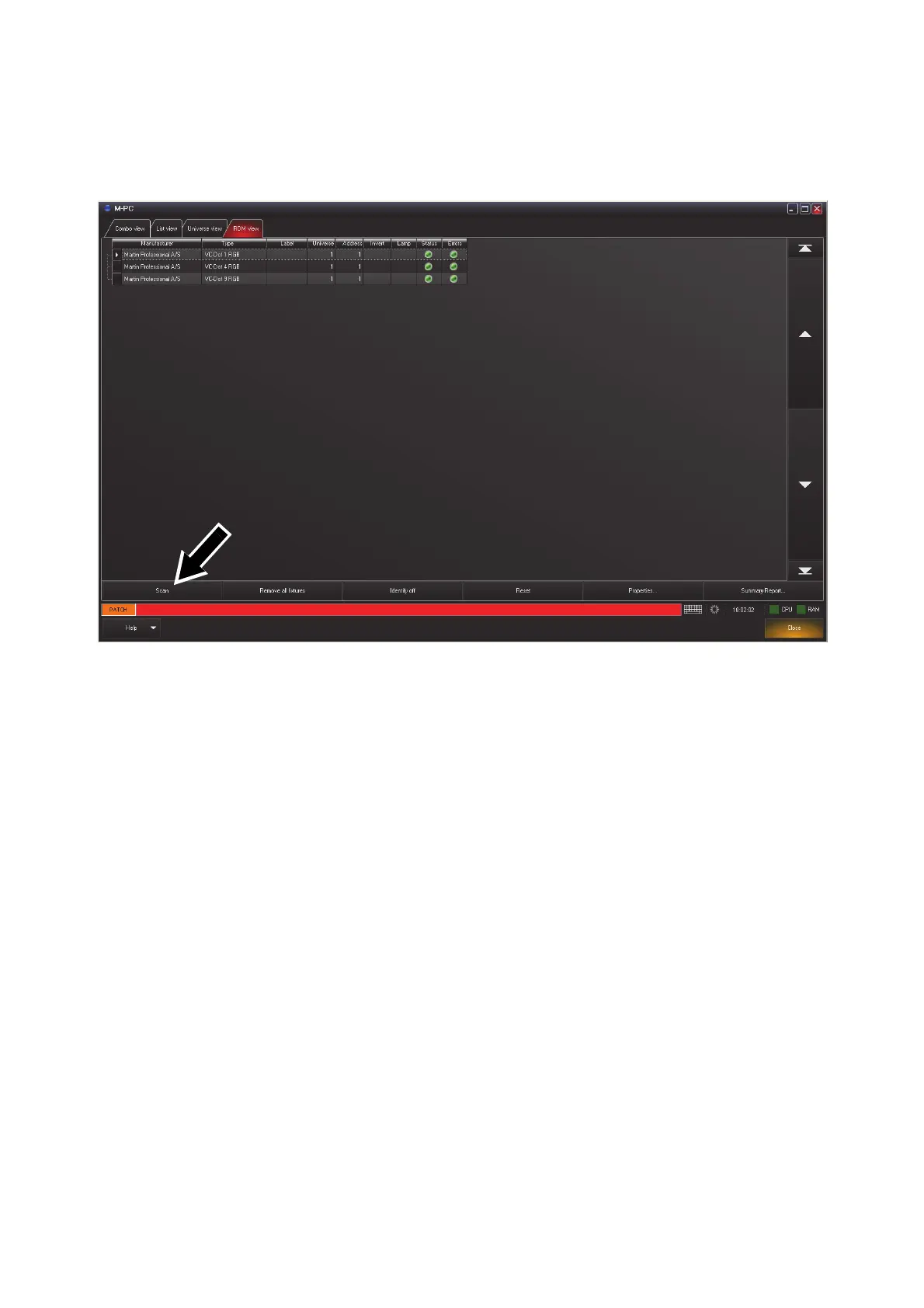

Figure 4: M-PC RDM View
