P3 PowerPort 2000 and 500 IP Safety, Installation and User Manual

Protection from electric shock

Connect P3 PowerPort products to AC mains power within these ranges only:

• P3 PowerPort 2000 – 100-240 V~ (nominal), 50/60 Hz

• P3 PowerPort 500 IP Rental – 100-240 V~ (nominal), 50/60 Hz

• P3 PowerPort 500 IP Install – 100-277 V~ (nominal), 50/60 Hz

Ensure that each of these products is electrically connected to ground (earth).

Use only a source of mains power that complies with local building and electrical codes and

has both overload and ground-fault (earth-fault) protection.

Follow your local AC mains power wire color coding system when connecting to AC mains

power. In the USA and EU, mains power wiring is color coded as follows:

Earth, Ground or

Neutral or N

Live or L

US system

Green

White

Black

EU system

Yellow/green

Blue

Brown

Socket outlets or external power switches used to supply these products with power must be

located near the product and easily accessible so that the product can easily be

disconnected from power.

Provide a means of locking out AC mains power so that power to the installation can be shut

down and made impossible to reapply, even accidentally, during work on the installation.

Isolate the product from power immediately if the power plug or any seal, cover, cable, or

other component is damaged, defective, deformed or showing signs of overheating. Do not

reapply power until repairs have been completed.

Do not expose connectors or cable glands to stresses caused by lengths of cable hanging

from them or by tight cable bends. Support the weight of cables running to and from

products.

The P3 PowerPort 2000 is IP20-rated and is suitable for indoor installation only. Do not

expose this device to rain or moisture. Isolate it from power immediately if the device or

connections become wet.

The P3 PowerPort 500 IP Rental is IP65-rated and is suitable for temporary and permanent

indoor installation and temporary outdoor installation only.

The P3 PowerPort 500 IP Install is IP66-rated and is suitable for temporary and permanent

indoor and outdoor installation.

Do not expose an IP65- or IP66-rated product to high-pressure water jets from any direction.

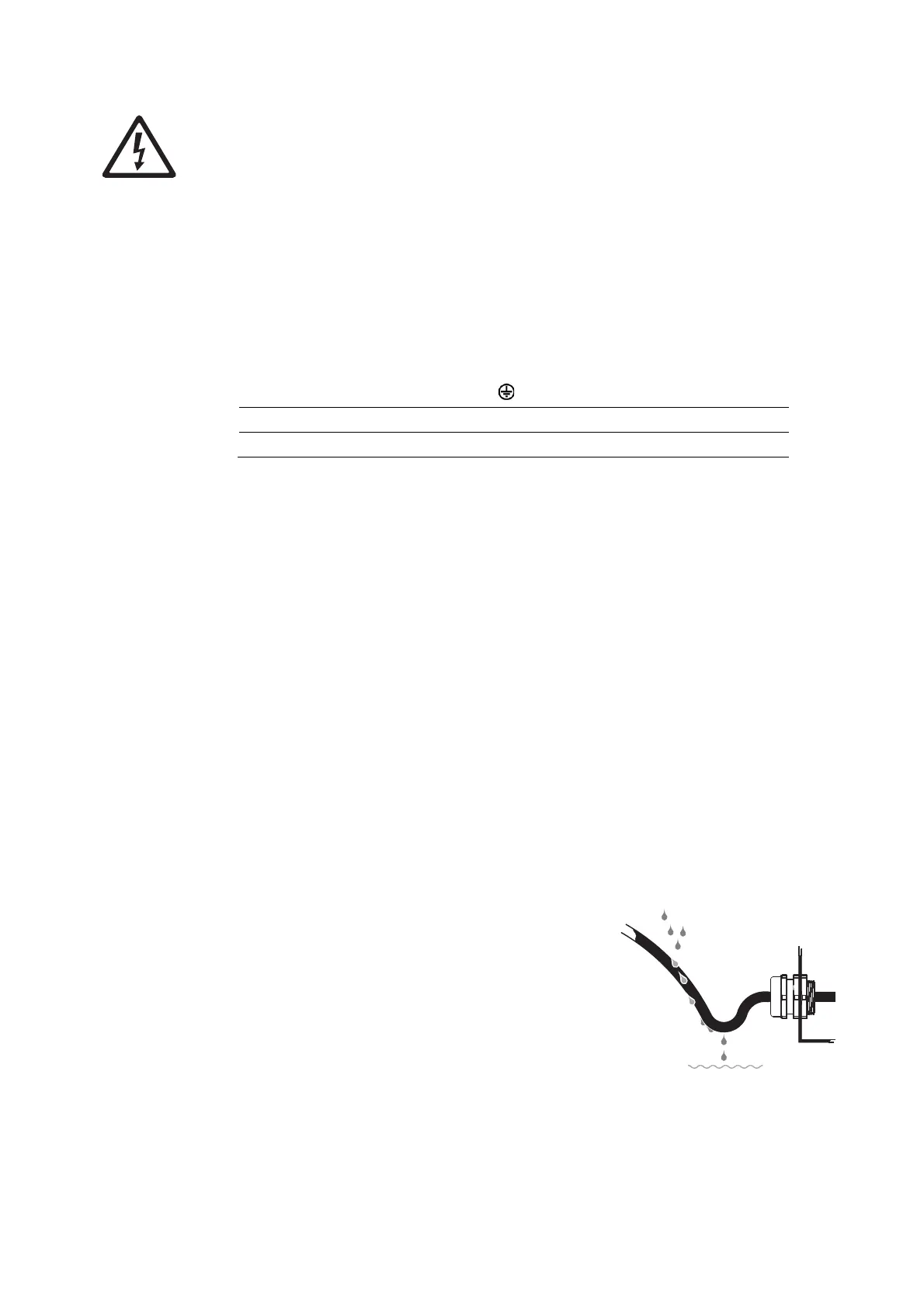

When installing an IP65- or IP66-rated product, create a

‘drip loop’ in cables (see illustration on right) so that they

arrive at cable glands or connectors from below.

Do not allow water to pool around the pressure

equalization valve of an IP65- or IP66-rated product. Make

a visual check of the pressure equalization valve

periodically. If a valve appears to be dirty it may be

blocked. Consult your Martin supplier for replacement.

Before using a P3 PowerPort or accessory device, check

that all power distribution equipment and cables are in

perfect condition and rated for the electrical requirements

of all connected devices.

Disconnect products from AC mains power and ensure that power cannot be reconnected

before carrying out any installation or maintenance work and when the product is not in use.

Drip loop
