Exterior Projection Pro Compact User Manual, Rev. A 31

Updating firmware

The Exterior Projection Pro Compact accepts firmware (fixture software) updates via the DMX/RDM

link if you use an uploader tool such as the Martin Companion application running on a Windows PC.

Connect the PC to the DMX/RDM link via a suitable USB-to-DMX hardware interface such as the

Martin Companion Cable, available from Martin suppliers by ordering P/N 91616091.

The Martin Companion application automatically downloads all currently available firmware versions

for the Exterior Projection Pro Compact when you run the application on a PC that is connected to the

Internet.

Installing a glare shield accessory

A glare shield is available as an optional accessory

for the Exterior Projection Pro Compact. The shield

protects from stray light and can help protect the

fixture from damage caused by the sun shining on

the front of the fixture or from dirt (caused by birds,

for example).

The glare shield can be mounted in four positions

around the front glass.

To install a glare shield:

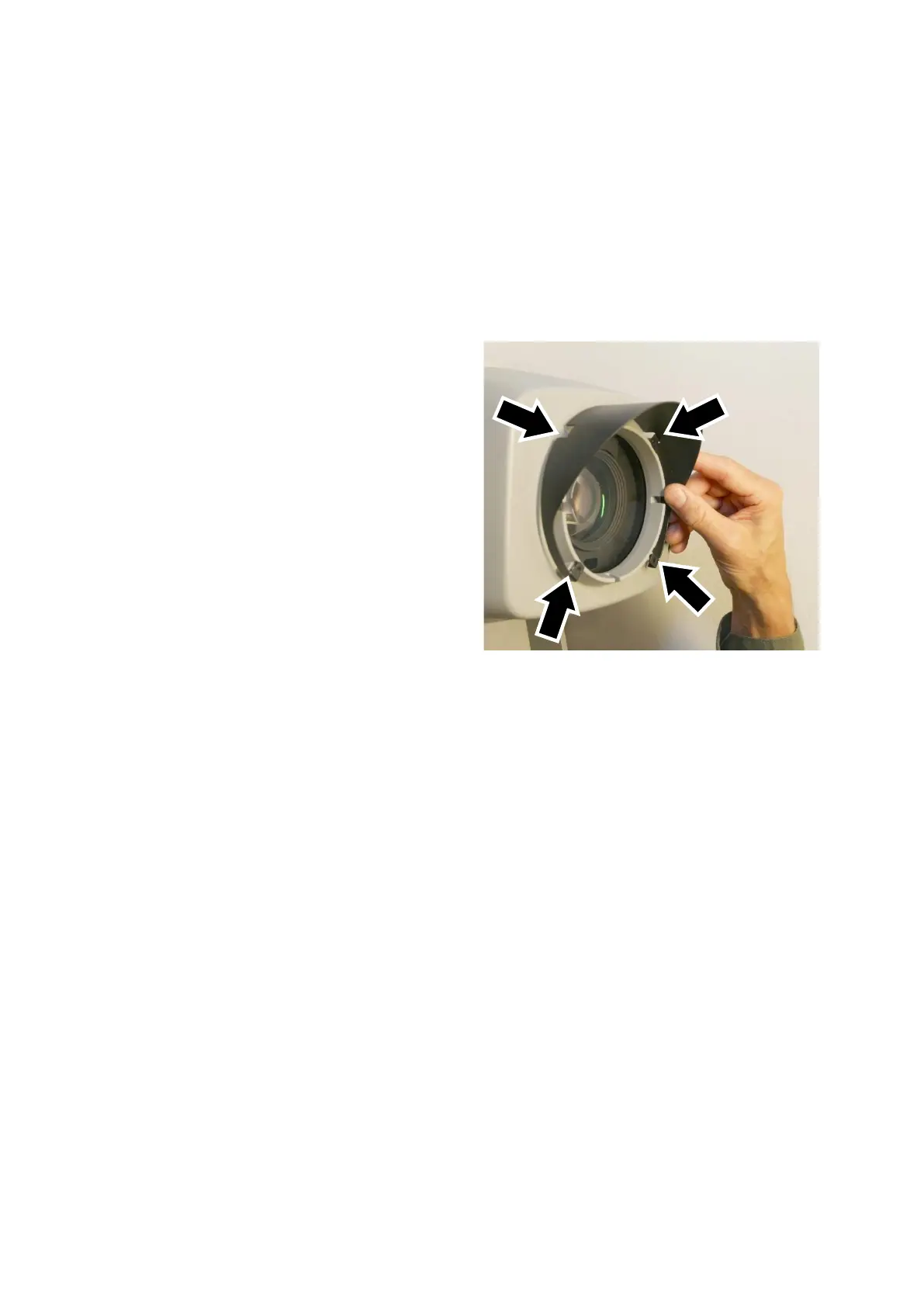

1. See illustration on right. Use a 3 mm Allen key

(hex wrench) to remove the four screws

(arrowed) from the front of the fixture.

2. Fasten the glare shield securely to the fixture in

the position desired re-using the four screws as

shown in the illustration. Use a torque driver

and tighten to a torque of 0.7 – 1.1 Nm.

Installing optional effects modules

See the Safety and Installation Manual included at the end of this User Manual for details of installing

the effects modules that are available as optional accessories for the Exterior Projection Pro Compact:

• Four-slot rotating gobo wheel module

• Single-gobo module with rotating gobo

• Animation wheel module

• Four-blade manual framing module

Removing and reinstalling the top cover

Important! Open the fixture in dry weather conditions only. Use the Drying out procedure and a new

anti-humidity sachet to avoid humidity inside the fixture.

Follow the instructions for removing and reinstalling the effects compartment cover in the Safety and

Installation Manual included at the end of this User Manual.
