Using the Exterior PixLine 27
Using the Exterior PixLine
Warning! Read “Safety information” on page 5 and “Precautions to avoid damage” on page 10 on
before applying power to the Exterior PixLine.
Do not use the Exterior PixLine if the ambient temperature exceeds 55° C (131° F) or falls below -20° C
(-4° F).
P3 display
The Exterior PixLine can display video from all common video sources. The video signal must be sent to a
Martin® P3 controller and then distributed to fixtures. The P3 controller lets you map, configure and control
an installation containing Exterior PixLine fixtures (and other Martin® P3 video display products if you have
them). See the P3 controller documentation for details.
DMX control
The Exterior PixLine can display effects controlled by DMX. Three DMX modes are available:
• RGB mode uses three DMX channels and gives RGB color mixing of all the pixels on a fixture.
• Basic mode uses ten DMX channels and gives RGB color mixing, strobe effects and pre-programmed
dynamic effects.
• Segment mode uses the first seven DMX channels of Basic mode plus three channels per segment for
segment-level RGB color mixing, strobe effects and pre-programmed FX. 320 mm fixtures are divided into
two segments, 1280 mm fixtures are divided into eight segments.
• Pixel mode uses the same ten DMX channels as Basic mode plus three channels per pixel for pixel-level
RGB color mixing, strobe effects and pre-programmed dynamic effects.
See “DMX protocols” on page 32 for full details of DMX control.
An RDM-compatible controller is required so that you can address and configure the fixtures. See the
DMX/RDM controller documentation for details.
Magnetic ‘control button’
A magnetic sensor is embedded inside the Exterior
PixLine behind the label on the back of the fixture (see C
in Figure 1 on page 11). The sensor acts as a control
button. To activate the sensor, swipe a magnet past the
side of the fixture near where the input cable tail enters
the fixture.
You may find it convenient to use the Martin® Test Tool
(see “Accessories” on page 38), which contains a magnet.
Activating the magnetic sensor lets you display the
product’s status, test the LEDs and reset the Exterior
PixLine as explained in the following table.

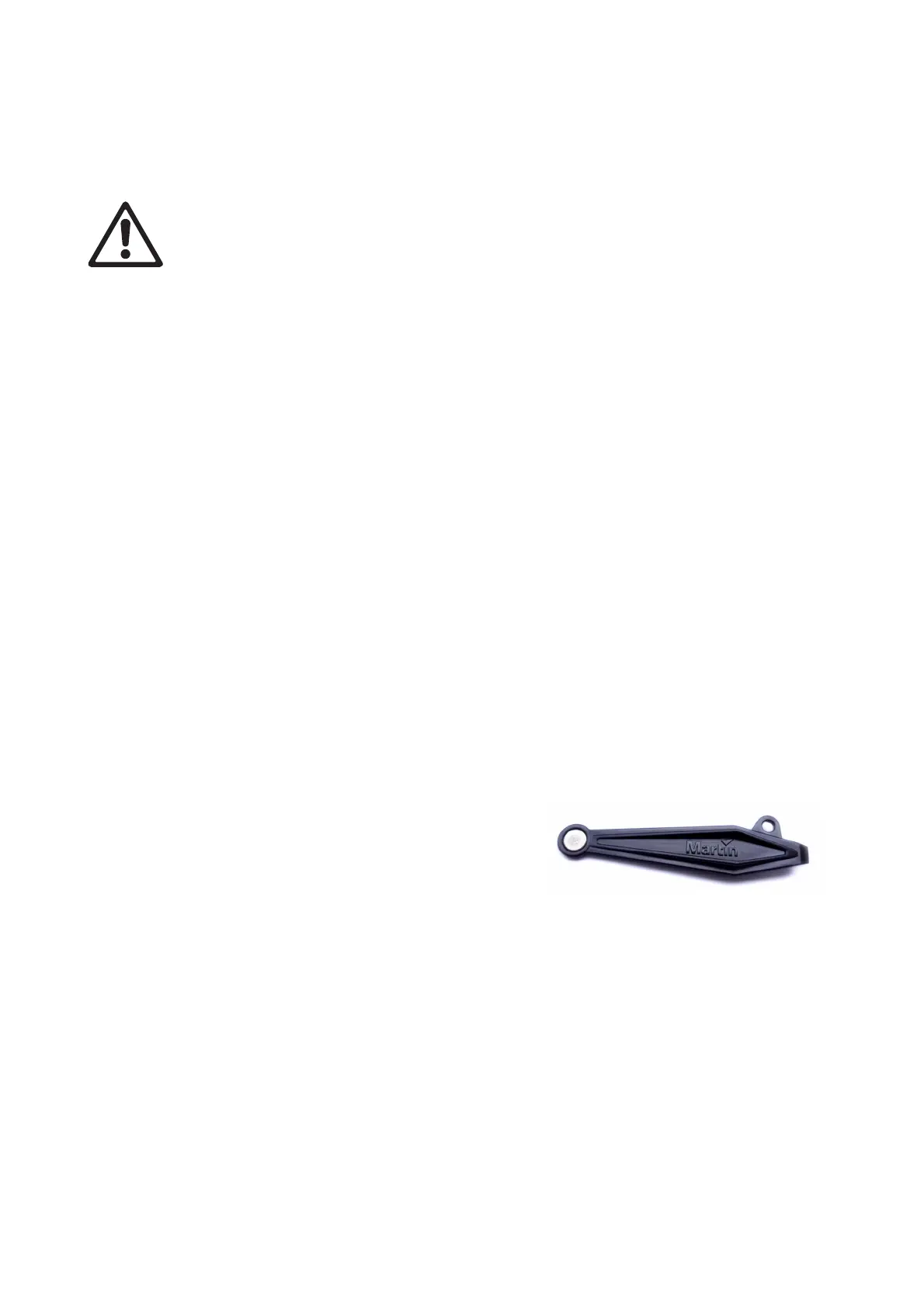

Figure 13: Test Tool with magnet
