16 Exterior PixLine™ User Manual
Installing directly on a surface or structure
You can install the Exterior PixLine directly on a surface or structure without using mounting profiles if you
have access to the rear of the surface or structure so that you can fasten nuts onto mounting bolts.
To install an Exterior PixLine fixture directly on a structure using M6 bolts.
1. Obtain suitable M6 bolts and either self-locking nuts or nuts with
lockwashers. Nuts and bolts must be grade 8.8 strength.
2. Apply a non-conductive coating such as Delta Seal to all parts of the bolts
that will come into contact with the fixture.
3. With reference to “Dimensions” on page 2, prepare 6.5 mm diameter
holes in the structure to take the ends of captive bolts in the track on the
fixture. Position holes so that captive bolts will not interfere with the cable
entry when installed. Provide two holes for 310 mm and 320 mm fixtures.
Provide five evenly spaced holes for 1270 mm and 1280 mm fixtures. In
locations where fixtures will not be exposed to vibration or wind forces,
you can use three evenly spaced holes.
4. See Figure 6. Slide the bolt heads into the track (arrowed) in the fixture
either from the end of the fixture or through the cutouts provided in the
track.
5. Pass the ends of the bolts through the holes in the structure and fasten
the bolts using either self-locking nuts or nuts secured with locking
washers. Tighten the nuts to a torque of 8 Nm.
Custom length fixtures
Custom length Exterior PixLine fixtures are available to special order from Martin®. When installing a
custom length fixture:
• Use the method for leaving gaps for thermal expansion for Exterior PixLine 20 and 40 fixtures described
on page 13. This means that, for each fixture, you must allow a space consisting of the nominal length of
the fixture plus 10 mm if you install fixtures in a line in a location where the ambient temperature may vary.
• Use all the holes provided in mounting profiles for:
- screwing the profile to a mounting surface or structure and
- installing mounting profile locks.

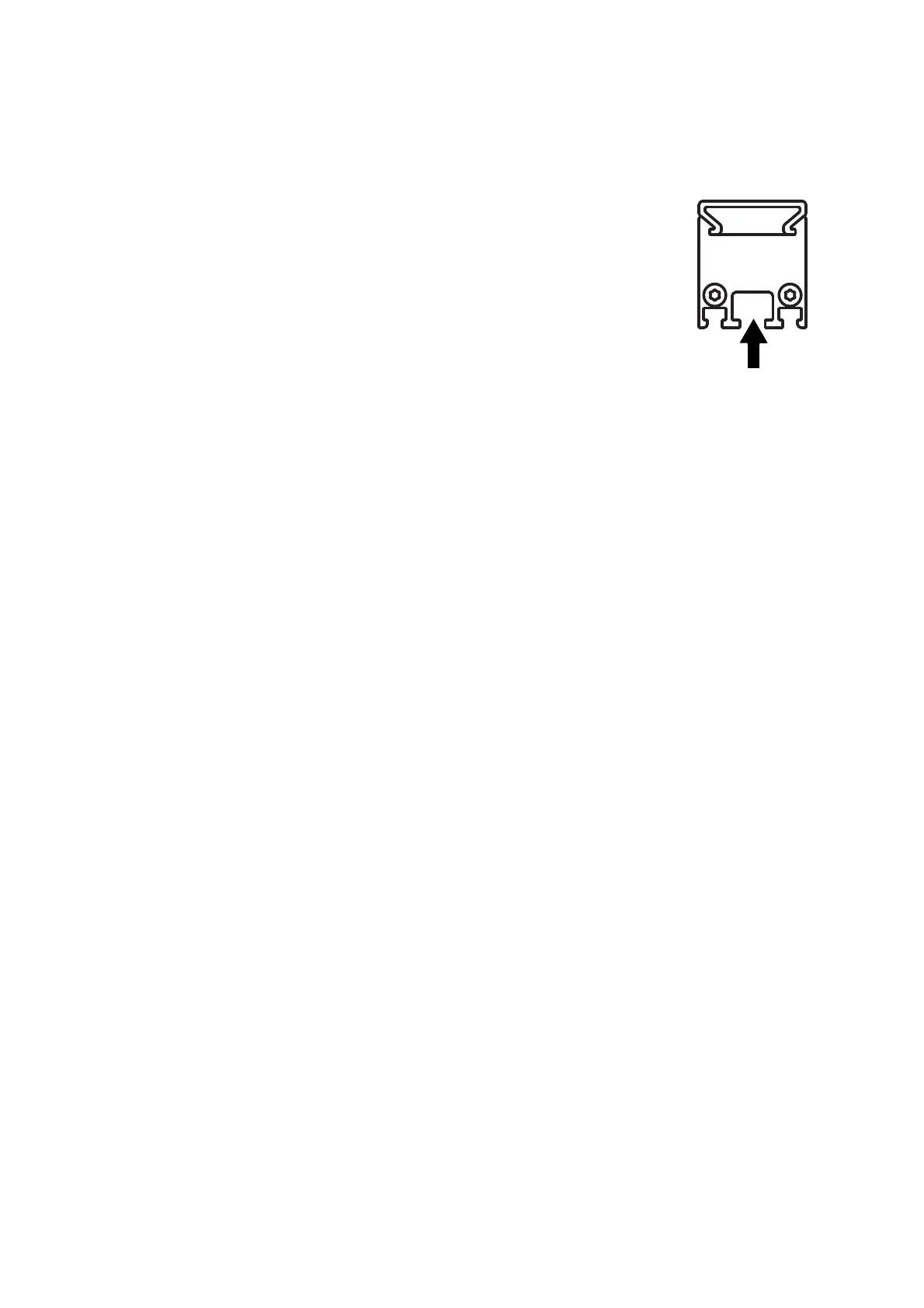

Figure 6: Track for
M6 bolt
