Exterior PixLine overview 11
Harsh environments
The Exterior PixLine has a rugged construction and is designed to withstand such outdoor conditions as
very high and very low temperatures, very heavy rain, etc. However, it is not designed for use in extreme
environments such as air with a high content of salt, chlorine, acid or other corrosive agents. Exposure to
harsh environmental conditions like these may result in deterioration of the product that is not covered by
the product warranty.
Operating temperature precautions
• Operating the Exterior PixLine in an ambient temperature that exceeds the specified maximum of 55° C
(131° F) for showing average video content may reduce the lifetime of the product.
• Exterior PixLine fixtures have an internal thermal sensor. If the sensor measures excessive temperature,
a thermal protection cutout shuts down the fixture. The fixture will not function normally again until the
temperature has fallen to a safe level.
• When using a Martin® P3 System Controller you can enable "thermal throttling" functionality. This feature
gradually dims fixtures if they get hot, avoiding full thermal shutdowns.
Sealing unused connectors with blanking caps
Blanking caps for female BBD connectors can be ordered separately in sets of 10 (see “Connectors” on
page 38). Install blanking caps on all unused female BBD connectors to seal them against water and dirt,
otherwise short-circuits and damage may occur.
Exterior PixLine overview
WARNING!
• For safety instructions see user guide.
• Disconnect from mains before servicing.
• Refer servicing to qualified service personnel.
• Maximum ambient temperature T
a
= 55°C.
• Risk of fire and electric shock.
• Not for household use.
• Secure fixture with safety cable when suspending.
• Do not connect or disconnect live power cables.
Serial no. label
IP 66
SUITABLE FOR WET LOCATIONS
CONVIENT AUX EMPLACEMENTS MOUILLÉS
See user manual before
connecting to THRU connector.
Do not link products in a chain
that will exceed 345 W total wattage.
48 V INPUT / 48 V OUT
Test /
Reset
This device complies with part
15, class A of the FCC rules.
Supplier
label
Calib.
label
Swipe Magnet Once:
Display status
Swipe Again: Step
through test patterns
Swipe and Hold till
4 LEDs Blue:
Reboot
Swipe and Hold till
4 LEDs White: Factory Reset
Olof Palmes Allé 18
DK-8200 Aarhus N
Designed in Denmark
Assembled in Hungary

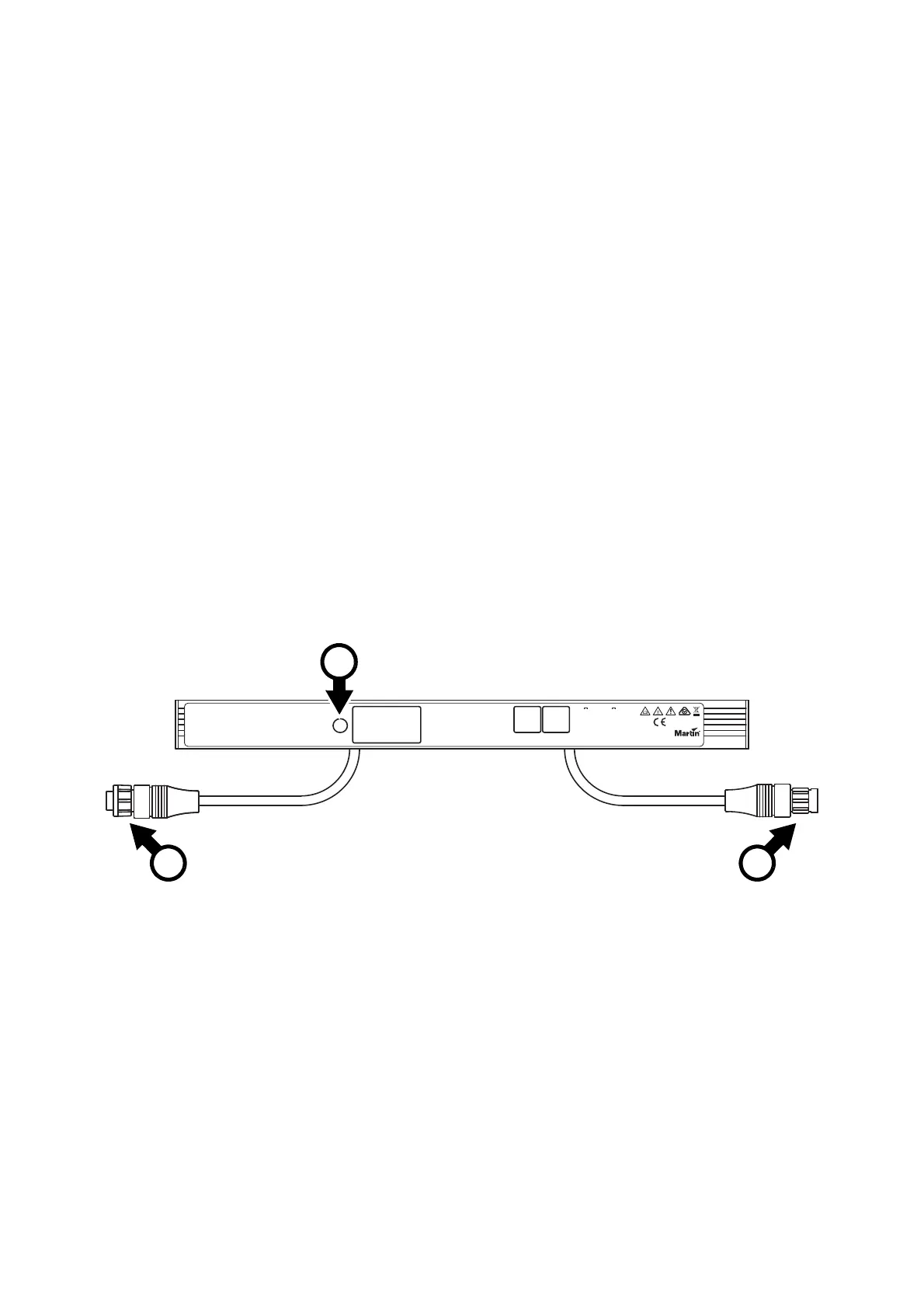

Figure 1: Overview
A - 48 VDC power + video data male BBD-type input connector
B - 48 VDC power + video data female BBD-type output (thru) connector
C - Magnetic control sensor (encased inside fixture) – can be activated using accessory tool
320 mm fixture illustrated
A B
C
