LE100/LE200 User Guide V1.0
8
LE100/LE200 USER GUIDE

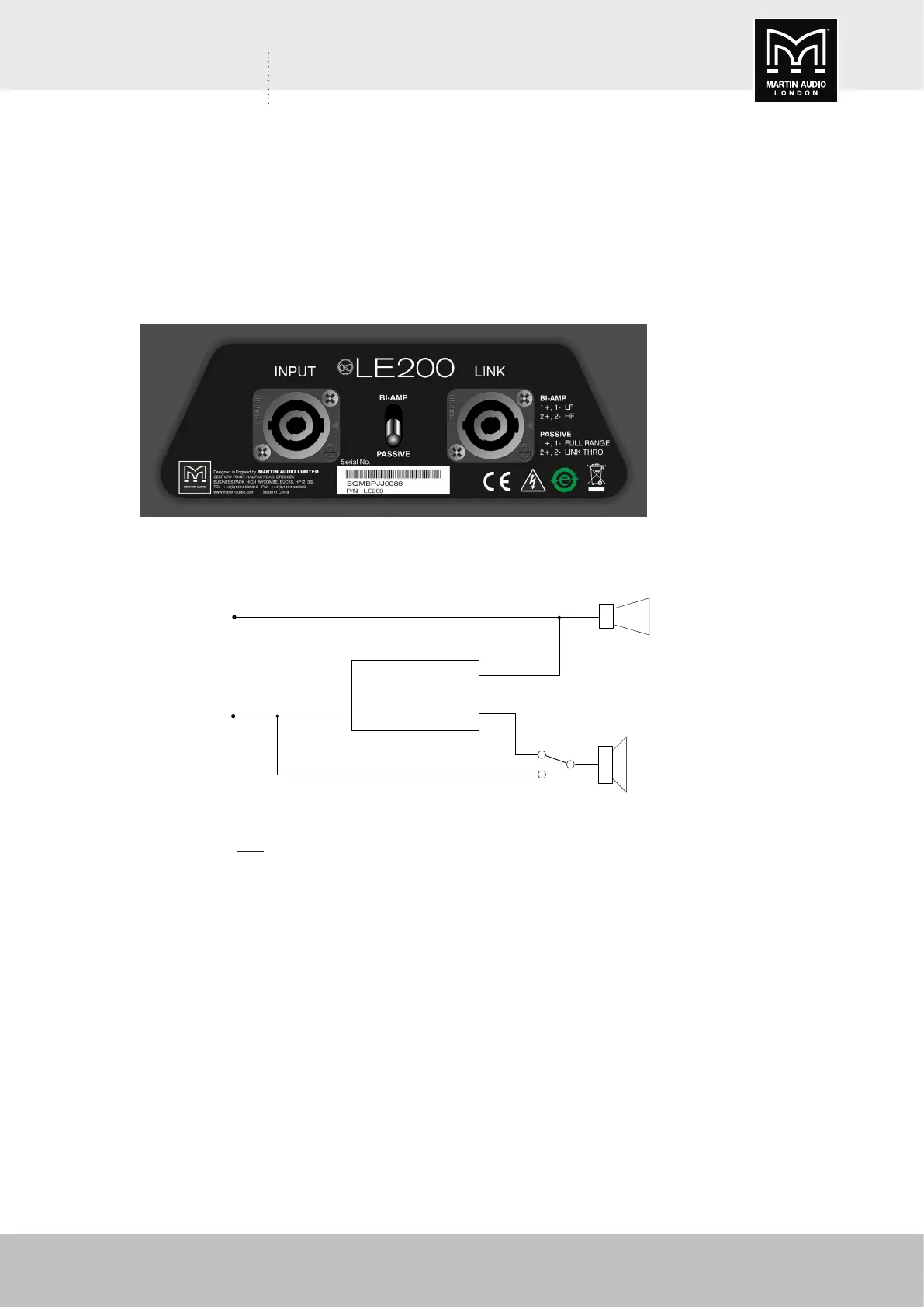

LE200 ONLY – CROSSOVER MODES
The LE200 may be bi-amped if wished. Configuration data for external electronic crossovers or
system controllers can be found at “Speaker Parameters”).
The LE200 may be switched between passive (full-range) mode and bi-amped mode with the
switch on the recessed front panel between the two connectors.
HF DRIVER
LF DRIVER
PASSIVE CROSSOVER
MODE SWITCH
HF OUTPUT
LF OUTPUT
INPUT
NL4 pins 1+/1-
Full Range (Passive mode)
LF Input (Bi-amp mode)
NL4 pins 2+/2-
HF Input (Bi-amp mode only)
INPUTS
PASSIVE
ACTIVE
• Set the switch to PASSIVE if driving the LE200 with a full-frequency range amplifier
channel, and wire only the 1+ and 1- pins of the NL4 connectors.
• Set the switch to BI-AMP if using an external electronic crossover or system controller in
conjunction with separate amplifiers (or amplifier channels) for LF and HF. Wire the LF
amplifier channel to pins 1+ and 1-, and the HF amplifier channel to pins 2+ and 2-.
