Wall mounting
You can wall mount the BlacklineQ full-range
loudspeakers using an optional accessory wall bracket.
Each bracket consists of two parts:
▪ Awall section, which mounts to the wall.
▪ Acabinet section, which attaches to the loudspeaker.
During installation, a horizontal bolt on the cabinet
section slots into a notch on the wall section. This clever
design supports the weight of the loudspeaker, while you
secure the two sections of the bracket.
There are three sizes of wall bracket available:
▪ WB6/8 for Q8, Q26 and Q44.
▪ WB10/12 for Q10 and Q12.
▪ WB15 for Q15.
The difference between these brackets lies in their size
and strength. The WB10/12 and WB15 models are larger
and more robust to accommodate the heavier weight of
the Q10, Q12, and Q15 loudspeakers. Despite the size
differences, the installation procedure is the same for all
three bracket types.
Each bracket providestilt and pan adjustment, allowing
precise positioning of the loudspeaker.
In addition to the BlacklineQ series, these brackets are
compatible with the following Martin Audio ranges:
▪ BlacklineX
▪ CDD
▪ CDD-LIVE
▪ FlexPoint
▪ Adorn (A80T only)
Landscape or portrait orientation
You can wall mount Q8, Q10, Q12, and Q15 loudspeakers
in landscapeorportrait.
When mounting in landscape, you must
rotate thehorn (page 11) to maintain the
correct dispersion and performance.
To wall mount BlacklineQ

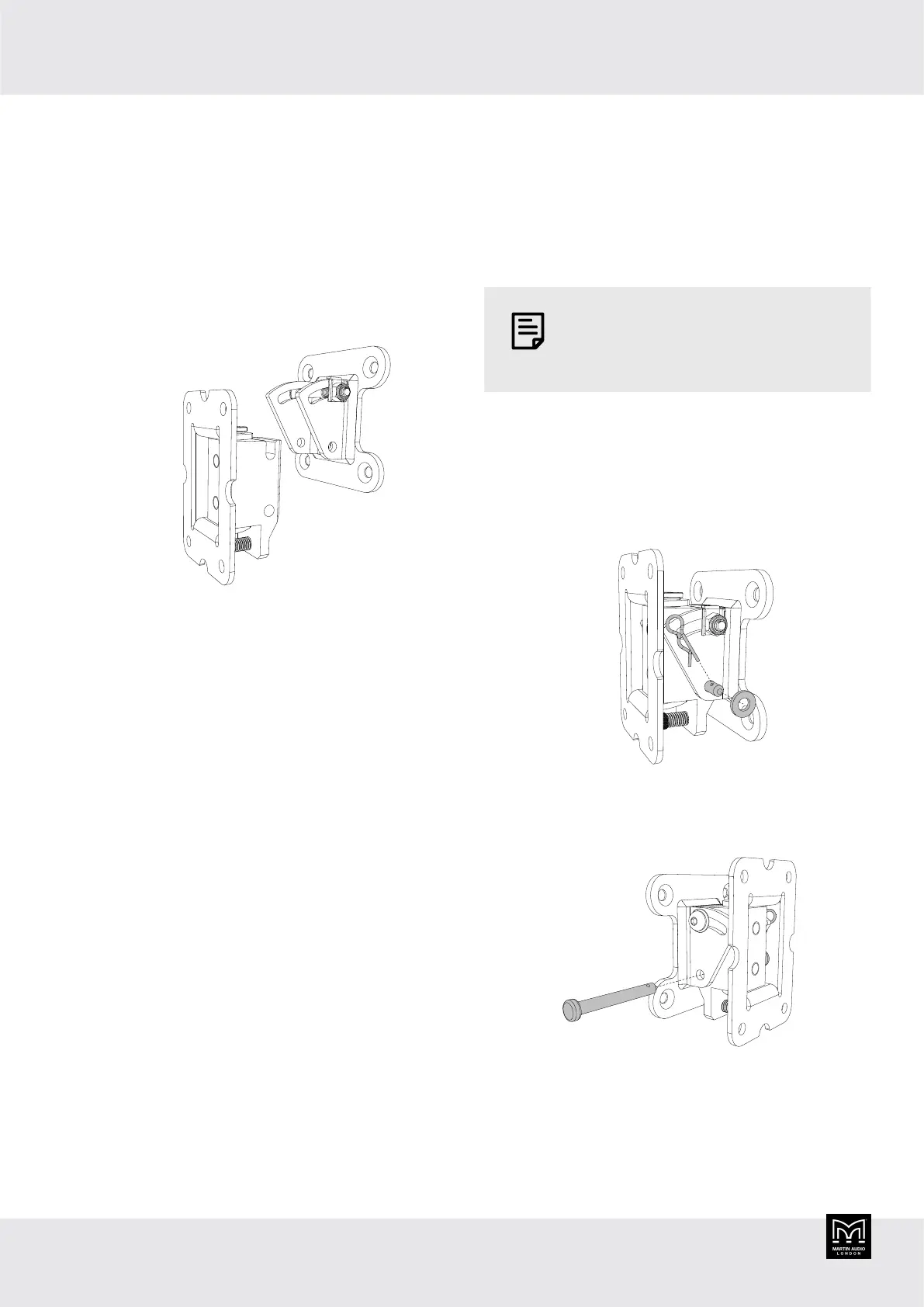

1. Depending on your bracket, either remove the R-clip
and washer (as shown below) or the nut on the lower
bolt. Don't remove the upper nut and bolt in the
curved slot.
2. Remove the lower bolt (as shown below):
3. Separate the two parts of the bracket.
4. Attach the wall section to the wall. Note that the
wall section is rectangular while the cabinet section
