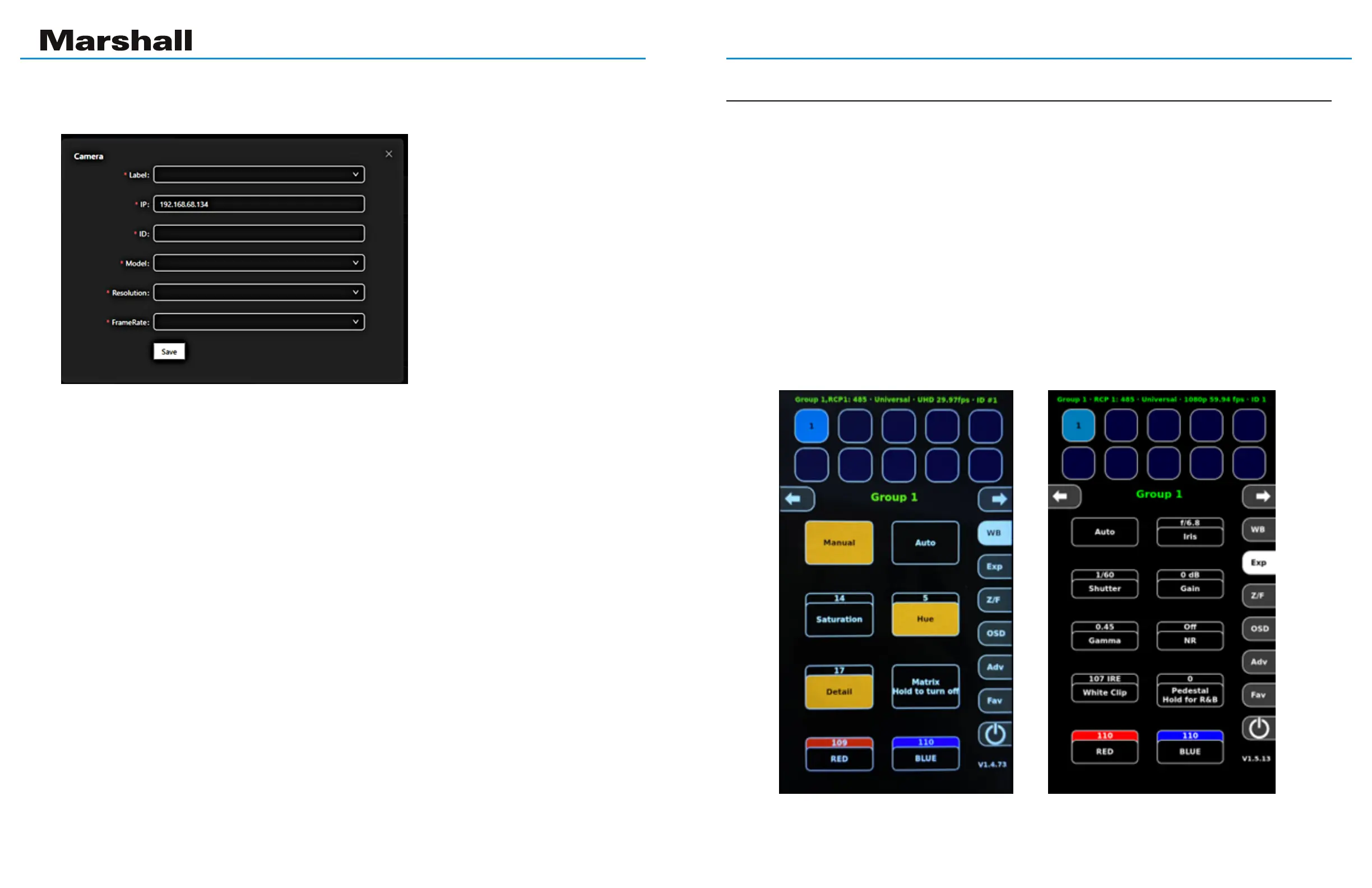

RCP-PLUS User Manual

Step 4. Click that to assign the camera to a button.

This pop up form will appear:

Step 5. Enter the following information:

Label: Enter a number or letter to appear on a camera button

IP: The camera IP address appears here automatically

ID: Enter any single number or letter (future application)

Model: Select the camera model type from the pulldown list

Resolution: Select the desired video output format

FrameRate: Select the desired video output frame rate

Step 6. Click the Save button

Conrmation. Check that the RCP-PLUS shows the camera label in the assigned button.

Continue these steps until all cameras have been assigned.

Whennished,clicktheLogout button in the upper right corner of the page

Chapter 7: Screen Descriptions

Camera control functions are organized by buttons on the right side of the display. The images below are

representative examples of the types of controls that are available. The actual screen appearance may

be different based upon the camera model that has been selected.

Adjustmentsaredividedintotwocolumns.Eachcolumnhasanadjustmentknobbelowit.Twofunctions

maybeselectedatthesametimeandadjustedusingtheknobassociatedwiththatcolumn.For

example,ShutterSpeedandGainmaybeselectedandadjustedatthesametime.

Sometimesabuttonwillappearingray,indicatingthatthefunctionisnotavailable.Thiscanappearwhen

the camera model does not support the function or when the function has been overridden by another

control.AnexampleofthiswouldbewhenWhiteBalanceisinAutoMode,RedandBlueleveladjustments

will be in gray.

7.1 WB White Balance

All controls associated with camera color

processing appear on this page.

7.2 EXP Exposure

This page controls how the camera

processes varying light levels.
