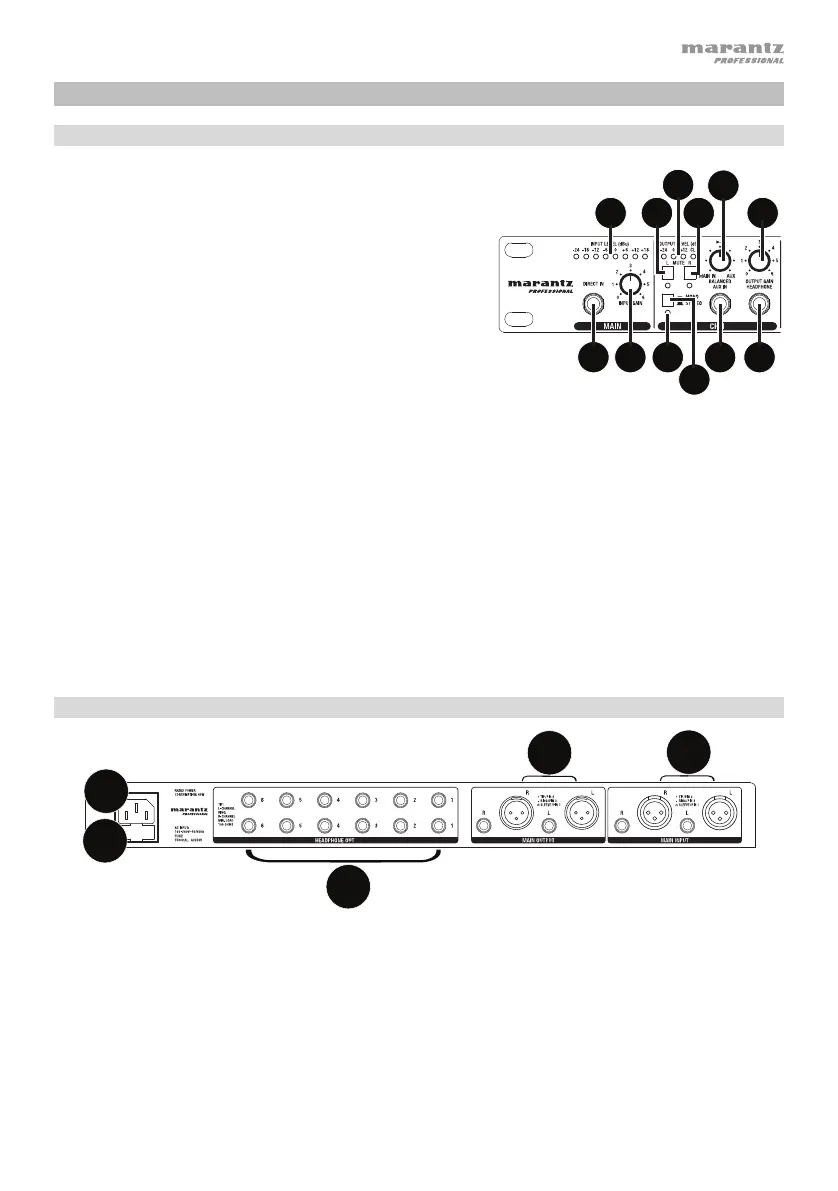

Features
Front Panel
1. Direct Input: Feeds an external audio source directly into
the main signal path.
2. Input Gain Control: Controls the signal level going to the
Main Inputs.
3. Input Level Meter: Displays the signal level coming from
Main Inputs. For the best quality of input signal, the LED
should range from 0 to +6 dBu. If the Clip LED (in the
Output Level Meter) is always on, reduce the input level
using the Input Gain Control.
4. Aux Input: Provides a separate stereo input signal which
can be mixed with the Main Input signal.
5. L Mute Switch: Mutes the left input signal.
6. R Mute Switch: Mutes the right input signal.
7. Mode Switch: Switches the operational mode between mono and stereo.
8. Mono LED: This LED lights up when the unit is in mono mode. When the LED is off, the unit is in stereo
mode.
9. Headphone Output: 1/4” TRS phone jack used to output the signal of the individual channel. There are
also 12 additional headphone outputs (two for each channel) on the rear panel.
10. Balance Control: Sets the amount of the signal coming from the Aux Input and Main Input. When a
signal is fed into the Aux Input, the balance control will regulate the ratio of the Main Input and the Aux
Input signals.
11. Output Gain Control: Adjusts the output level of the individual channel.
12. Output Level Meter: Displays the output signal level. If the Clip LED lights up, turn down the input gain
control and/or the individual output gain control to avoid distortion.
Rear Panel
13. Power Connector: Use the included power cable to connect this connector to a power source. Please
check the voltage accepted by the unit and the voltage available from your power source before
connecting it.
14. Fuse Holder: If the fuse blows, replace it with a fuse of the same type.
15. Main Input Connectors: Balanced 1/4” TRS and XLR connectors used to input the stereo signal.
16. Main Output Connectors: Balanced 1/4” TRS and XLR connectors used to output the main signal. Use
these connectors to link several headphone amplifiers together.
17. Headphone Out (1-12): These are 12 additional headphone outputs (two for every channel) wired in
parallel with the output available on the front panel.
